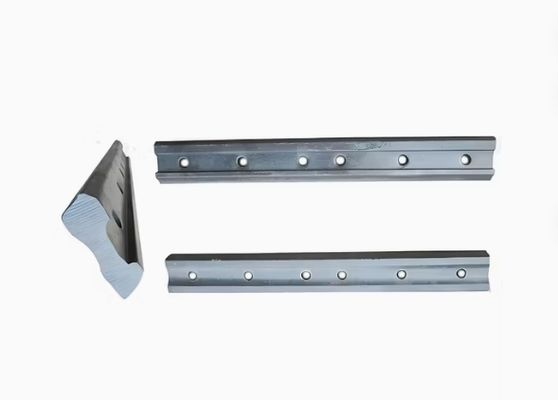

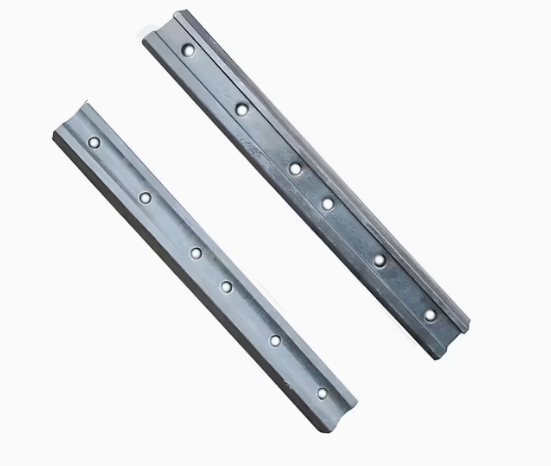

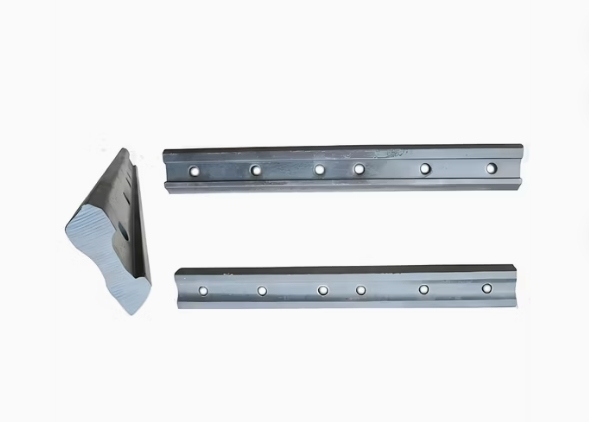

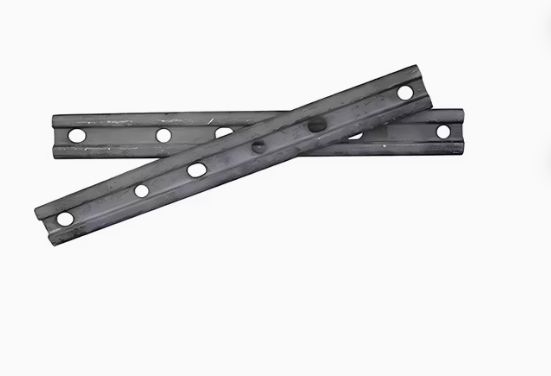

UIC Standard Railway Parts & Accessories High-Strength Fishplates

UIC Standard Railway Parts & Accessories High-Strength Fishplates

Brand Name:	Kingrail
Model Number:	UIC
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	1-30 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CB, CE, EMC, RoHS SABER

Corrosion Resistance:

Strong

Compatibility:

Fits Various Rail Sizes

Standard:

Uic, Arema, ASTM, BS, Tb

Weight:

Varies Depending On Size

Installation Method:

Bolted

Hole:

4, 6 Holes

Color:

Silver

Size:

Standard

Application:

Railway Track Connection

Material:

Steel

Usage:

Permanent

Item:

Carbon Steel Railway Track

Shape:

Special-shaped

Type:

Joint Bar

Durability:

High

Production:

OEM

Surface Treatment:

Galvanized, Painted Or Customized

Design:

Simple

Yield Strength:

≥ 500 MPa

Dimension:

As Per Customer's Drawing

Wheel Diameter:

1-1450mm

Packaging Details:

standard export package, or as per customer request

Supply Ability:

1800000 Tons per year

Highlight:

UIC standard railway fishplates

high-strength railway fish plates

railway track fishplates with warranty

Product Description

Basic Information

Certification

ISO9001

Type

Rail Joint

Standard

Uic864-4 & Uic864-8

Material

Chinese Steel Grade 40#

Size(Kg)

U79-Uic54,U85-Uic60

Tensile Strength RM

550-650MPa

Elongation a

≥18%

Transport Package

Carton Packing

Specification

Customized

Trademark

Kingrail

Origin

Chongqing China

HS Code

7302400000

Production Capacity

10000000

Product Description

Rail Joints, also called railway fish plate or joint bar, splice bar, is a metal joints bar connected to the ends of two rails to bond them together. A quality rail joint bar can largely reduce the impact of wheels to the jointing sections of the rail tracks and increase the continuity and steadiness of the train when passing through the jointing sections. This rail components is a guarantee to railroad transportation safety no matter it's light or heavy.

Standard	UIC864-4 & UIC864-8
Material	Chinese Steel Grade 40#
Size(kg)	U79-UIC54,U85-UIC60
Tensile Strength Rm	550-650Mpa
Elongation A	≥18%

Product Advantage

Good Raw Material: Strictly control the production standard to control the error within the tolerable range of uniform force.
Careful Workmanship: Strict selection of materials, raw materials layer by layer screening each time is the source of on-site selection of fine forging.
Various Specifications: Products can be customized according to customer engineering needs, fast proofing and timely delivery.
