Product Details:
|
| Standard: | ISO9001, ISO14001, OHSAS18001, AAR, IRIS, TSI | Material: | ER7 /8 / 9 AAR-C GOST |
|---|---|---|---|
| Parts: | 2 Wheels+1 Axle+ Bearing Axle Box | Usage: | Freight Car, Wagons, Locomotive, Metro, Light Rail |
| High Light: | Bogie Locomotive Train Wheels,ER7 Locomotive Train Wheels,ER8 Rail Wheel Set |
||

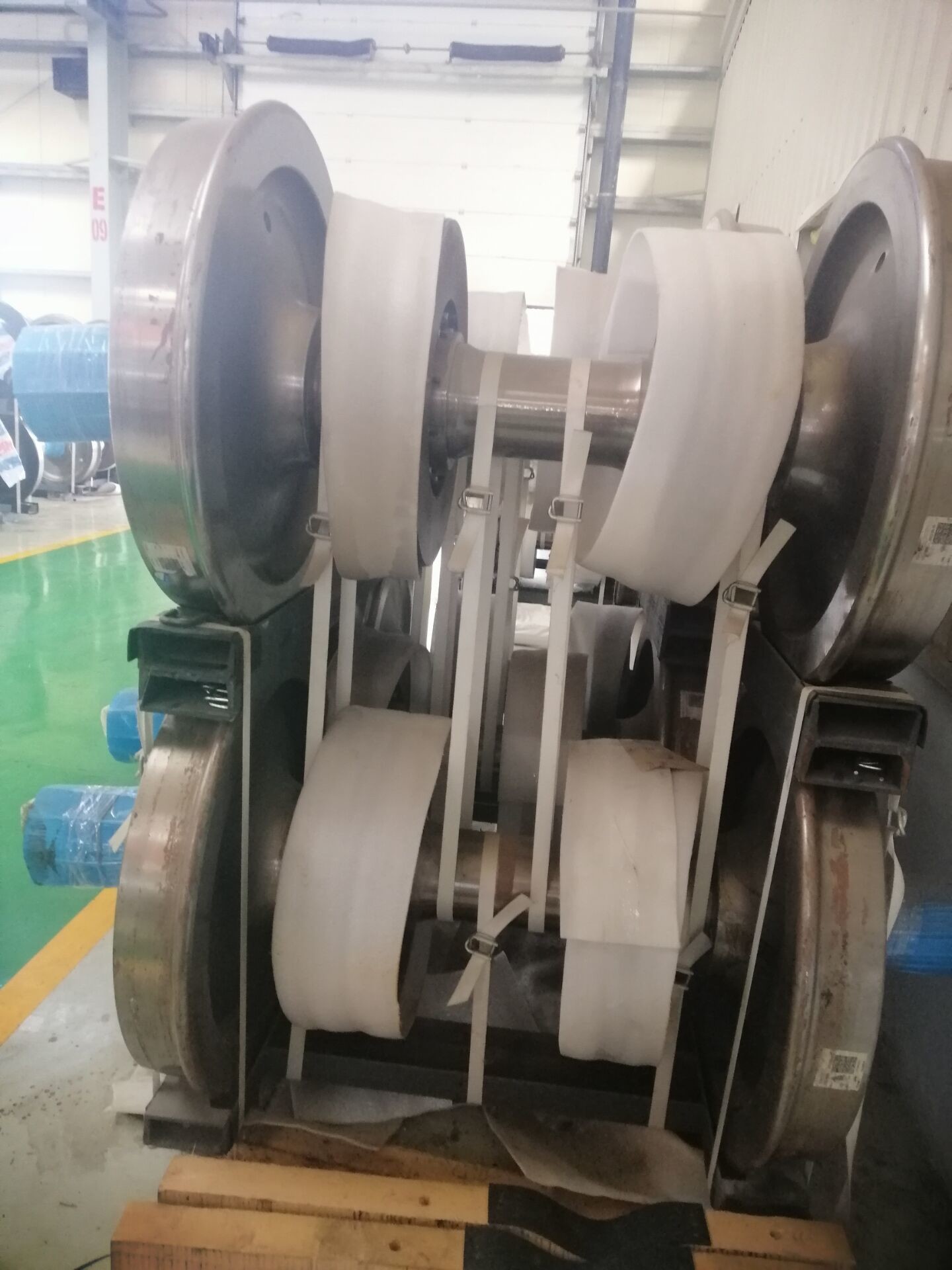

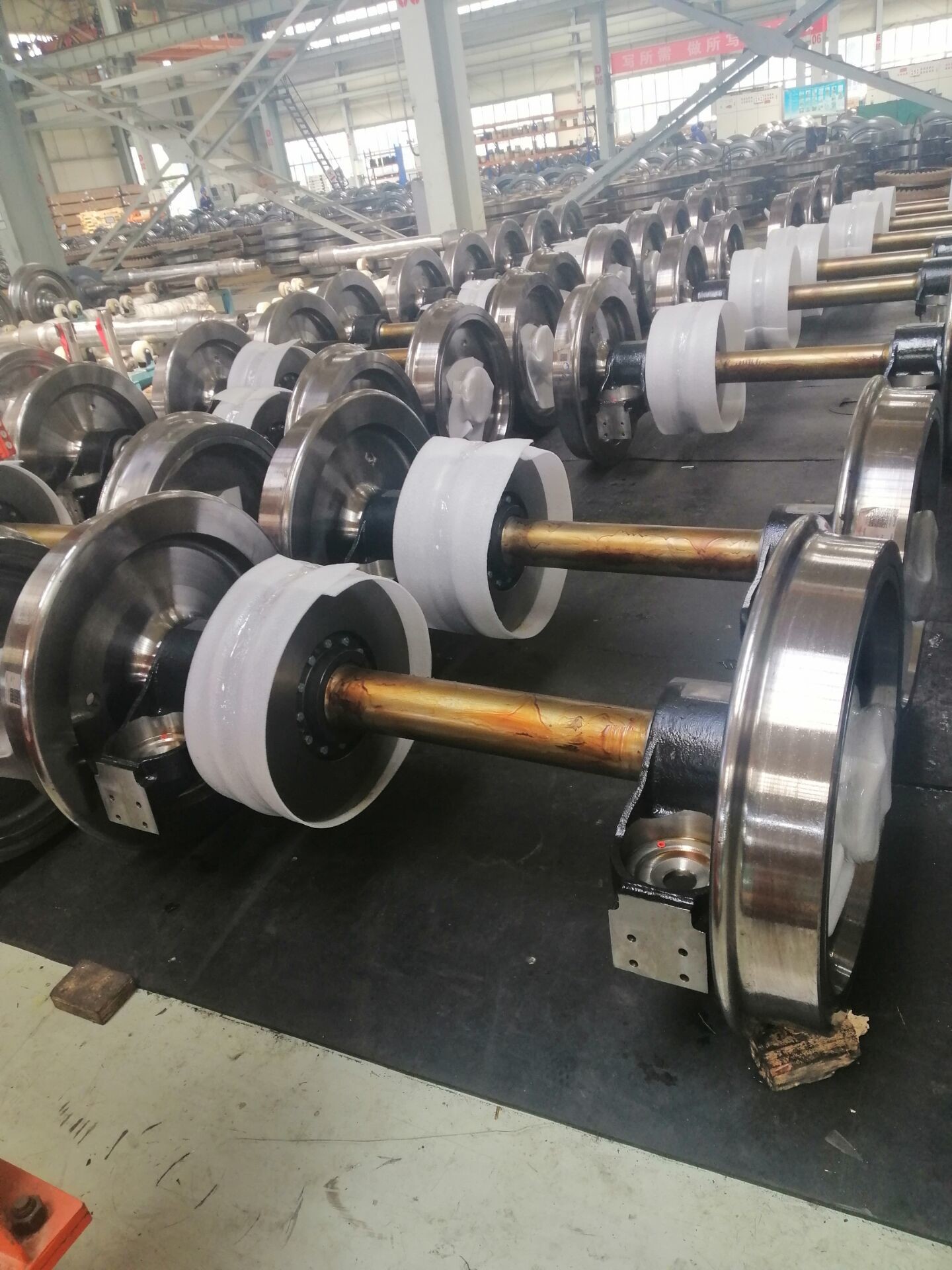

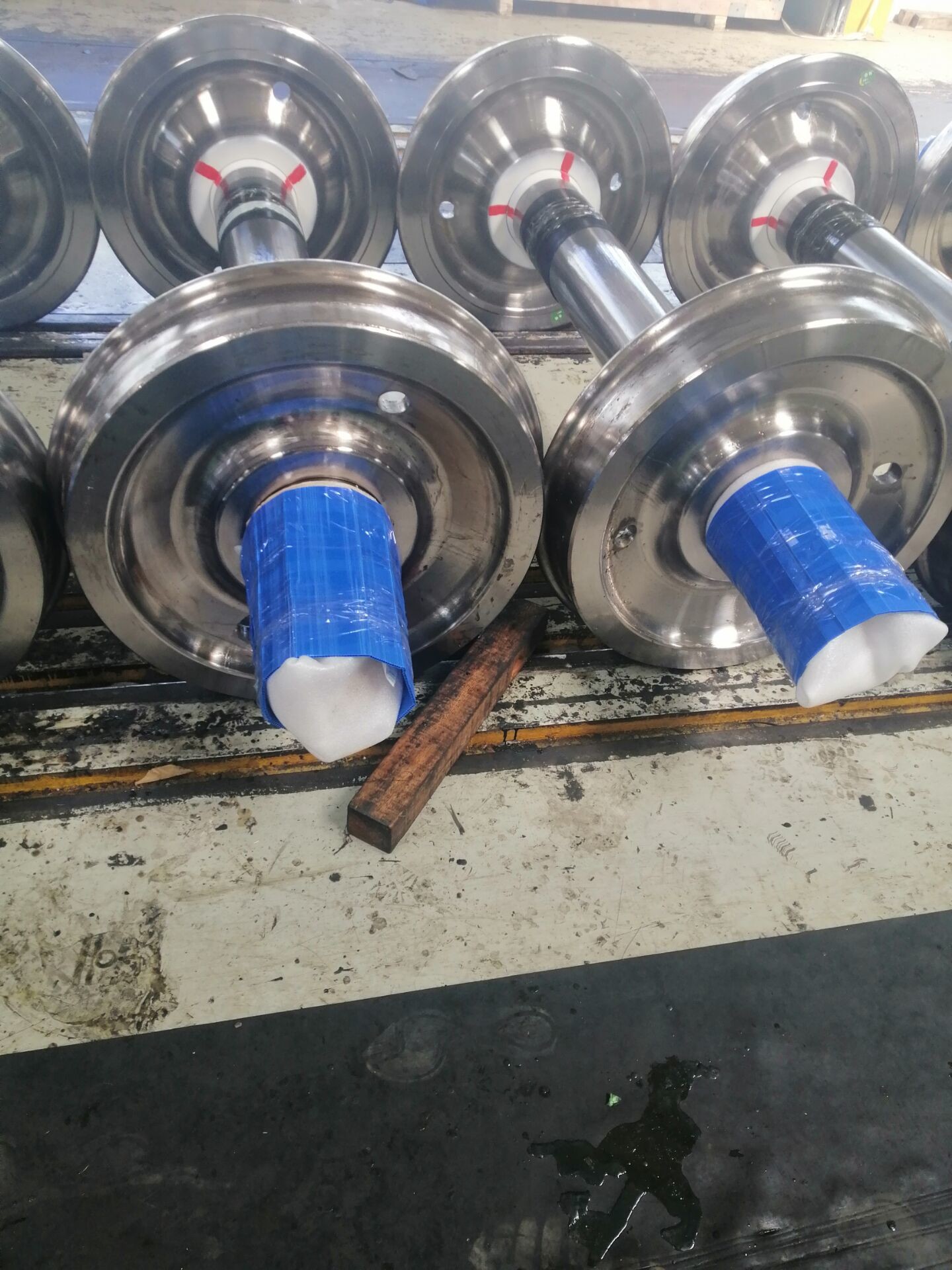

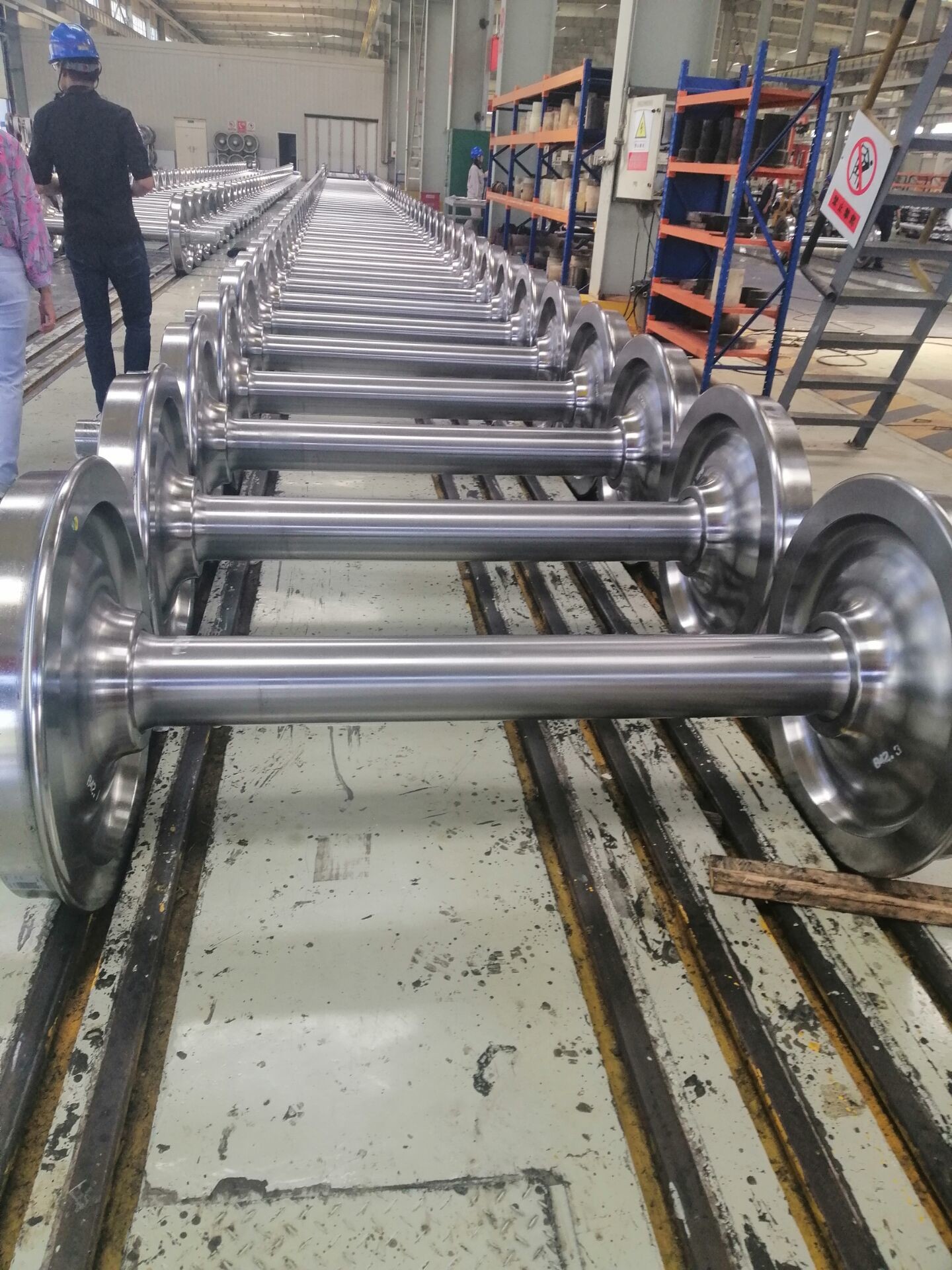

Bogie Wheelset for Trailers Railway Wagon Bogie Axle Used in Locomotive
| Two mono-block wheels,solid-rolled,forged or casted |
| one axle |
| railway bearing could be assembly according to customer's requirement |
| railway axle box could be assembly according to customer's requirement |
| meter gauge,standard gauge,broad gauge could be supplied |
| method of assembly: Cold press fitting |
| The Production Process | |||
| 1. Billet Steel Review | 2. Billet Sawing Cutting | 3. Heating | 4. Forging |
| 5. Straightening | 6. Heat Treatment | 7. Sampling Test | 8. Ultrasonic Inspection |
| 9. Rough Machining | 10. Semi-Finish Machining | 11. Finish Machining | 12. Grinding |
| 13.Magnetic Particle Testing | 14. Packing | ||
| Product Name | Railway train Axle | ||
| Wide Materials | UST provide train axles, axles wide range of raw material steel support AAR Grade F, Grade G, Grade H, EA1N, EA1T, EA4T, IRS 16/95, SFA60A, and so on. | ||
| Wide Standards | Axles confirm to every recognized international quality standard: AAR M-101, UIC 811-1, EN 13261, BS 5892 PART 1, IRS 16/95, JIS E 4502, KSR 9220, GOST 22780, AS 7515 and other customer's requirement. | ||
| Wheels Type | Drive axles with multiple seats, Locomotive axles, Non-driven freight wagon axles, Passenger coach axles. | ||
| Size | According to customers' drawings. | ||
| Capacity | 1,800 pcs per month. | ||
| Test | Chemical analysis, Metallographic, Mechanical property analysis, Ultrasonic testing, Magnetic testing, Impact testing, Hardness testing, Surface quality and dimension report. | ||
| Certifications | ISO9001, ISO14001, OHSAS18001, AAR, IRIS, TSI | ||
Kingrail is a high -tech enterprise intergrating railway passenger cars ,metro vehicles ,railway vehicle and rail fitting design and manufacturing .the company is committed to provide customers with the railway passengers transport system,railway freight system solutions ,the company has an experienced railway vehicle design team and ready to provide users with fast ,high-quality services at any time .the company products have been exported to the United States ,South Afric ,Brazil ,and other countries .covering the vehicle ,bogie and accessories ,coupler and accessories .gangway ,seat ,luggage rack ,air conditioning ,driver operation desk ,electrical cabinets ,electric connectors ,PIS system,FRP composite materials.
