Product Details:
Place of Origin: China
Brand Name: Kingrail
Certification: ISO
Model Number: 1840
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000ton

1850mm Railway Track Fasteners Gauge Rod Insulated And Non Insulated ODM

Description
Standard: GB, UIC, AAR Application: CLIP
Alloy: NON Alloy Special Use: Rail Construction Accessories
Product Name: Gauge Tie Rod Quality Control:: 100% Inspection
High Light:

1850mm Railway Track Fasteners

,

ODM Railway Track Fasteners

,

Insulated Rail Gauge Rod

1850mm Railway Track Fasteners Gauge Rod Insulated And Non Insulated ODM



With advanced technology, powerful processing capacity and excellent service, our products have been well recognized by our customers from domestic & overseas market.
Our products mainly used by railroads, mining companies, heavy industries, overhead crane, railroad and tunneling industry, transit authorities, and operators of port facilities.
We have the inventory, resources, and experience to meet your needs. Main products in our whole Group include as below

Steel rails GB light rail, heavy rail, crane rail & other standard steel rails
Railway accessories turnout switch, fish plates, rail clip, rail clamp, track spike, rail bolt/nut/washer, rail pad and etc
Mining support products steel arch support, mining anchor bolts, mining plastic composite net, plate washer and etc
Other steel products Steel wheels, axles, bearings, couplers, shafts, etc

1850mm Railway Track Fasteners Gauge Rod Insulated And Non Insulated ODM

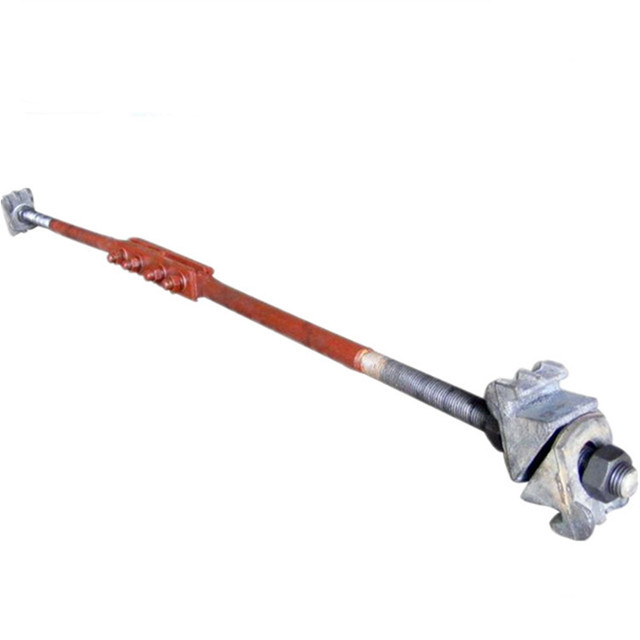

The gauge tie rod is to connect two rails at the bottom of the rail with a rod to improve the lateral stability of the rail and improve the ability of the rail to maintain the gauge. Some lines have track circuits separated by insulating parts in the gauge rods.
importance
The gauge tie rod is an important part of the railway line. If the gauge tie rod is seriously missing, the line gauge will deviate, and the train will derail when it travels to this section.
model of Railway gauge rod double and single shoulder insulated and non insulated 1840mm
18×870 gauge rod
20×870 gauge rod
22×880 gauge rod
22×1050 gauge rod
24×1050 gauge rod
24×1250 gauge rod
28×1810 gauge rod
28×1850 gauge rod
32×1810 gauge rod
32×1850 gauge tie rod
36×1850 gauge tie rod
technical parameter
Weight: 16kg
Diameter: 32mm
Length: 1750mm
Adjustable parts: head rail card
Applicable rail model: 38 or 43
Matching parts: 4 rail clips, 4 screw caps, 4 round cushions, 4 spring washers
When the train runs in a small radius curve (R=250m), the rails are subjected to various forces, and some elastic supports must be strengthened in the direction of these forces to prevent the rails from moving on the sleepers, overturning and gauge expansion. etc., these elastic supports usually use gauge rods and rail braces.
technical status
In the small radius curve section, in order to strengthen the lateral rigidity of the track, six technical states of strengthening components are set. are described as follows
State 1: Standard strengthening state, that is, 18 gauge tie rods and 18 pairs of rail braces are laid between the 25-meter rails.
State 2: One gauge tie rod fails continuously, that is, 9 gauge tie rods and 18 pairs of rail braces are laid between the 25-meter rails.
State 3: 2 gauge tie rods fail continuously, that is, 6 gauge tie rods and 18 pairs of rail braces are laid between the 25-meter rails.
State 4: 3 gauge posts fail continuously, that is, 5 gauge bars and 18 pairs of rail braces are laid between the 25-meter rails.
State 5: One pair of rail braces fails continuously, that is, 18 gauge tie rods and 9 pairs of rail braces are laid between the 25-meter rails.
State 6: One pair of rail braces fails continuously, and one gauge tie rod fails continuously, that is, 9 gauge tie rods and 9 pairs of rail braces are laid between the 25-meter rails.
