Product Details:
|
| Diameter: | 0-1450mm | Production: | Casting And Forging As Per Customer Request |
|---|---|---|---|
| Material: | 4140,42CrMo,60E, Etc | Inspection: | 100% Inspection, UT,MT, Sizes, Mechanical Property |
| Progress: | Forging-machining-inspection-heat Treatment-machining-inspection | Hardness: | 150-560HB |
| Application:: | Railway, Rail Cart Or Shipyard,Rail Road Vehicles, Railcar | Max. Capacity: | Up To 500ton |
| Export Area: | Germany, French, UK, US, South Korea, South Africa, Etc | Sizes: | As Per Customer Drawing |
| High Light: | Driven Steel Crane Wheels,Bridge Steel Crane Wheels,ODM Railroad Car Wheels |
||
Detailed specification of Driving and Driven Steel Crane Wheels for Bridge Crane Forged/ Forging Railroad Car Wheels/Mine Car Wheels
| Specification | Customized, customer required, customer's drawings of Rail wheels |
| Material | cast iron, Grey iron, ductile iron, carbon steel, low alloy steel, tool steel, steel, stainless steel, brass, copper, aluminum alloy, zinc etc |
| Process | Sand casting,Coated sand casting, Shell mold casting, Lost foam casting ,V- process,Centrifugal casting, Ceramic Casting, machining, free forging, die forging,pressure forming , roll forging, precision forging,forging pressure,etc. |
| casting | sand casting, precision casting, investment casting, lost wax casting, die casting,gravity casting,shell mold casting |
| machine | lathe, CNC, drilling machine, milling machine, boring machine, planting machine,machining center, gravity casting machine etc |
| Application | Automobile, agricultural machinery, furniture, construction, home appliances, electronics. |
| surface treatment | powder coating, painting, spraying,electric galvanization,coating,zinc phosphide, impregnation, painting, spray paint, black and blue oxide coating, spray paint black, powder coating painting |
| Inspection equipment | Profile projector,Rockwell hardness tester, Vickers hardness tester roughness tester, air gage, concentricity tester, universial microscope, CMM, digital caliper and rockwell hardness tester etc. |
| Production Usage | Auto parts, train parts, mining accessories,engineering machinery parts,valves, pipe fittings, construction machinery and furniture accessories, agricultural machinery parts, agricultural machinery parts, railway parts |
| Remark | (1) Any RFQ, Please feel free to send your drawings(CAD/PDF)for your quotation. |
| (2) All parts are not in stock, customized only! |

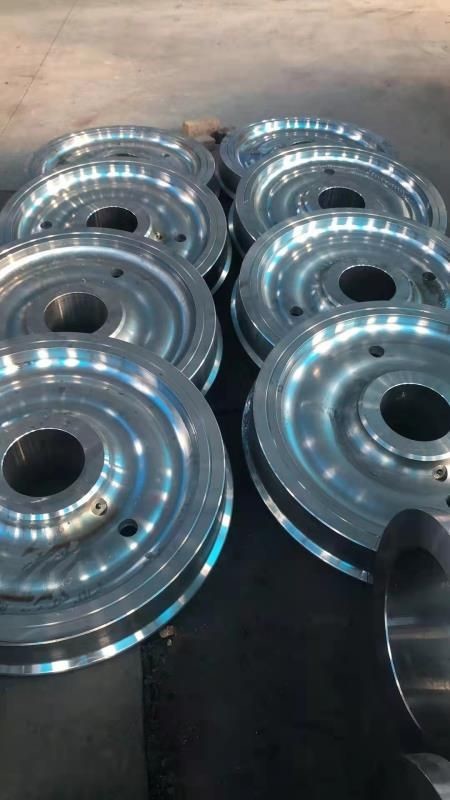

Front View ofDriving and Driven Steel Crane Wheels for Bridge Crane Forged/Forging Railroad Car Wheels/Mine Car Wheels:
Almost all train wheels have a curved projection, a flange, on one side to keep the wheels, and hence the train, running on the rails when the limits or tests of alignment are reached.

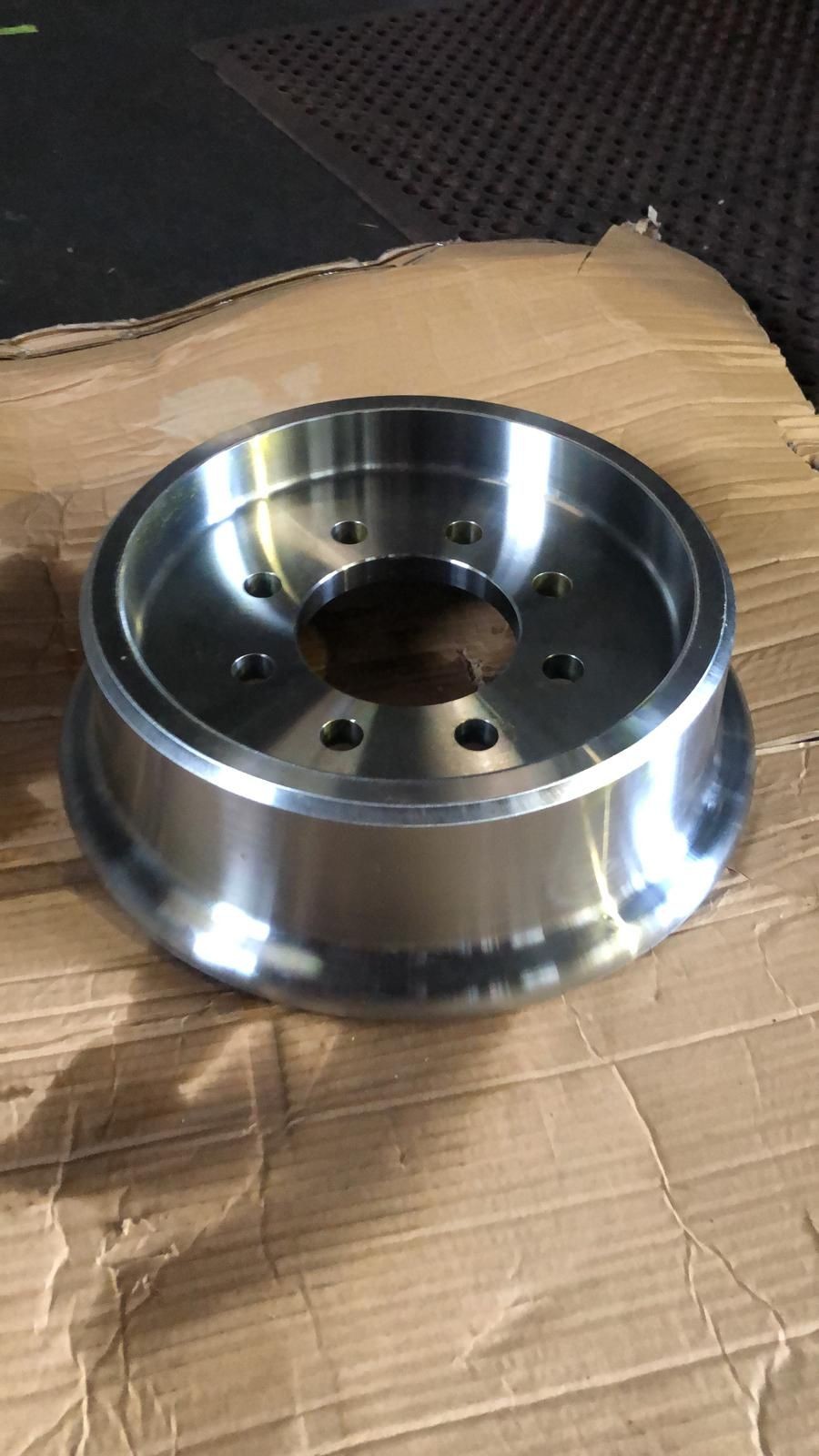

Side View of Driving and Driven Steel Crane Wheels for Bridge Crane Forged/Forging Railroad Car Wheels/Mine Car Wheels:
The running surface of most is concave, serving as the primary means of keeping the train's motion aligned with the track while in others it is flat such that the flanges are essential to keep the train on the rail track.

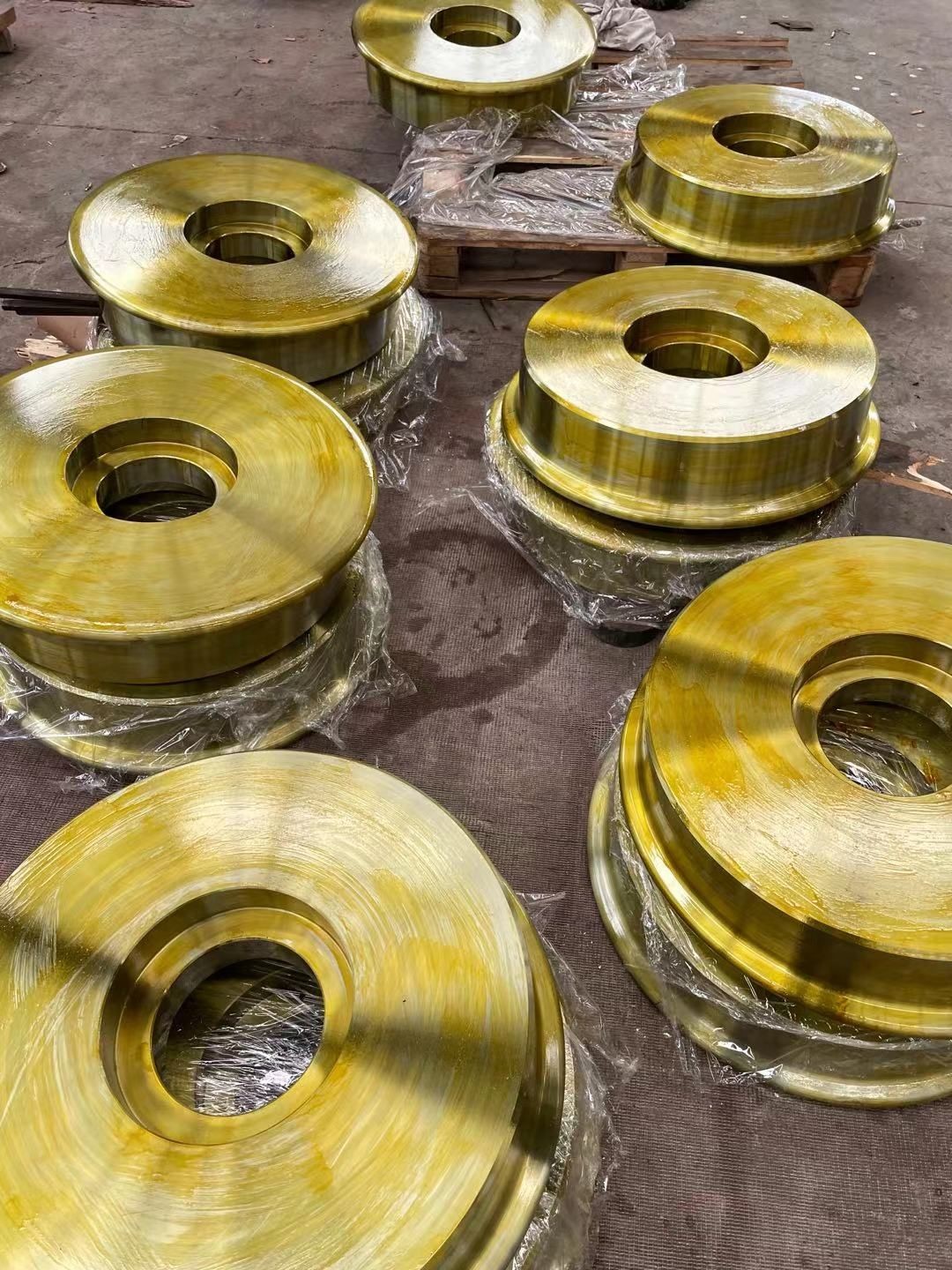

Package of Driving and Driven Steel Crane Wheels for Bridge Crane Forged/Forging Railroad Car Wheels/Mine Car Wheels:Wheels are packed by iron pallets with rings.
Rail steel wheel -Driving and Driven Steel Crane Wheels for Bridge Crane Forged/Forging Railroad Car Wheels/Mine Car Wheels
Carbon steel:C45, C50, C55, C60, 4330, C35, 65Mn
Alloy steel:4140, 42CrMo, 40CrNiMo, 4340,34CrNiMo6
Driving and Driven Steel Crane Wheels for Bridge Crane Forged/Forging Railroad Car Wheels/Mine Car Wheelsmainly used for RRV, Road-rail dual-use vehicles refer to special vehicles that can run on railway tracks as well as on general roads and even in the field. also called RRV. It was mainly used in the military in the early days. Hyundai mainly undertakes emergency tasks such as maintenance and rescue of railway lines and along the lines. Road-rail dual-use vehicles are required to be able to switch between roads and railways quickly and easily. It is usually realized by the hydraulic lane-changing slewing device on the chassis and the railway traveling guide wheel device that can be raised and lowered at any time. With the guide wheel device, the general rubber tire wheels can drive straight along the rail. Because this kind of vehicle requires a certain traction and carrying capacity, it can play a unique role in the event that the railway line is interrupted or blocked due to a disaster. Dedicated road-rail vehicles include: electric traction section catenary repair vehicles, excavators used for mountain railway repairs, emergency tractors, generator vehicles, fire trucks, fast bridge vehicles, etc.
Strength of Driving and Driven Steel Crane Wheels for Bridge Crane Forged/Forging Railroad Car Wheels/Mine Car Wheels:
1. Forging production, longer lifespan, for smaller quantity, free forging, for big quantity, precision forging with mould
2. Diameter: 0-1450mm, 6",8",10",12",14",16",20",24",28",30",34",36",40",42",etc
3.100% inspection before delivery
Usage of Driving and Driven Steel Crane Wheels for Bridge Crane Forged/Forging Railroad Car Wheels/Mine Car Wheels:
Train, railcars, light rail, street car, metro, freight car, railway wagon for mining, rail trucks, ballast rail cars, Hy-rail hirail cars, etc
The Production Railway Wheels Process
1. Wheels Steel Melting 2. Round Billet Sawing Cutting 3. Heating 4. Phosphorus 5. Stamping Forming 6. Rolling 7. Bending Punch 8. Hot Stamping 9. Laser Measurement 10. Drop Stack 11. Roughing 12.Hardening 13.Tempering 14. Sampling 15. Pre-processing 16. Finishing 16. The Cold Print 17. Static Equilibrium 18. The Cold Print 19. Hardness Testing 20. Ultrasonic Testing 21. Magnetic Particle Testing 22. Shot Peening 23. Painting Packaging
Main Testing and Inspection Device
| No. | Device | Type | Qty | Status | Note |
| 1 | End quenching machine | DZJ-I | 1 | working | Testing |
| 2 | Electric resistance furnace | SX2-8-12 | 2 | working | Testing |
| 3 | Inverted metallurgic microscope | 4XCE | 1 | working | Inspection |
| 4 | High temperature box resistance furnace | SX2-4-13 | 1 | working | Testing |
| 5 | Automatic digital display Rockwell hard-tester | 200HRS-180 | 1 | working | Inspection |
| 6 | Electronic Brinell hardness tester | THB-3000 | 1 | working | Inspection |
| 7 | HR-150B Rockwell hardness tester | HR-150B | 1 | working | Inspection |
| 8 | Rapid multi-element analyzer | JS-DN328 | 1 | working | Inspection |
| 9 | Electric arc furnace | JSDL-8 | 1 | working | Testing |
| 10 | Rapid multi-element analyzer(C & S) | JS-DN328 | 1 | working | Inspection |
| 11 | Infrared thermometer | AR872 | 2 | working | Inspection |
| 12 | Portable chemical composition analyzer | AR872 | 2 | working | Inspection |
| 13 | Test specimen sampler | KW30-6 | 1 | working | Inspection |
Our Equipments:
The total production area of Kingrail Parts is 55, 000 square meters, including a 40, 000 square meter factory and 10, 000 square meter warehouse. The production mill covers over 100, 000 square meters equipped with steel rolling and casting lines, rail elastic clip lines, fish plate lines, spike & Bolt lines, heating treatment line and surface anticorrosion treatment line as well as electro galvanizing, hot galvanizing and Dacromet processing lines. Our technical force is strong, the inspection method is complete, we can strictly implement the national railway standards for production.
Services we can provide:
1. Our railway products comply with AREMA, DIN, BS, UIC, GOST, NF, JIS, GB and other standards.
2. We can customize railway fasteners products according to your samples or drawings.
3. Fast , Convinient Services with High quality products but competitive price.
4. Complete quality inspection procedure to every batch of shipment before delivery.
5. After-service can be warranty last to 3 years of any questions from our customers.
Our aim is to serve customers by providing the the most optimized solution according to the needs of production and meet the satisfaction.
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
