Product Details:
|
| Applicable Industries:: | Machinery Repair Shops, Energy & Mining | Manufacture Method: | Casting&Forging |
|---|---|---|---|
| Processing: | Tooling-Raw Material-Forging-Machining-Inspection | Track (mm):: | 400 600 1450 1000 |
| Size:: | 350mm,300mm,450mm, 650mm As Per Customer Specific | Dimensions (L X W X H) (mm):: | As Per Customer's Drawing |
| Transport Package: | Wooden Cases | HS Code: | 8602900000 |
| High Light: | OEM Railroad Train Wheels,450mm Railroad Train Wheels,Forged Steel Wheel ISO9001 2008 |
||
450mm Factory Customized Crane Rail Wheel Manufacturer With Forged And Casted Steel Wheelsets
Wheelsets,as well as called wheel pairs are key safety-relevant components of rail vehicle bogies.Their properties thus have an influence on such important aspects as life cycle costs and sound emissions. A wheelset is the wheel-axle assembly of a railroad car.The frame assembly beneath each end of a car,railcar or locomotive that holds the wheelsets is called the bogie.
Factory Customized Crane Rail Wheel Manufacturer with Forged and Casted Steel Wheelsets

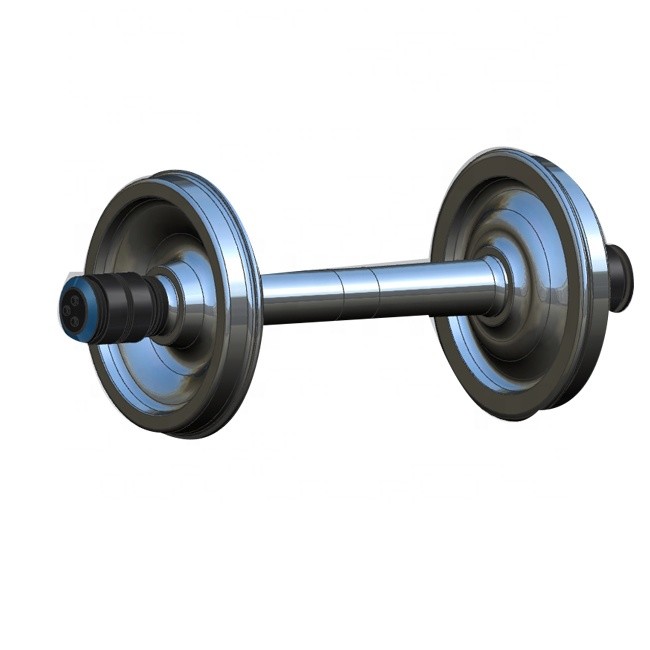

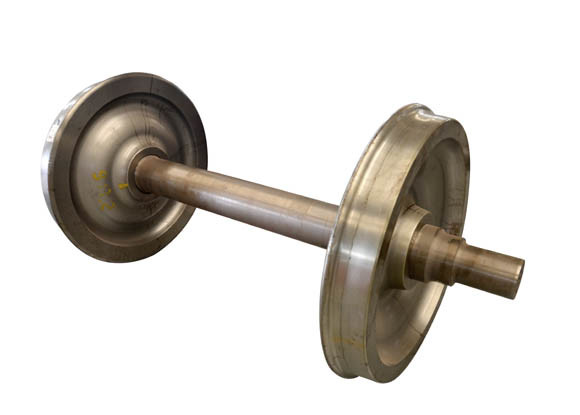

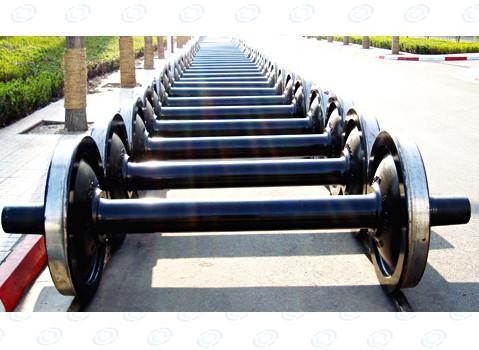

Railway Wheel Set
1. material: cast steel or cast iron
2. constitute: two wheels, one axle, four bearings, and other parts
3. loading capacity: 1-25tons, each one is ok zmwm02
4. wheel sets gauge: 600mm, 762mm, 900mm, and etc
5. type of the wheels: hollow wheel sets and solid wheel sets
6. diameter of the wheels: 300mm, 350mm, 400mm, 450mm
7. material of the axle: 45# steel, or Q235
8. quantity of each wheel's bearing: two
9. material of the bearing: LYC32212,conical roller bearing,deep groove ball bearing
10. weight: 70kg
Factory Customized Crane Rail Wheel Manufacturer with Forged and Casted Steel Wheelsets
| Technical characteristics: | |
| Wheel profile diameters(mm) | 500-1.350 |
| Axle length(mm) | 1.250-2.500 |
| Speed range(r.p.m) | 1,5-300 |
| Main motor power(kw) | 55 |
| Main axis feeds(mm/min) | 7.5 |
There is a rim on the inside of the mine wheel, and there is a certain gap between the rim and the rail. The tread of the wheel contacting the rail is tapered to keep the wheel set centered when running along the track, reducing mechanical wear and reducing running resistance. Our company can produce and process various types of mining wheel pairs, such as: 600-gauge mining wheels with a diameter of 300, and 600-gauge mining wheels with a diameter of 350. The material is cast steel, and the shaft thickness is 50mm, 55mm, 60mm, 75mm, etc.
What are the reasons for the wear of the mine wheel pair?
1. Curves in the track
At the curve, in order to prevent the two axles of the mine car from entering the curve, the rim of the wheel squeezes the steel rail, causing greater driving resistance, and even the vehicle cannot proceed or fall off the road. In the curve, the track gauge must be widened, that is, the outer rail does not move, and the inner rail moves a certain distance to the center of curvature. At the same time, in order to avoid the effect of the nest force, the wheel rim squeezes the outer rail to increase the driving resistance and aggravate the wheel rim. And the wear of the rails, and even cause the rollover. The outer rail at the bend needs to be raised, and the resultant force of the centrifugal force of the minecart and its gravity may be perpendicular to the rail surface. Outside the curve, the resultant force of the centrifugal force of the mine car and its gravity cannot be perpendicular to the rail surface, that is, the centrifugal force will always exist. by centrifugal force. After a period of operation, large negative and positive deviations of the gauge at the corners appear.
2. Additional load changes
In the structure of the mine car, the box body and the axle card are rigidly connected into one. When the mine car travels on the uneven track, it will vibrate and cause additional impact load, so that the positive pressure of the mine wheel on the track increases instantaneously, resulting in The sharp increase in the pressure of the rolling elements in the bearing on the bearing ring causes plastic deformation of the rolling elements and the bearing ring, and the bearing is prematurely scrapped; at the same time, it increases the friction between the mine wheel and the track, resulting in additional wear and tear of the mine truck. .
3. Lubrication of the mine wheel to the bearing
In the special environment of underground production, after the inner sealing ring of the wheelset is compressed and worn, water and dust can easily enter, resulting in saponification of grease or loss of grease, poor lubrication, which will reduce the transmission efficiency. The phenomenon of permanent lock-rotor, the wear of the mine wheel is aggravated.
Features of Factory Customized Crane Rail Wheel Manufacturer with Forged and Casted Steel Wheelsets
Most train wheels have a conical taper of about 1 in 20 to enable the wheelset to follow curves with less chance of the wheel flanges coming in contact with the rail sides, and to reduce curve resistance. Correspondingly, the rails generally slant inwards at the same angle as the wheel cone.Shaft assembly Without the conical shape, a wheel would tend to continue in a straight path due to the inertia of the rail vehicle, reduction box causing the wheelset to move towards the outer rail on the curve. The cone increases the effective diameter of the wheel as it moves towards the outer rail, and since the wheels are mounted rigidly on the axle, the outer wheels push cart travel slightly farther, causing the wheelsets to more efficiently follow the curve without sideways displacement. Abnormal wear at the wheel–rail interface is thus avoided.A loud, piercing, very high-pitched squeal usually results – especially evident on curves in tunnels, stations and elevated track.
Package of Factory Customized Crane Rail Wheel Manufacturer with Forged and Casted Steel Wheelsets
Wheel set China factory direct manufacturing of Factory Customized Crane Rail Wheel Manufacturer with Forged and Casted Steel Wheelsets:
1. Freight wagons
2. Passenger wagons
3. Locomotives
4. Trams
5. Diesel-Electric Trains
6. Narrow gauge trains
7. Special vehicles for rail maintenance.
Application of Factory Customized Crane Rail Wheel Manufacturer with Forged and Casted Steel Wheelsets:
1. Freight wagon wheel set
2. Passenger Coach Wheel Set
3. Locomotive Wheel Set
4. All wheel sets could be supplied with bearing and axle box or without bearing.
About the customized forged wheelsets for all kinds of uses, our company King Rail is the professional manufacturer of the crane wheel, forged wheel, cast iron wheel, polyurethane wheel, train wheel, steel crane wheel set which with more than 15 years designing and producing experience. With our own forging workshop, machining workshop, heat treatment workshop, we can provide all kind of wheels with different materials, such as ZG430640 cast steel, 60#,65 # , 65Mn, 42CrMoA or according to your demands.
Our Equipments of railway wheel set:
The total production area of Kingrail Parts is 55, 000 square meters, including a 40, 000 square meter factory and 10, 000 square meter warehouse. The production mill covers over 100, 000 square meters equipped with steel rolling and casting lines, rail elastic clip lines, fish plate lines, spike & Bolt lines, heating treatment line and surface anticorrosion treatment line as well as electro galvanizing, hot galvanizing and Dacromet processing lines,hydraulic wheel press machine to hydraulic wheel press,wheel press machine,mounting press machine,. Our technical force is strong, the inspection method is complete, we can strictly implement the national railway standards for production.
Services we can provide:
1. Our railway products comply with AREMA, DIN, BS, UIC, GOST, NF, JIS, GB and other standards.
2. We can customize railway fasteners products according to your samples or drawings.
3. Fast , Convinient Services with High quality products but competitive price.
4. Complete quality inspection procedure to every batch of shipment before delivery.
5. After-service can be warranty last to 3 years of any questions from our customers.
Our aim is to serve customers by providing the the most optimized solution according to the needs of production and meet the satisfaction.
Quality control processes for wheel sets:
1. Dynamic balancing- Automatic Stand
2. Electrical resistance testing
3. Ultrasonic test of the pressing
4.Geometrical control-new, unique underground, fully-automatic stand with 4D laser measurement head which gives volume detailed measurement of the wheel sets
5. Thickness control of painting.
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
