Product Details:
|
| Applicable Industries:: | Machinery Repair Shops, Energy & Mining | Manufacture Method: | Casting&Forging |
|---|---|---|---|
| Processing: | Tooling-Raw Material-Forging-Machining-Inspection | Track (mm):: | 400 600 1450 1000 |
| Size:: | 350mm,300mm,450mm, 650mm As Per Customer Specific | Dimensions (L X W X H) (mm):: | As Per Customer's Drawing |
| Transport Package: | Wooden Cases | HS Code: | 8602900000 |
| High Light: | 762mm Locomotive Driving Wheels,Steel Locomotive Driving Wheels,ODM Steel Train Wheels |
||

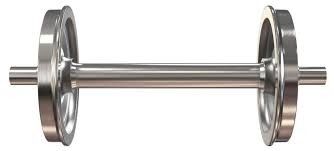

762mm gauge Wheel Set for The Mining Loco, Steel Wheel Set for The Battery Locomotive, Mining Equipment
Wheelsets,as well as called wheel pairs are key safety-relevant components of rail vehicle bogies.Their properties thus have an influence on such important aspects as life cycle costs and sound emissions. A wheelset is the wheel-axle assembly of a railroad car.The frame assembly beneath each end of a car,railcar or locomotive that holds the wheelsets is called the bogie.

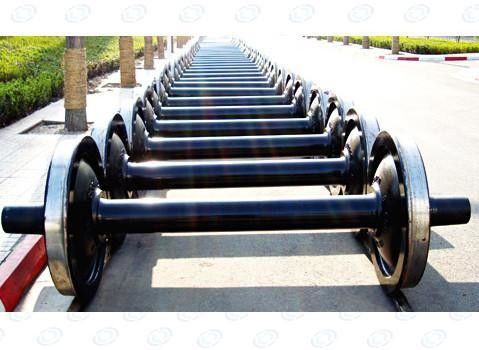

762mm gauge Wheel Set for The Mining Loco, Steel Wheel Set for The Battery Locomotive, Mining Equipment
Railway Wheel Set
1. material: cast steel or cast iron
2. constitute: two wheels, one axle, four bearings, and other parts
3. loading capacity: 1-25tons, each one is ok zmwm02
4. wheel sets gauge: 600mm, 762mm, 900mm, and etc
5. type of the wheels: hollow wheel sets and solid wheel sets
6. diameter of the wheels: 300mm, 350mm, 400mm, 450mm
7. material of the axle: 45# steel, or Q235
8. quantity of each wheel's bearing: two
9. material of the bearing: LYC32212,conical roller bearing,deep groove ball bearing
10. weight: 70kg
762mm gauge Wheel Set for The Mining Loco, Steel Wheel Set for The Battery Locomotive, Mining Equipment
| Technical characteristics: | |
| Wheel profile diameters(mm) | 500-1.350 |
| Axle length(mm) | 1.250-2.500 |
| Speed range(r.p.m) | 1,5-300 |
| Main motor power(kw) | 55 |
| Main axis feeds(mm/min) | 7.5 |
Features of 762mm gauge Wheel Set for The Mining Loco, Steel Wheel Set for The Battery Locomotive, Mining Equipment:
Most train wheels have a conical taper of about 1 in 20 to enable the wheelset to follow curves with less chance of the wheel flanges coming in contact with the rail sides, and to reduce curve resistance. Correspondingly, the rails generally slant inwards at the same angle as the wheel cone.Shaft assembly Without the conical shape, a wheel would tend to continue in a straight path due to the inertia of the rail vehicle, reduction box causing the wheelset to move towards the outer rail on the curve. The cone increases the effective diameter of the wheel as it moves towards the outer rail, and since the wheels are mounted rigidly on the axle, the outer wheels push cart travel slightly farther, causing the wheelsets to more efficiently follow the curve without sideways displacement. Abnormal wear at the wheel–rail interface is thus avoided.A loud, piercing, very high-pitched squeal usually results – especially evident on curves in tunnels, stations and elevated track.
Package of 762mm gauge Wheel Set for The Mining Loco, Steel Wheel Set for The Battery Locomotive, Mining Equipment:
Wheel set China factory direct manufacturing of 762mm gauge Wheel Set for The Mining Loco, Steel Wheel Set for The Battery Locomotive, Mining Equipment:
1. Freight wagons
2. Passenger wagons
3. Locomotives
4. Trams
5. Diesel-Electric Trains
6. Narrow gauge trains
7. Special vehicles for rail maintenance.
Application of 762mm gauge Wheel Set for The Mining Loco, Steel Wheel Set for The Battery Locomotive, Mining Equipment:
1. Freight wagon wheel set
2. Passenger Coach Wheel Set
3. Locomotive Wheel Set
4. All wheel sets could be supplied with bearing and axle box or without bearing.
About the customized forged wheelsets for all kinds of uses, our company King Rail is the professional manufacturer of the crane wheel, forged wheel, cast iron wheel, polyurethane wheel, train wheel, steel crane wheel set which with more than 15 years designing and producing experience. With our own forging workshop, machining workshop, heat treatment workshop, we can provide all kind of wheels with different materials, such as ZG430640 cast steel, 60#,65 # , 65Mn, 42CrMoA or according to your demands.
Our Equipments of railway wheel set:
The total production area of Kingrail Parts is 55, 000 square meters, including a 40, 000 square meter factory and 10, 000 square meter warehouse. The production mill covers over 100, 000 square meters equipped with steel rolling and casting lines, rail elastic clip lines, fish plate lines, spike & Bolt lines, heating treatment line and surface anticorrosion treatment line as well as electro galvanizing, hot galvanizing and Dacromet processing lines,hydraulic wheel press machine to hydraulic wheel press,wheel press machine,mounting press machine,. Our technical force is strong, the inspection method is complete, we can strictly implement the national railway standards for production.
Services we can provide:
1. Our railway products comply with AREMA, DIN, BS, UIC, GOST, NF, JIS, GB and other standards.
2. We can customize railway fasteners products according to your samples or drawings.
3. Fast , Convinient Services with High quality products but competitive price.
4. Complete quality inspection procedure to every batch of shipment before delivery.
5. After-service can be warranty last to 3 years of any questions from our customers.
Our aim is to serve customers by providing the the most optimized solution according to the needs of production and meet the satisfaction.
Quality control processes for wheel sets:
1. Dynamic balancing- Automatic Stand
2. Electrical resistance testing
3. Ultrasonic test of the pressing
4. Geometrical control-new, unique underground, fully-automatic stand with 4D laser measurement head which gives volume detailed measurement of the wheel sets
5. Thickness control of painting.
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
