Product Details:
|
| Applicable Industries:: | Machinery Repair Shops, Energy & Mining | Manufacture Method: | Casting&Forging |
|---|---|---|---|
| Processing: | Tooling-Raw Material-Forging-Machining-Inspection | Track (mm):: | 400 600 1450 1000 |
| Size:: | 350mm,300mm,450mm, 650mm As Per Customer Specific | Dimensions (L X W X H) (mm):: | As Per Customer's Drawing |
| Transport Package: | Wooden Cases | HS Code: | 8602900000 |
| High Light: | 650mm Railway Wheel Set,kingrail Railway Wheel Set,ODM Railroad Wheels For Trucks |
||

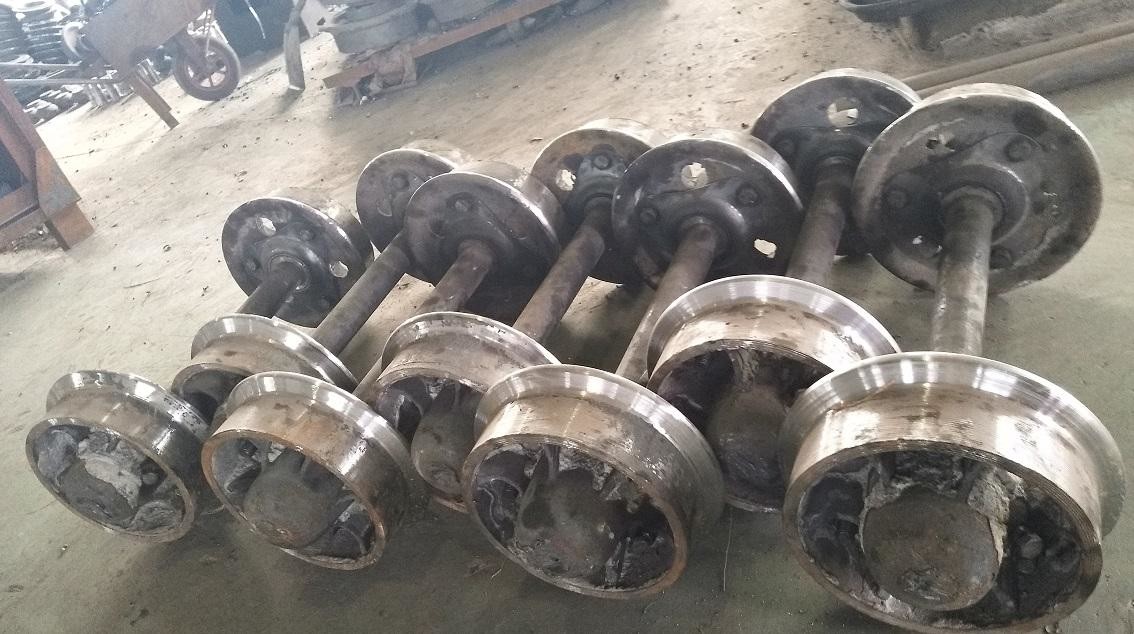

650mm China Hot Sale Wheelset for Rail Industrial Steel Railway Cart Overhead Crane Rail Wheelsets

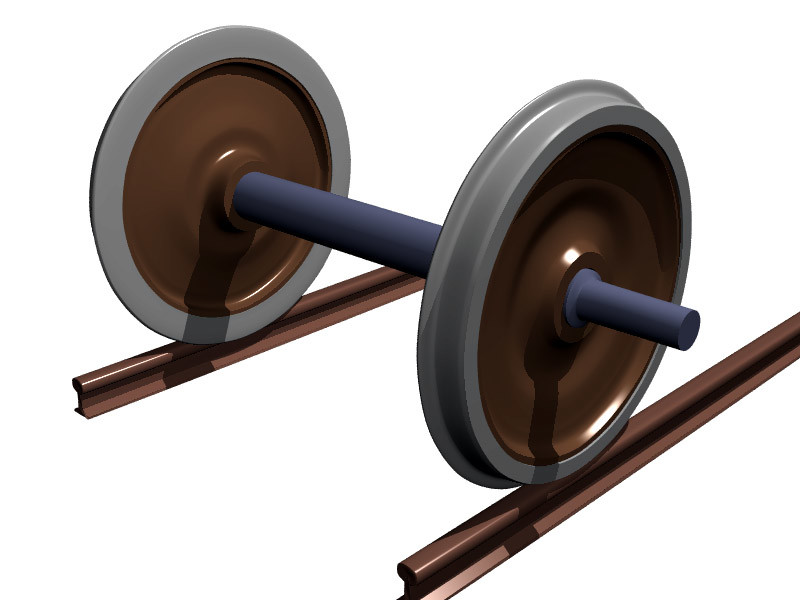

Wheelsets,as well as called wheel pairs are key safety-relevant components of rail vehicle bogies.Their properties thus have an influence on such important aspects as life cycle costs and sound emissions. A wheelset is the wheel-axle assembly of a railroad car.The frame assembly beneath each end of a car,railcar or locomotive that holds the wheelsets is called the bogie.
650mm China Hot Sale Wheelset for Rail Industrial Steel Railway Cart Overhead Crane Rail Wheelsets
1. material: cast steel or cast iron
2. constitute: two wheels, one axle, four bearings, and other parts
3. loading capacity: 1-25tons, each one is ok zmwm02
4. wheel sets gauge: 600mm, 762mm, 900mm, and etc
5. type of the wheels: hollow wheel sets and solid wheel sets
6. diameter of the wheels: 300mm, 350mm, 400mm, 450mm
7. material of the axle: 45# steel, or Q235
8. quantity of each wheel's bearing: two
9. material of the bearing: LYC32212,conical roller bearing,deep groove ball bearing
10. weight: 70kg
How does the minecart work? Of course, it has to use wheels to walk. The minewheel pair plays a role. We all know that a complete minecart is driven by two pairs of wheels. Let's talk about this wheel - the minewheel pair.
Narrow-gauge railway transport vehicles for transporting bulk materials such as coal, ore and waste rock in mines generally need to be pulled by locomotives or winches. The minecart can be loaded by the draw gate.
Before installing the mine car, first check the installation position of the mine car, check the laying of the track, whether the parallelism and flatness of the two rails meet the requirements, and adjust if necessary. The rail top of the linear track should be at the same level, and the allowable error in the length direction should not exceed 1mm per meter and 3mm per 10m. The allowable error on the corresponding measuring points in the left and right directions does not exceed 2mm. After careful inspection and no problem, according to the installation requirements, ensure that the center line of the mine wheel is coincident with the center line of the track.
During the trial operation of the mine car, observe whether the mine wheel pair and the track rub against each other, and deal with it in time to prevent damage to the mine car. During the trial operation, observe whether the car body is inclined, out of track or overturned after sliding along the slope and curve and colliding with another mining car. During the test run, observe whether the mine carts collide with each other, interfere with each other and gnaw the rails when they pass through the track with a small radius of curvature.
650mm China Hot Sale Wheelset for Rail Industrial Steel Railway Cart Overhead Crane Rail Wheelsets
| Technical characteristics: | |
| Wheel profile diameters(mm) | 500-1.350 |
| Axle length(mm) | 1.250-2.500 |
| Speed range(r.p.m) | 1,5-300 |
| Main motor power(kw) | 55 |
| Main axis feeds(mm/min) | 7.5 |
Features of 650mm China Hot Sale Wheelset for Rail Industrial Steel Railway Cart Overhead Crane Rail Wheelsets:
Most train wheels have a conical taper of about 1 in 20 to enable the wheelset to follow curves with less chance of the wheel flanges coming in contact with the rail sides, and to reduce curve resistance. Correspondingly, the rails generally slant inwards at the same angle as the wheel cone.Shaft assembly Without the conical shape, a wheel would tend to continue in a straight path due to the inertia of the rail vehicle, reduction box causing the wheelset to move towards the outer rail on the curve. The cone increases the effective diameter of the wheel as it moves towards the outer rail, and since the wheels are mounted rigidly on the axle, the outer wheels push cart travel slightly farther, causing the wheelsets to more efficiently follow the curve without sideways displacement. Abnormal wear at the wheel–rail interface is thus avoided.A loud, piercing, very high-pitched squeal usually results – especially evident on curves in tunnels, stations and elevated track.

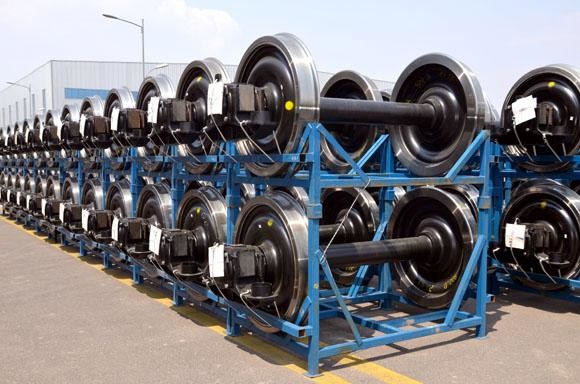

Package of 650mm China Hot Sale Wheelset for Rail Industrial Steel Railway Cart Overhead Crane Rail Wheelsets:
Wheel set China factory direct manufacturing of 650mm China Hot Sale Wheelset for Rail Industrial Steel Railway Cart Overhead Crane Rail Wheelsets:
1. Freight wagons
2. Passenger wagons
3. Locomotives
4. Trams
5. Diesel-Electric Trains
6. Narrow gauge trains
7. Special vehicles for rail maintenance.
Eg:
Mining wheels: Mining wheels are used for various rollover, bottom unloading and side unloading mining trucks for transportation in large tunnels underground in coal mines, medium and small inclined shafts, small inclined shafts along the trough and mine ground transportation. The mine car is composed of the carriage, the MG1.1-6A mine car-frame, the wheelset, and the buffer part. Mining wheels are narrow-gauge railway transport vehicles for transporting bulk materials such as coal, ore and waste rock in mines, and generally need to be pulled by locomotives or winches. According to different structures and unloading methods, mine cars can be divided into fixed tipping bucket type, side unloading type, shuttle type and bottom unloading type. Fixed mine car The car box is fixedly connected to the frame, and the mine car must be turned over and unloaded with a dumper. Its basic components are a car box, a frame, a buffer, a coupling and a running mechanism. The frame is a metal structure, which can withstand traction force, braking force, collision force between mine cars and impact force of steel rails. Buffers are installed at both ends of the frame to moderate the impact force between the two cars. The coupling is the part that connects the locomotive and the mine car. Commonly used are the latch chain ring and the slewing chain. The large mine car adopts an automatic coupler that also functions as a buffer. The running gear is two wheelsets consisting of 4 wheels and 2 axles.
Mine wheels have various series of wheel pairs and mine cart wheels, such as diameter 300, wheel base 900, diameter 400, wheel base 900, etc.
Application of 650mm China Hot Sale Wheelset for Rail Industrial Steel Railway Cart Overhead Crane Rail Wheelsets:
1. Freight wagon wheel set
2. Passenger Coach Wheel Set
3. Locomotive Wheel Set
4. All wheel sets could be supplied with bearing and axle box or without bearing.
About the customized forged wheelsets for all kinds of uses, our company King Rail is the professional manufacturer of the crane wheel, forged wheel, cast iron wheel, polyurethane wheel, train wheel, steel crane wheel set which with more than 15 years designing and producing experience. With our own forging workshop, machining workshop, heat treatment workshop, we can provide all kind of wheels with different materials, such as ZG430640 cast steel, 60#,65 # , 65Mn, 42CrMoA or according to your demands.

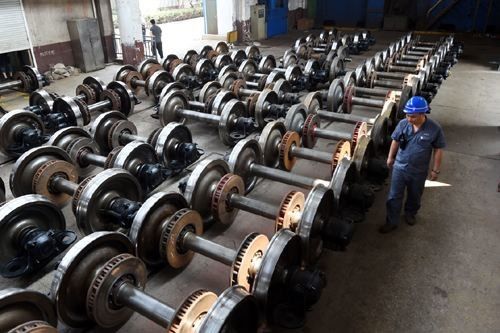

Our Equipments of railway wheel set:
The total production area of Kingrail Parts is 55, 000 square meters, including a 40, 000 square meter factory and 10, 000 square meter warehouse. The production mill covers over 100, 000 square meters equipped with steel rolling and casting lines, rail elastic clip lines, fish plate lines, spike & Bolt lines, heating treatment line and surface anticorrosion treatment line as well as electro galvanizing, hot galvanizing and Dacromet processing lines,hydraulic wheel press machine to hydraulic wheel press,wheel press machine,mounting press machine,. Our technical force is strong, the inspection method is complete, we can strictly implement the national railway standards for production.
Services we can provide:
1. Our railway products comply with AREMA, DIN, BS, UIC, GOST, NF, JIS, GB and other standards.
2. We can customize railway fasteners products according to your samples or drawings.
3. Fast , Convinient Services with High quality products but competitive price.
4. Complete quality inspection procedure to every batch of shipment before delivery.
5. After-service can be warranty last to 3 years of any questions from our customers.
Our aim is to serve customers by providing the the most optimized solution according to the needs of production and meet the satisfaction.
Quality control processes for wheel sets:
1. Dynamic balancing- Automatic Stand
2. Electrical resistance testing
3. Ultrasonic test of the pressing
4. Geometrical control-new, unique underground, fully-automatic stand with 4D laser measurement head which gives volume detailed measurement of the wheel sets
5. Thickness control of painting.
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
It can produce and process models of mine carts and mine wheel pairs, such as: 600-gauge mining wheels with a diameter of 300, 600-gauge mining wheels with a diameter of 350, cast steel, and cast iron specifications.
Mining Wheelset Price, Mining Wheelset Manufacturer Mining Wheelset Production Specification Mining Wheelset, Mining Wheelset, Mining Cart Mining Wheelset, Model Mining Wheelset
In addition, the company specializes in the following products:
1. Mine trucks: stationary mine trucks, tipping bucket mine trucks, 3 ton bottom dump mine trucks, type mine trucks, MLC2-6 MLC3-6 coal mine material trucks, material trucks, side dump mine trucks and shuttle type mine trucks and flatbed trucks.
2. Mine car accessories: 40 connecting pins, mine car pins, rubber mine car bumper, polyurethane mine car bump, bump spring, mine wheel, mine wheel pair, mine car three-ring chain.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
