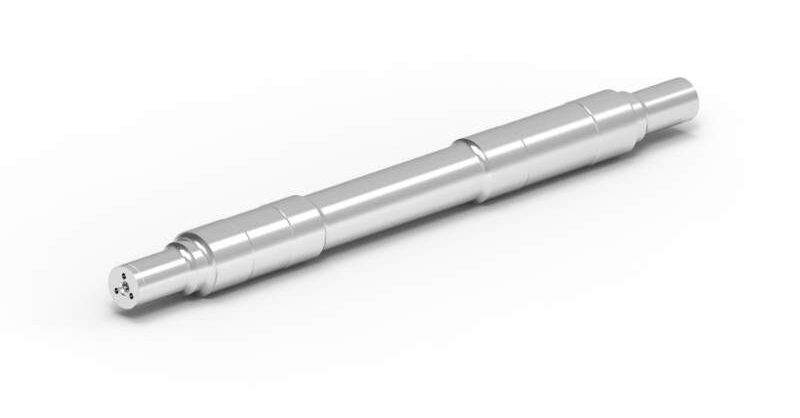

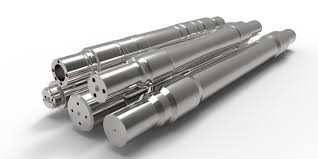

GOST 1750 Rail Wheel Axle 60 Tons Loading LZ50 JZ45 Material

For the axles production ISO9001 CNC Machining Railway Shaft Custom/Alloy Precision Forging Railway Axle En13261 Standard Railway Axle Forged Shaft, Kingrail  railway axle heat treatment system includes a cooling device, a normalizing device and a tempering device. The cooling device and the inlet of the normalizing device are connected through a roller table, and the outlet of the normalizing device and the inlet of the tempering device are connected through the roller table. The beneficial effect of the present invention is that the normalizing device is connected with the tempering device to realize continuous production of different process routes, and the cooling device is provided to cool the axle, and can improve the cooling speed and production efficiency.

A steel material for an axle and a processing method thereof belong to the field of metal smelting and processing. Contains the following ingredients: 0.46～0.58wt% of C, 0.17～0.40wt% of Si, 0.75～1.00wt% of Mn, ≤0.015wt% of P, ≤0.010wt% of S, 0.18～0.25wt% of Ni, 0.20 to 0.27 wt% of Cr, ≦0.15 wt% of Cu, ≦0.10 wt% of Mo, 0.02 to 0.08 wt% of V, 0.015 to 0.045 wt% of Al, etc., with the balance being Fe. The process flow of the present invention is: electric furnace smelting or converter smelting → LF furnace refining → RH or VD vacuum treatment → continuous casting → slow cooling or hot delivery → forging heating → hydraulic press forging billeting → forging billet heating → rolling → slow cooling →Normalizing and tempering. Therefore, the shaft material produced by KINGRAIL is dense and uniform.

Two Axle 60 Tons Loading Railway Train Axle for Russia GOST 1750 Train Railway Wheelset/Wheel Pair Assembly

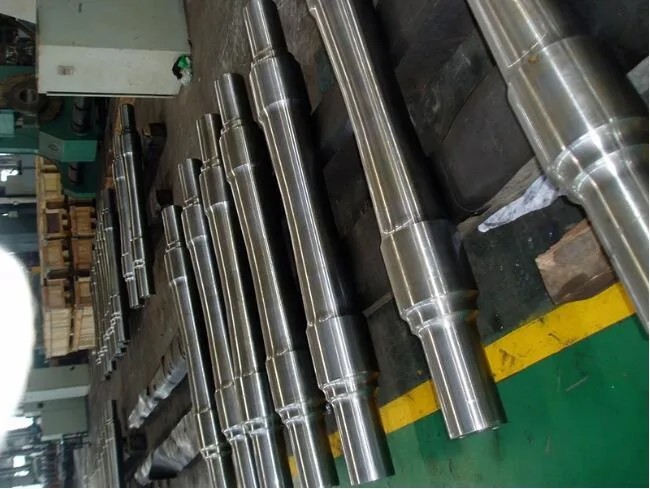

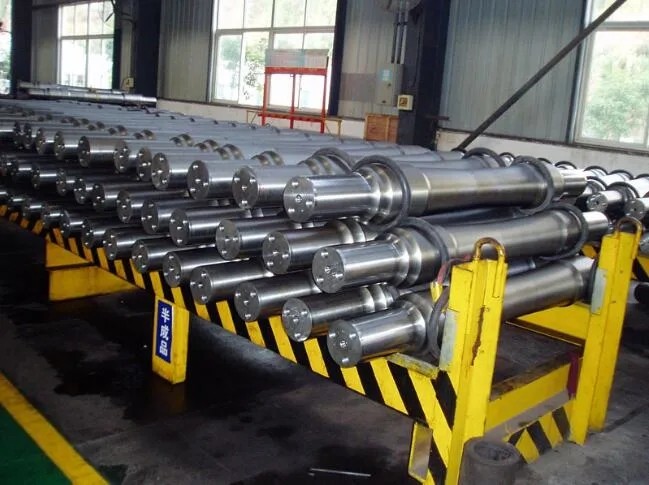

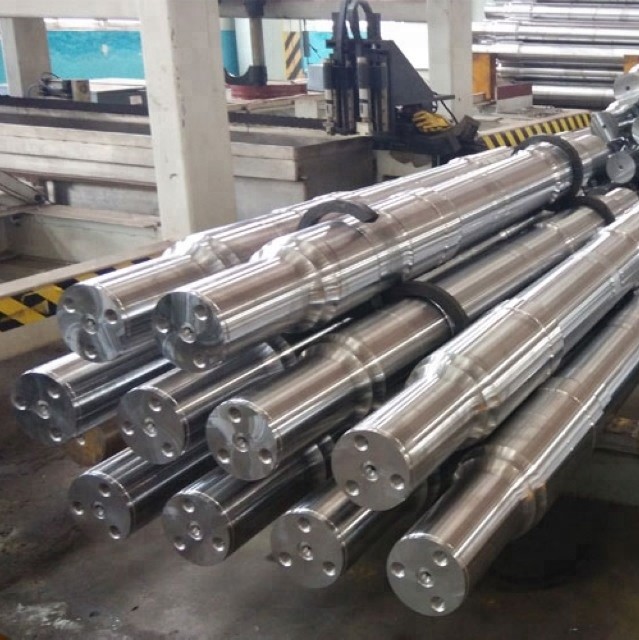

Kingrail Railway axle processing production line. To solve the problem that two kinds of axles can be produced at the same time, a railway axle processing production line, including the main line and the auxiliary line, the main line is arranged from left to right, the auxiliary line is arranged from right to left, and the main line is arranged in sequence from south to north Semi-finishing CNC lathe I, finishing CNC lathe I, CNC grinder I, and ordinary grinder I. The auxiliary lines are arranged from north to south with semi-finishing CNC lathe II, finishing CNC lathe II, CNC grinder II and ordinary Grinding machine II, the main line and the auxiliary line are equipped with a finished axle inspection area, and the axle inspection area is equipped with an axle flaw detector and an axle inspection area.

Production process of the railway axle

1. Billet Steel Review 2. Cutting 3. Heating 4. Forging 5. Straightening 6. Heat Treatment 7. Sampling Test 8. Ultrasonic Inspection 9. Rough Machining 10. Semi-Finish Machining 11. Finish Machining 12. Granding 13.Magnetic Particle Testing 14. Packing



The tests we conduct to ensure best quality
Chemical Analysis	Metallographic	Mechanical Analysis	Ultrasonic Testing
Magnetic Testing	Impact Testing	Hardness Testing	Surface Quality
Diemension Checks(CMM)	customers' acceptance check or third party check



Two Axle 60 Tons Loading Railway Train Axle for Russia GOST 1750 Train Railway Wheelset/Wheel Pair Assembly



Our Advantages of Two Axle 60 Tons Loading Railway Train Axle for Russia GOST 1750 Train Railway Wheelset/Wheel Pair Assembly :

1. We can supply various kinds of finished and semi-finished railway axle for railway rolling stocks.(Railway axle)



2. Accredited with AAR quality certificate, IRIS and Jinxi has maintained sound relations with Wabtec, GE, Bombardier, Alstom and Siemens multinational companies.



3. We can manufacture axles in accordance with EN 13261, AAR M-101, IRS 16/95, JIS E 4502, TB/T 2945, BS 5892, KS9220



4. Axle series applications:

Axle for railway passenger coach

Axle for railway freight wagon

Alex for locomotive

Alex for metro car

Alex for rail bus



5. Compertitive Price, and Fast Delivery Leadtime



If you are interested, please feel free to contact us. We will try our best to assist you and make you feel comfortable about your choice.
