Product Details:
|
| Track Gauge: | 570-1711 | Super- Elevation Range: | ±150 |
|---|---|---|---|
| Super- Elevation Resolution: | 0.2 | Track Gauge Resolution: | 0.01 |
| Track Gauge Accuracy: | ±0.25 | Super- Elevation Accuracy: | ± 0.45 |
| High Light: | 1435mm Railway Track Gauge Measurement,Digital Railway Track Gauge Measurement |
||

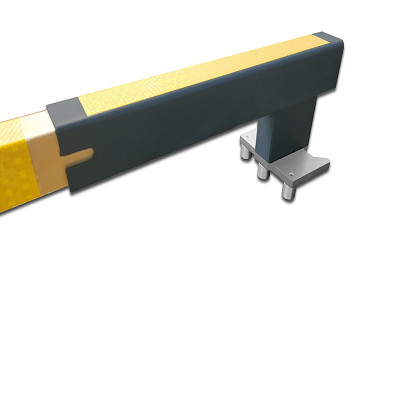

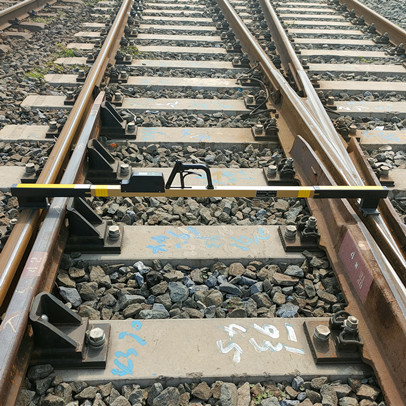

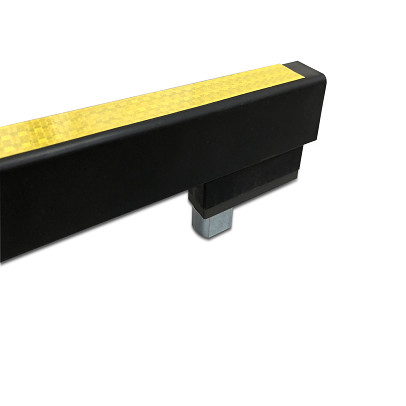

Digital Track Gauge is a special design for global market. It is used for measuring the track gauge, check rail gauge, back to back distance, Cant(super-elevation) and flangeway clearance.
This kind of gauge gauge for railway distance measurement relates to the field of gauge gauge, including gauge gauge. The inner side is provided with a connecting plate, and the bottom end of the limit block is connected with a spring, the top end of the connecting block is detachably connected with a connecting column, the outer side of the connecting column is sleeved with a sleeve, and the interior of the connecting column is provided with a connecting column. A connecting hole, the inside of the sleeve is provided with a fixing hole, and the outer side of the sleeve and one side of the connecting block are both fixed with a handle. By arranging the connecting column, the sleeve and the handle outside the sleeve, the utility model connects the connecting column and the connecting block when in use, and adjusts the overlapping area of the connecting column and the sleeve until the top of the sleeve reaches a suitable height , in the process of use, there is no need for staff to bend over frequently, so as to avoid the problem of staff's waist injury.
Digital Track Gauge is a specifide

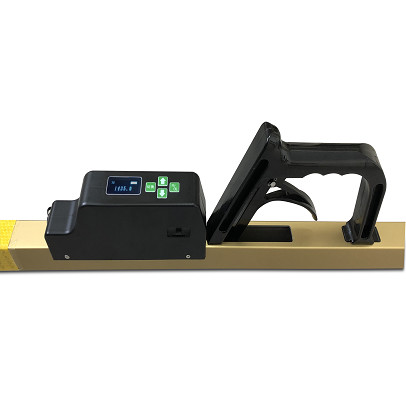

The measured values are clearly displayed on a large OLED display . Night-time and tunnel work ,legible even in direct sunlight are supported . All datas can be in one view in real-time . The speical display design can be flipped to show the inverse image ,this allow to work by right hand as well as left one.
The strong temperature compensation function eliminates the influence of temperature expansion and cold contraction on the measured values’accuracy.This guarantees the device can work normally at -30~+55 degrees. GJC-TJG Series also obtain CE Certification and CRCC Approval.
Digital Track Gauge is a speci
Unit:mm
| Model | GJC-TJG0 | CJC-TJG1 |
| Track gauge | 1384-1470 | 1384-1470 |
| Check rail gauge | 1364-1450 | 1364-1450 |
| Back to back distance | 1344-1430 | 1344-1430 |
| Super-elevation range | ±200 | ±200 |
| Flangeway clearance | 20-107 | 20-107 |
| Super-elevation resolution | 0.05 | 0.1 |
| Track gauge resolution | 0.01 | 0.1 |
| Track gauge uncertainty | ±0.25 | ±0.25 |
| Super-elevation uncertainty | ±0.3 | ±0.45 |
| Aluminum package box | Option | |
Digital Track Gauge is a speci
The digital track gauge measures the following parameters:
Track gauge
Super-elevation(cant)
Check rail gauge
Back to back distance
Flangeway clearance
Kingrail strength products:
Forged wheels for rail road vehicle, crane, mining cart, trolley
rail track materials: tie plates, clips, screw spikes, etc
tail track tools: gauges, maintenance equipment,etc
Already export to USA,the UK, Australia, Canada,Germany,etc, price and quality are competitive!
Quality, safety, on-time delivery and continual improvement are always present in everything that we do and offer.
Our mission statement is, “Fulfill and exceed our customers’ needs by offering superlative quality, effective cost control and responsive timing.”
