Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm

Certification
China Maanshan Kingrail Technology Co.,Ltd. certification
I'm Online Chat Now

Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm

Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm
Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm
Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm

Large Image :  Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm

Product Details:
Place of Origin: China
Brand Name: Kingrail
Certification: ISO
Model Number: Analogue Track Gauge
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000ton

Aluminium Alloy Material Rail Gauge Measurement Tool Gauge 1435mm

Description
Application: Track Maintainence, Railway Measurement Railway Inspection Application Working::: -40℃~ +60℃
Type:: Track Maintainence, Railway Measurement Railway Inspection Material::: Aluminium Alloy, Aluminium Alloy
Track Gauge Resolution: 570-1712 Track Gauge Accuracy: ±0.25
High Light:

Alloy Rail Gauge Measurement Tool

,

1435mm Rail Gauge Measurement Tool

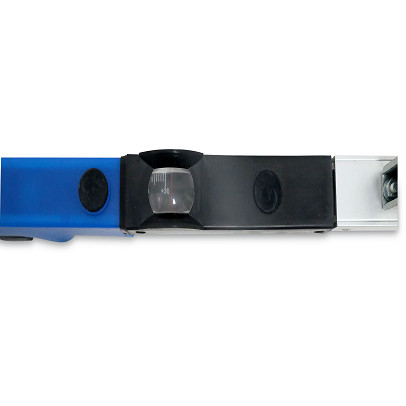

PRODUCT DESCRIPTION of Analogue Track Gauge for standard track 1435mm gauge wide and narrow meter track gauge

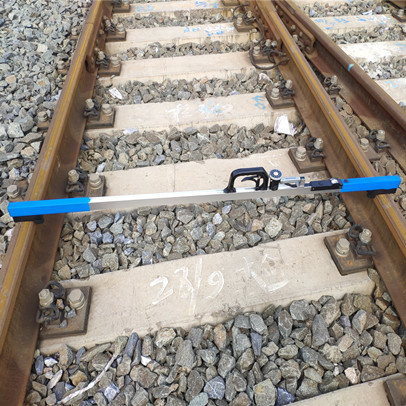

Analogue track gauge is used for measuring the railway track gauge, check rail gauge, back to back distance,super-elevation.

It is Suitbale for railway speed not greater than 160km/h.Traditional compass is more easier for rail workers to accept and operate. Light weight structure is convenient to carry.

he railway gauge ruler relates to a railway line measurement tool, which is an improvement on the existing railway gauge ruler, and is suitable for the measurement of the gauge, turnout parameters, level and superelevation of wide gauge, standard gauge and narrow gauge. The main technical feature is that the level bubble in the ultra-high level measuring mechanism adopts a compensation type bubble, and a zero line is engraved on the bubble, and an edge of the bubble is used to indicate the horizontal ultra-high value; the cover plate in the gauge measuring mechanism is on the edge of the ruler. The corresponding position is fixed with two screws, so that the magnifying glass on the fixed cover indicates that the scribe line is a free telescopic end relative to the screw fixing position, which eliminates the temperature error. The main advantage is that it can be automatically measured, not affected by temperature, the mechanism is simple, and it is easy to maintain.

BENEFITS of Analogue Track Gauge for standard track 1435mm gauge wide and narrow meter track gauge

Analogue track gauge has the advantages of affordable price, simple operate and easy calibrate.



TECHNICAL DATA of Analogue Track Gauge for standard track 1435mm gauge wide and narrow meter track gauge

unit(mm)

Model TGC-W-II 1000 TGC-W-II 1067 TGC-W-II 1435 TGC-W-II 1520 TGC-W-II 1676
Track gauge 975-1030 1042-1102 1410-1470 1493-1560 1650-1712
Check Rail Gauge 950-970 1013-1033 1381-1401 1466-1486 1622-1642
Back to back distance 907-927 970-990 1338-1358 1423-1443 1579-1599
Super-elevation range -150~+150 -150~+150 -150~+150 -160~+160 -150~+150
Super-elevation resolution 1 1 1 1 1
Track gauge resolution 1 1 1 1 1



APPLICATION of Analogue Track Gauge for standard track 1435mm gauge wide and narrow meter track gauge
