Brand Name: | Kingrail |
Model Number: | JG1- 600 |
MOQ: | Negotiable |
Price: | Negotiable |
Packaging Details: | standard export package, or as per customer request |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
The railway gauge ruler relates to a railway line measurement tool, which is an improvement on the existing railway gauge ruler, and is suitable for the measurement of the gauge, turnout parameters, level and superelevation of wide gauge, standard gauge and narrow gauge. The main technical feature is that the level bubble in the ultra-high level measuring mechanism adopts a compensation type bubble, and a zero line is engraved on the bubble, and an edge of the bubble is used to indicate the horizontal ultra-high value; the cover plate in the gauge measuring mechanism is on the edge of the ruler. The corresponding position is fixed with two screws, so that the magnifying glass on the fixed cover indicates that the scribe line is a free telescopic end relative to the screw fixing position, which eliminates the temperature error. The main advantage is that it can be automatically measured, not affected by temperature, the mechanism is simple, and it is easy to maintain.
Aluminum case is used for packing the track gauge .
Different size: 1000mm ,1067mm,1435mm ,1676mm etc
The railway gauge gauge calibrator has a chain-type transmission structure, which is specially used to measure the railway gauge level or superelevation parameters. Railway gauge ruler chain transmission structure, including chain, chain guide wheel, guide seat, guide column, guide wheel frame, chain adjustment sleeve, chain fastening frame, super high support plate, digital display device, hand wheel, etc., among which the chain One end is fixed on the chain adjustment sleeve through the chain connecting block, connected to the hand wheel through the chain guide wheel, and then through the chain guide wheel, and the other end is fixed on the super high support plate through the chain connecting block. The utility model is characterized in that the transmission is stable, the structure is firm, the use is convenient, the durability is durable, and the detection precision is high.

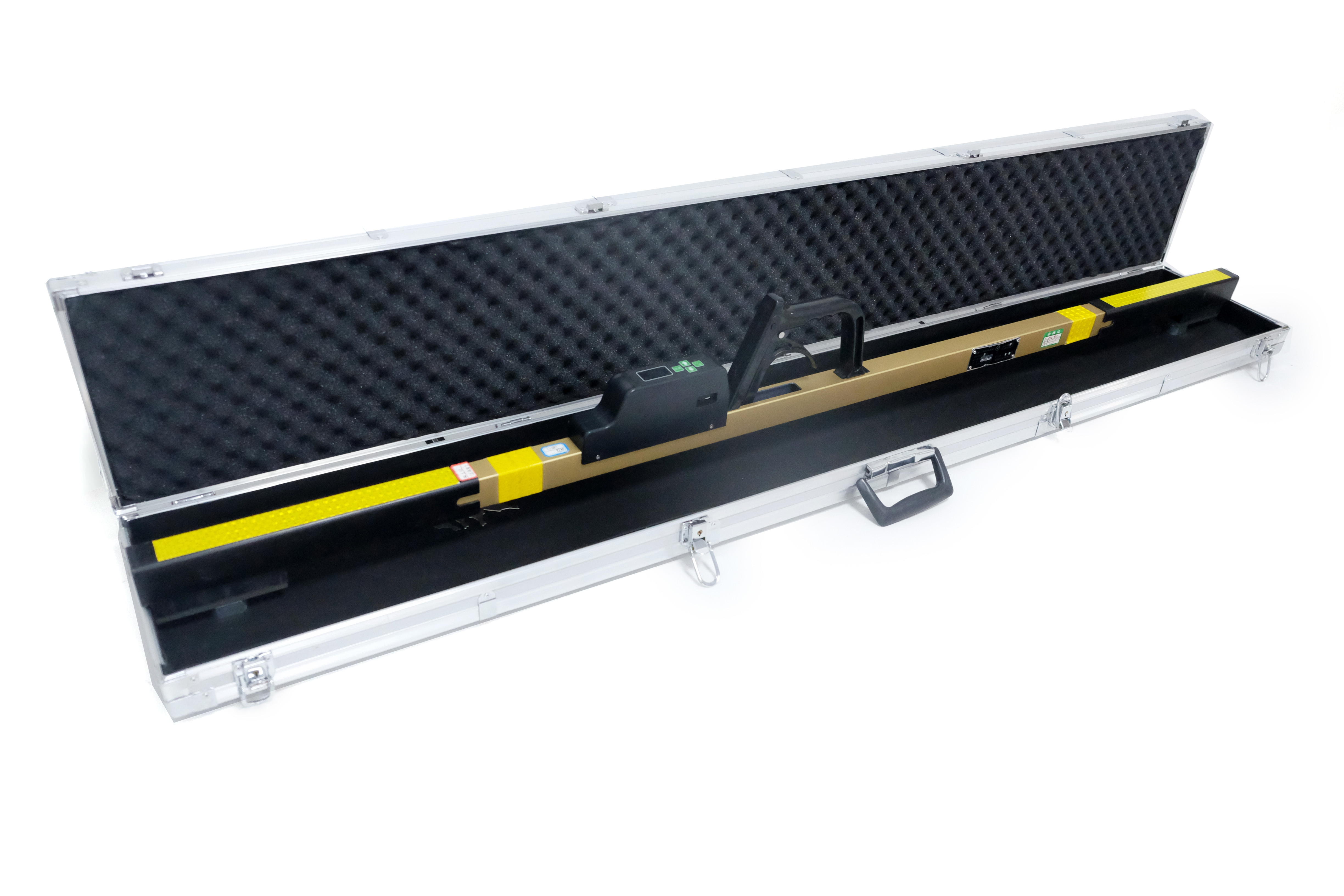

Aluminum case for 1435mm digital track gauge
|
