Mechanical Rail Track Measuring Equipment , Kingrail Rail Wear Measuring Gauge ODM

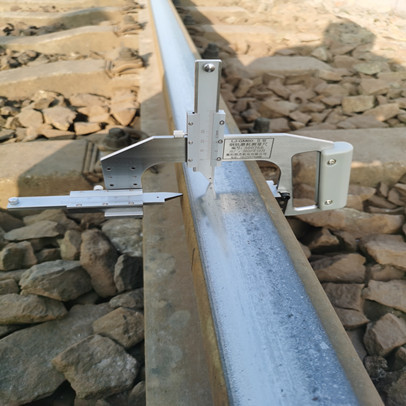

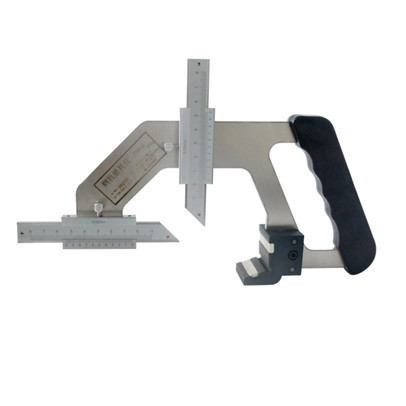

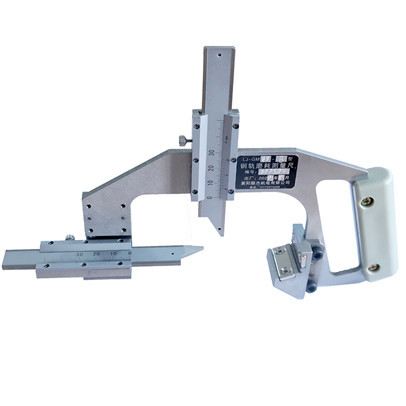

Mechanical rail wear gauge(rail head loss gauge) is mainly used to measure the vertical wear and lateral wear of the rail. The reasonable design makes it convenient operation and intuitive reading.

Mechanical rail wear gauge is easy to operate,high reliability,small volume,light weight etc.

This kind of gauge gauge for railway distance measurement relates to the field of gauge gauge, including gauge gauge. The inner side is provided with a connecting plate, and the bottom end of the limit block is connected with a spring, the top end of the connecting block is detachably connected with a connecting column, the outer side of the connecting column is sleeved with a sleeve, and the interior of the connecting column is provided with a connecting column. A connecting hole, the inside of the sleeve is provided with a fixing hole, and the outer side of the sleeve and one side of the connecting block are both fixed with a handle. By arranging the connecting column, the sleeve and the handle outside the sleeve, the utility model connects the connecting column and the connecting block when in use, and adjusts the overlapping area of the connecting column and the sleeve until the top of the sleeve reaches a suitable height , in the process of use, there is no need for staff to bend over frequently, so as to avoid the problem of staff's waist injury.

TECHNICAL DATA Mechanical Rail Head Wear Gauge analogue track gauge and digital track with score value of 0.01

Vertical wear of the rail

Lateral wear of the rail
