Kingrail Rail Track Measuring Equipment Offset Ruler 6cm Height
| Place of Origin | China |
|---|---|
| Brand Name | Kingrail |
| Certification | ISO |
| Model Number | Rail Offset Ruler |
| Minimum Order Quantity | 1 pc |
| Price | Negotiable |
| Packaging Details | standard export package, or as per customer request |
| Delivery Time | 1-30 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000000ton |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Superelevation Test | Yes | Package | PE Bag+PE Foam+Paper Carton |
|---|---|---|---|
| Specification | 1600*30*60mm | Warranty | 1 Year |
| Super- Elevation Resolution | 0.1 | Track Gauge | 570-1711 |
| Highlight | Kingrail Rail Track Measuring Equipment,6cm Rail Track Measuring Equipment |
||
Product Description

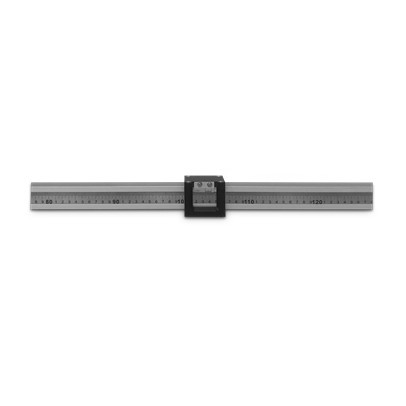

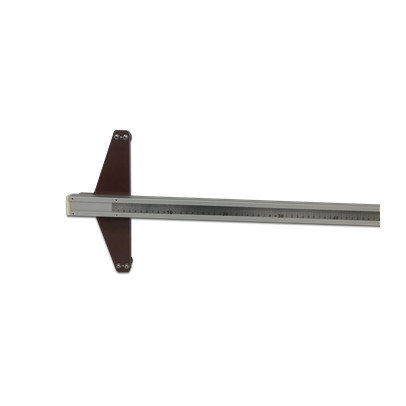

Mechanical Rail Offset Ruler
PRODUCT DESCRIPTION
This railway offset ruler is special equipment which is used for railway turnout offset distance.
BENEFITS
1. Durable
Adopt the high strength material, not easy to wear out.
2. High Accuracy: Reach 0.1mm.
3. Stable insulation performance
The ruler body is equipped with insulating board, which is made of epoxy glass fiber board (FR4). It has high mechanical strength performance under the temperature of -40 ℃-120℃. The size of the mechanical ruler is stable and never degenerates, and the electrical insulation performance is stable in high humidity environment.
4. Accept customized
5. Small coefficient of thermal expansion, stable ruler body :
The ruler body is inlaid with steel ruler , and it will have higher precision, small thermal expansion coefficient, which can eliminate the effect of temperature on precision.
6. Multi-functions with wide usage:could be used for measuring two kinds projects,suitable for different demands.
(1) Measure the offset distance for the standard track gauge turnout
(2) Could be used as track square ruler for measuring the right alignment of rail tracks
7. High hardness Measure Heads: Made of Rockwell 52 steel,high hardness and not easy to rust
TECHNICAL DATA
| Model | Measure range | Indication error |
| TZC-I | 100-1300 | ≤±0.4 |
| TZC-IA | 100-1400 | ≤±0.4 |
| TZC-II | 100-2000 | ≤±0.4 |
APPLICATION

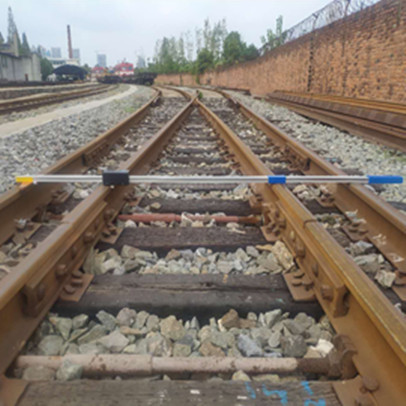

Mechanical rail offset ruler used for turnout offset distance
