Product Details:
Place of Origin: China
Brand Name: Kingrail
Certification: ISO
Model Number: 1 Meter
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export package, or as per customer request
Delivery Time: 1-30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000ton

1 Meter Rail Precision Straight Edge Ruler For Meter Rail Track Gauges Kingrail

Description
Usage: Rail Track Gauge Measement Market: Malaysia, Chile, Canada, US, UK, Germany
Specification: Standard Transport Package: Carton Box
Super- Elevation Resolution: 0.1 Track Gauge: 570-1711
High Light:

1Meter Precision Straight Edge Ruler

,

Kingrail Precision Straight Edge Ruler

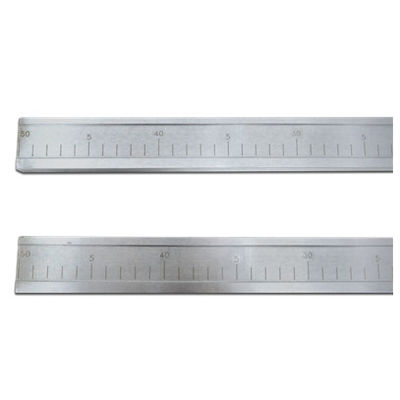

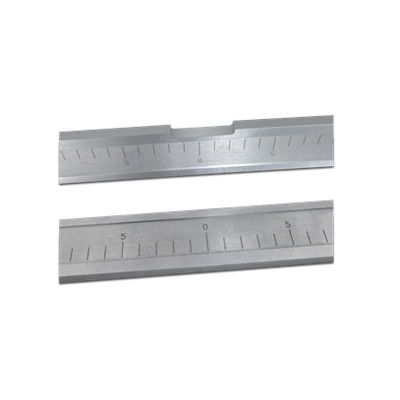

PRODUCT DESCRIPTION of 1 Meter Rail Precision Straight Edge Ruler For Meter Rail Track Gauges Kingrail

This item is used to check track rail from any deflections before and after welding.



BENEFITS of 1 Meter Rail Precision Straight Edge Ruler For Meter Rail Track Gauges Kingrail

1. The ruler body is made of high-quality carbon steel or stainless steel, and the scoring adopts laser scoring technology.

2. The cutting line is made of laser cutting process

3. The Straightness Measurer railway ruler is used to measure the railway rail flatness and wear.

4. Material: carbon steel

The railway gauge ruler relates to a railway line measurement tool, which is an improvement on the existing railway gauge ruler, and is suitable for the measurement of the gauge, turnout parameters, level and superelevation of wide gauge, standard gauge and narrow gauge. The main technical feature is that the level bubble in the ultra-high level measuring mechanism adopts a compensation type bubble, and a zero line is engraved on the bubble, and an edge of the bubble is used to indicate the horizontal ultra-high value; the cover plate in the gauge measuring mechanism is on the edge of the ruler. The corresponding position is fixed with two screws, so that the magnifying glass on the fixed cover indicates that the scribe line is a free telescopic end relative to the screw fixing position, which eliminates the temperature error. The main advantage is that it can be automatically measured, not affected by temperature, the mechanism is simple, and it is easy to maintain.
This kind of gauge gauge for railway distance measurement relates to the field of gauge gauge, including gauge gauge. The inner side is provided with a connecting plate, and the bottom end of the limit block is connected with a spring, the top end of the connecting block is detachably connected with a connecting column, the outer side of the connecting column is sleeved with a sleeve, and the interior of the connecting column is provided with a connecting column. A connecting hole, the inside of the sleeve is provided with a fixing hole, and the outer side of the sleeve and one side of the connecting block are both fixed with a handle. By arranging the connecting column, the sleeve and the handle outside the sleeve, the utility model connects the connecting column and the connecting block when in use, and adjusts the overlapping area of ​​the connecting column and the sleeve until the top of the sleeve reaches a suitable height , in the process of use, there is no need for staff to bend over frequently, so as to avoid the problem of staff's waist injury.

TECHNICAL DATA of 1 Meter Rail Precision Straight Edge Ruler For Meter Rail Track Gauges Kingrail

Model LJ-PC-1000
measuring range 0-1000mm
Measuring surface accuracy ≤0.04
Material of straight steel rail ruler carbon steel
Weight 2.6kg



APPLICATION of 1 Meter Rail Precision Straight Edge Ruler For Meter Rail Track Gauges Kingrail

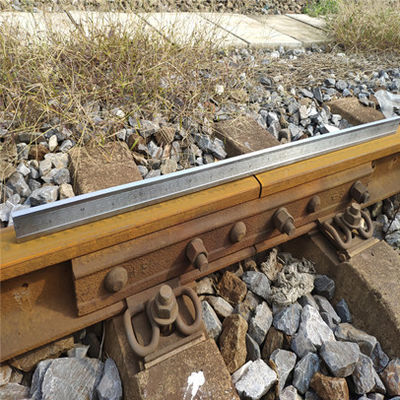

Rail straight ruler used for measuring rail weld

1 Meter Rail Precision Straight Edge Ruler For Meter Rail Track Gauges Kingrail 0

straight edge_副本.jpg
