Elastic Rail Clip
>
60Si2CrA Material Railroad E Clips , 44HRC Erc Rail Clip DIN 17221

60Si2CrA Material Railroad E Clips , 44HRC Erc Rail Clip DIN 17221

Brand Name: Kingrail
Model Number: e1609
MOQ: 10000
Price: USD$1-10 PER PC
Packaging Details: bulk bags and pallets or customized package
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
GB/T 1222,DIN 17221
Material:
60Si2CrA
Color:
Black
Hardness:
44-48HRC
Fatigue Life:
5 Millions Cycles Without Breaking
Surface:
Plain (oiled), Oxide Black, Color Painting
Standard Refers:
GB/T 1222,DIN 17221
Diameter:
ø16
Supply Ability:
100000000PCS PER YEAR
High Light:

60Si2CrA Railroad E Clips

,

Railroad E Clips DIN 17221

,

44HRC Erc Rail Clip

Product Description

Railroad Fasteners Railway Clamp Elastic Rail Clip Manufacturer Elastic Spring Clip Rail Spring Clip E Clip Skl Clip





Product Description

Railway parts is the root causes of vibration,supplier of china ,railway clip in order to overcome the vibration source, reduce the occurrence of rail joint diseases, use of railway fasteners is the best choice. increases the joint resistance.ensure that the railway transport safety. Therefore, the construction of the railway cargo rail transit from railway fasteners "support". The structure is compact, buckle pressure big, keep track ability, less workload maintenance , especially suitable for the large mechanical work line.our mainly export railway spring clips type have e1809 e1609 e1813 e1817 e2001 e2007 e2009 e2055 e2056 e2063 PR401 PR415 PR601 SKL-1 SKL-3 etc.

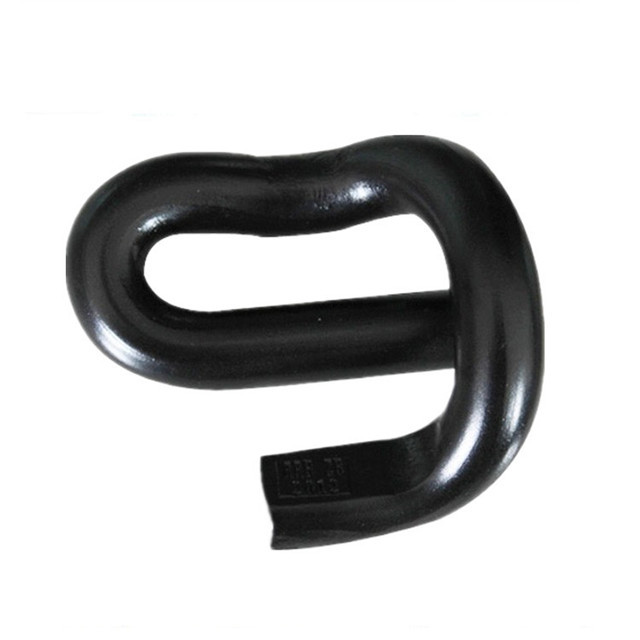

60Si2CrA Material Railroad E Clips , 44HRC Erc Rail Clip DIN 17221 0
Product detials :Railroad Fasteners Railway Clamp Elastic Rail Clip Manufacturer Elastic Spring Clip Rail Spring Clip E Clip Skl Clip

Name

Railroad Fasteners Railway Clamp Elastic Rail Clip Manufacturer Elastic Spring Clip Rail Spring Clip E Clip Skl Clip

Material

60Si2MnA

60Si2CrA

55Si2Mn

38Si7

Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03

C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03


Hardness

HRC 42-47


Fatigue life


5 millions cycles without breaking


Surface

Plain (oiled), Oxide black, color painting

Standard refers


GB/T 1222,DIN 17221

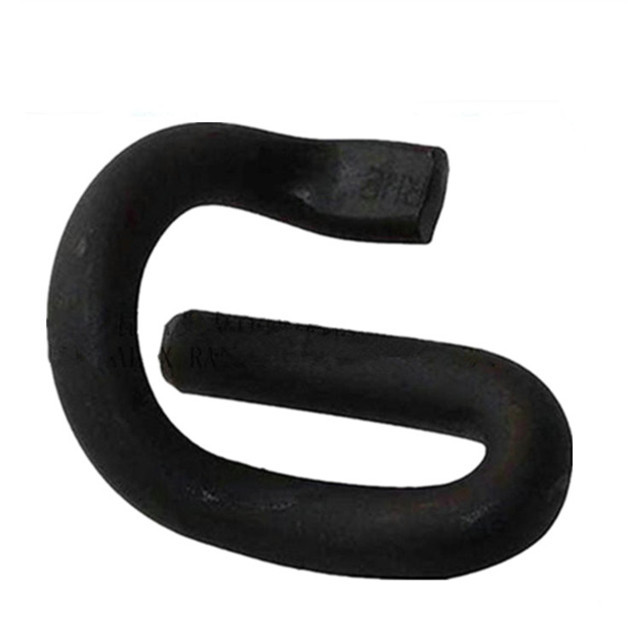

60Si2CrA Material Railroad E Clips , 44HRC Erc Rail Clip DIN 17221 1



Railroad Fasteners Railroad Fasteners Railway Clamp Elastic Rail Clip Manufacturer Elastic Spring Clip Rail Spring Clip E Clip Skl Clip Parameter

Description Specification Material
Fish Bolt 22×135, 24×135, 24×145 Q235
High-strength Fish Bolt 22×135, 24×135, 24×145 C45
Insulated Bolt 22×160, 24×160, 24×170 C45
T type bolt M24x110 Q235
Flat Washer 6×25×50 Q235
Spring Washer 20×8, 24×8, 26×8
Double Spring Washer 26×8
Screw Spike M22x185, M24x195 Q235
Square head screw spike 22x145, 22x155, 22x165 Q235A
Hexagon screw spike 22x145, 22x155, 22x165, 22x185, 22x195 Q235A
Dog Spike 16×165
Gauge apron 10#, 13#, 14#, 20# Q235
Antiseptic gauge apron 10# Q235
Steel Tie plate/ base plate   QT450-10
Rail anchor   QT450-10, Q235A, QT400-15
Rubber tie plate P43, P50, P60 Rubber
Elastic rail clip A,B Type 60Si2Mn
SKL serious Type 60Si2Cr, 38Si7
G Type 60Si2MnA
W Type
Antiseptic elastic rail clip B Type 60Si2MnA
Nylon apron block V type, 0-4#, 2-6# polyamide 66
Insulated Rail Gauge Rod ¢32, ¢36
Rail Gauge Rod ¢32, ¢36
Fish plate 43kg, 50kg, 60kg, 75kg B7. 45#
BS60, BS75R, BS80A, BS90A B6, B7
Insulated fish plate (43, 50, 60, 75).. B6, B7
UIC60, UIC54 50#, 45#



Railroad Fasteners Railway Clamp Elastic Rail Clip Manufacturer Elastic Spring Clip Rail Spring Clip E Clip Skl Clip
Rail clips processing procedures
1. Raw material: Premium grade spring steel sourced from a reliable and certified long term producer.
2. Shearing: The spring steel bar has to be sheared as per length required.
3. Heating: to forging temperature (950-1000 degrees Celsius), but over heating shall be avoided to check decarburization.
4. Forming: Proper heated bar is transferred to power press for forging.
5. Hardening: The forged rail clips are transferred to quenching tank. Dimensional accuracy and quench hardness of rail clips are checked before tempering.
6. Tempering: The rail clips are tempered at about 350 Celsius to achieve appropriate toughness in the spring.
7. Inspection: The products are then checked thoroughly as per China CRCC and customer required specification and design.
8. Packing: Clips can be packed in woven bags or upon customer requirement.

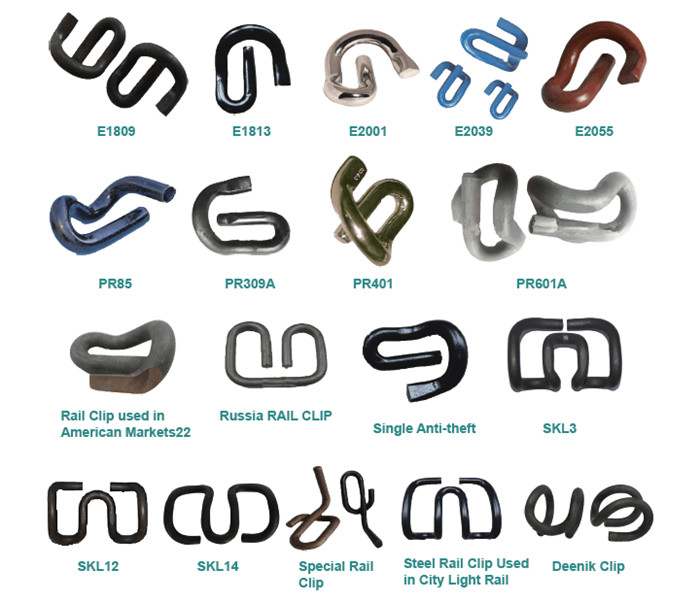

60Si2CrA Material Railroad E Clips , 44HRC Erc Rail Clip DIN 17221 2
Company Introduction:


Kingrail , your trustworthy rail clips manufacturer
Enriched with rich railway industrial experience, Kingrail can offer its clients an extensive range of heavy duty rail fastening clips, made up of premium quality and seamless performance, to be used to fasten rails to underlying tie plates. The rail clips produced by Kingrail are made up of premium grade spring steel sourced from a reliable and certified long term producer. After over 20 years' experience on producing rail elastic clips, AGICO has become the largest and most competitive production base of rail clips in China, qualified to tender nationally large and medium scaled rail projects under the China Ministry of Railways, both at home and abroad.


At each single step of manufacturing the clips are stringently tested and completely authenticated. To save time during installation in track, we can provide a special service by pre assembling a SKL clip with a T-bolt and a washer for the customer at our production base before delivery. Besides, corrosion protection layer of the clip surface can be applied.



Railroad Fasteners Railway Clamp Elastic Rail Clip Manufacturer Elastic Spring Clip Rail Spring Clip E Clip Skl Clip

Standard UIC standard BS standard JIS standard ISCR standard China standard South-American standard
Type UIC 54 / UIC 60 BS60A / BS75A / BS80A JIS37 / JIS50 ISCR50 / ISCR60 / ISCR70 A(I II) / B / III TJ45 / TJ57
Material 45#,55#,etc


Contact Us for Elastic Rail Clip Railway Fastening System Railroad Clip Rail Track High Tension Elastic Clip
If you have any questions, pls feel free to contact us as below:

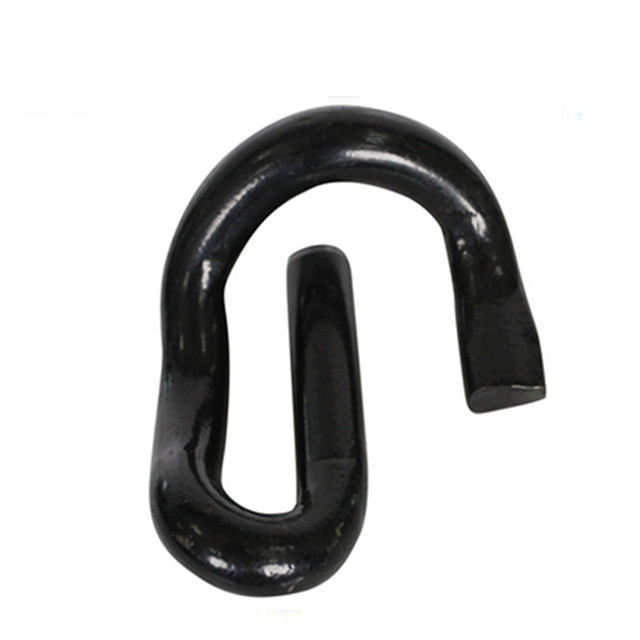

60Si2CrA Material Railroad E Clips , 44HRC Erc Rail Clip DIN 17221 3
