Product Details:
|
| Material: | 55Si2Mn | Color: | Black Or Plain |
|---|---|---|---|
| Hardness: | 44-48HRC | Fatigue Life: | 5 Millions Cycles Without Breaking |
| Surface: | Plain (oiled), Oxide Black, Color Painting | Standard Refers: | GB/T 1222,DIN 17221 |
| Diameter: | ø18 | Name: | Elastic Rail Clip For Railway Track Professional Processing Elastic Rail Clip Made In China |
| High Light: | Railroad Rail Clips OEM,Railroad Rail Clips ODM |
||

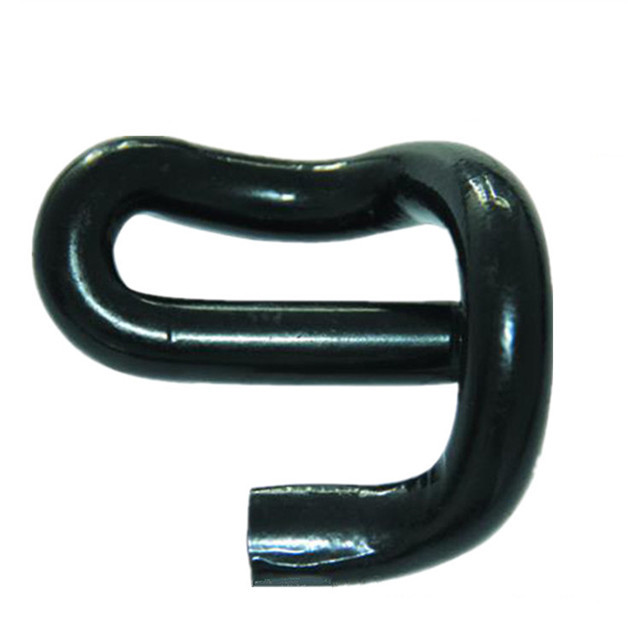

Elastic Railroad Rail Clips Kingrail OEM ODM Oxide Black Surface

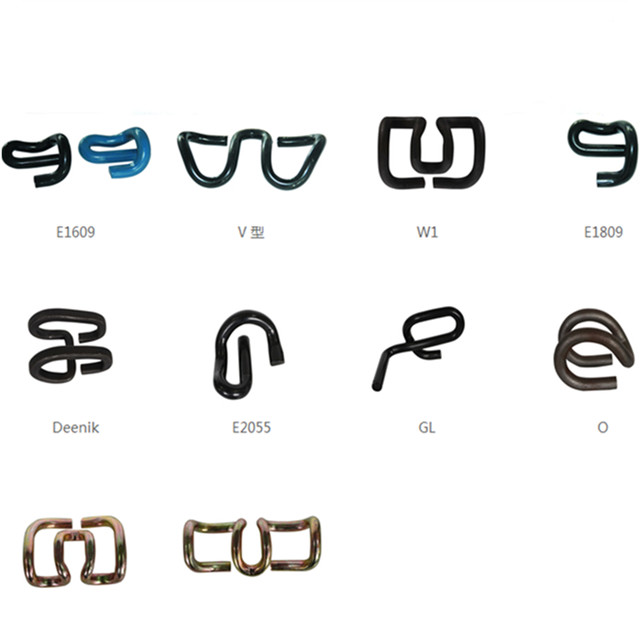

Railway parts is the root causes of vibration,supplier of china ,railway clip in order to overcome the vibration source, reduce the occurrence of rail joint diseases, use of railway fasteners is the best choice. increases the joint resistance.ensure that the railway transport safety. Therefore, the construction of the railway cargo rail transit from railway fasteners "support". The structure is compact, buckle pressure big, keep track ability, less workload maintenance , especially suitable for the large mechanical work line.our mainly export railway spring clips type have e1809 e1609 e1813 e1817 e2001 e2007 e2009 e2055 e2056 e2063 PR401 PR415 PR601 SKL-1 SKL-3 etc.
Name |
Elastic Rail Clip for Railway Track Professional Processing Elastic Rail Clip Made in China |
|||
Material |
60Si2MnA |
60Si2CrA |
55Si2Mn |
38Si7 |
Chemical composition(%) |
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
Hardness |
HRC 42-47 |
|||
Fatigue life |
5 millions cycles without breaking |
|||
Surface |
Plain (oiled), Oxide black, color painting |
|||
Standard refers |
GB/T 1222,DIN 17221 |
|||
| Description | Specification | Material |
| Fish Bolt | 22×135, 24×135, 24×145 | Q235 |
| High-strength Fish Bolt | 22×135, 24×135, 24×145 | C45 |
| Insulated Bolt | 22×160, 24×160, 24×170 | C45 |
| T type bolt | M24x110 | Q235 |
| Flat Washer | 6×25×50 | Q235 |
| Spring Washer | 20×8, 24×8, 26×8 | |
| Double Spring Washer | 26×8 | |
| Screw Spike | M22x185, M24x195 | Q235 |
| Square head screw spike | 22x145, 22x155, 22x165 | Q235A |
| Hexagon screw spike | 22x145, 22x155, 22x165, 22x185, 22x195 | Q235A |
| Dog Spike | 16×165 | |
| Gauge apron | 10#, 13#, 14#, 20# | Q235 |
| Antiseptic gauge apron | 10# | Q235 |
| Steel Tie plate/ base plate | QT450-10 | |
| Rail anchor | QT450-10, Q235A, QT400-15 | |
| Rubber tie plate | P43, P50, P60 | Rubber |

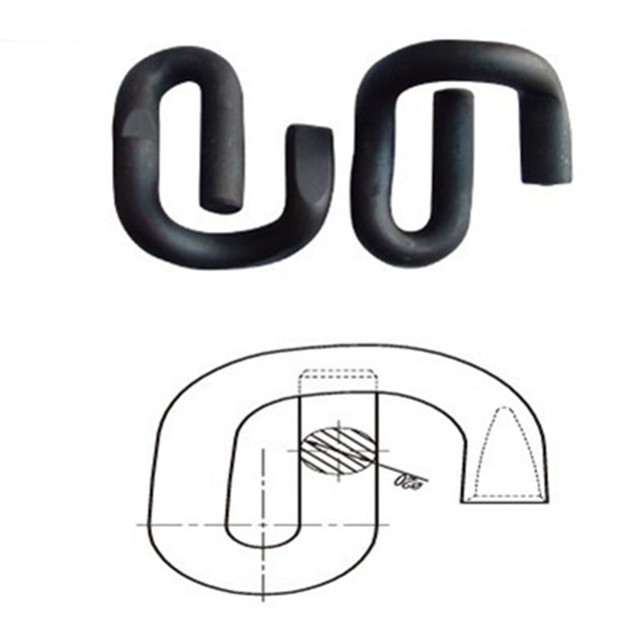

| Elastic rail clip | A,B Type | 60Si2Mn |
| SKL serious Type | 60Si2Cr, 38Si7 | |
| G Type | 60Si2MnA | |
| W Type | ||
| Antiseptic elastic rail clip | B Type | 60Si2MnA |
| Nylon apron block | V type, 0-4#, 2-6# | polyamide 66 |
| Insulated Rail Gauge Rod | ¢32, ¢36 | |
| Rail Gauge Rod | ¢32, ¢36 | |
| Fish plate | 43kg, 50kg, 60kg, 75kg | B7. 45# |
| BS60, BS75R, BS80A, BS90A | B6, B7 | |
| Insulated fish plate (43, 50, 60, 75).. | B6, B7 | |
| UIC60, UIC54 | 50#, 45# |
Elastic Railroad Rail Clips Kingrail OEM ODM Oxide Black Surface

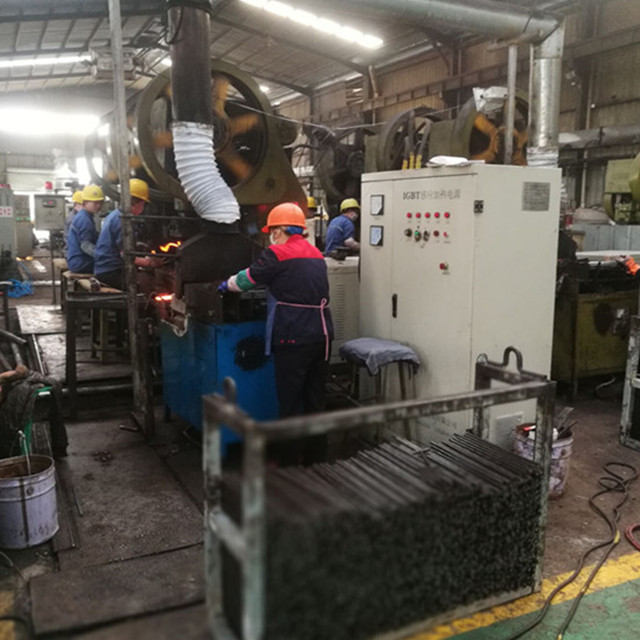

Rail clips processing procedures
1. Raw material: Premium grade spring steel sourced from a reliable and certified long term producer.
2. Shearing: The spring steel bar has to be sheared as per length required.
3. Heating: to forging temperature (950-1000 degrees Celsius), but over heating shall be avoided to check decarburization.
4. Forming: Proper heated bar is transferred to power press for forging.
5. Hardening: The forged rail clips are transferred to quenching tank. Dimensional accuracy and quench hardness of rail clips are checked before tempering.
6. Tempering: The rail clips are tempered at about 350 Celsius to achieve appropriate toughness in the spring.
7. Inspection: The products are then checked thoroughly as per China CRCC and customer required specification and design.
8. Packing: Clips can be packed in woven bags or upon customer requirement.
Company Introduction:
Kingrail , your trustworthy rail clips manufacturer

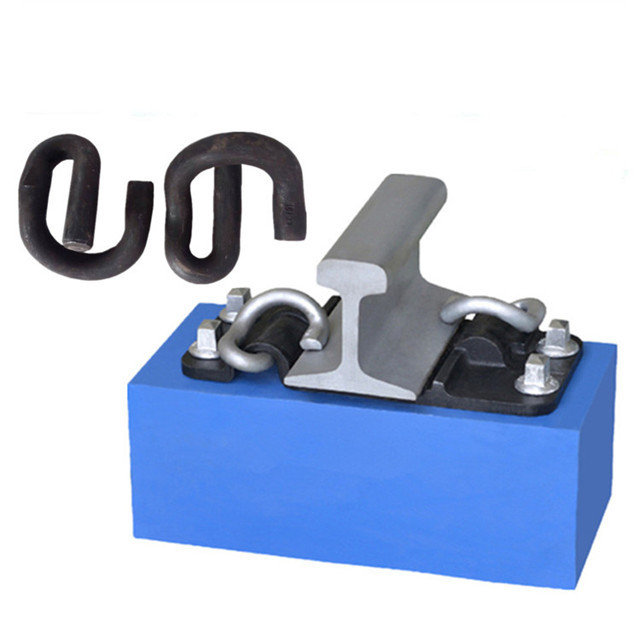

Enriched with rich railway industrial experience, Kingrail can offer its clients an extensive range of heavy duty rail fastening clips, made up of premium quality and seamless performance, to be used to fasten rails to underlying tie plates. The rail clips produced by Kingrail are made up of premium grade spring steel sourced from a reliable and certified long term producer. After over 20 years' experience on producing rail elastic clips, AGICO has become the largest and most competitive production base of rail clips in China, qualified to tender nationally large and medium scaled rail projects under the China Ministry of Railways, both at home and abroad.
At each single step of manufacturing the clips are stringently tested and completely authenticated. To save time during installation in track, we can provide a special service by pre assembling a SKL clip with a T-bolt and a washer for the customer at our production base before delivery. Besides, corrosion protection layer of the clip surface can be applied.
Elastic Railroad Rail Clips Kingrail OEM ODM Oxide Black Surface
| Standard | UIC standard | BS standard | JIS standard | ISCR standard | China standard | South-American standard |
| Type | UIC 54 / UIC 60 | BS60A / BS75A / BS80A | JIS37 / JIS50 | ISCR50 / ISCR60 / ISCR70 | A(I II) / B / III | TJ45 / TJ57 |
| Material | 45#,55#,etc |
