Product Details:
|
| Product: | Railway Fishplate For Steel Rail Fastening | Standard: | Uic, Arema, ASTM, BS, Tb |
|---|---|---|---|
| Specification(Kgs/M):: | 38KG.43KG.50KG.60KG.QU70.QU80.QU100.QU120 | Hole: | 4, 6 Holes |
| Usage: | For Jointing Light Rail,heavey Rails | Item: | Carbon Steel Railway Track |
| Name: | Top Grade Steel Fishplates In Railway Track Standard Fishplate For Elevator Lift T Type Guide Rail | Packaging: | On Pallets Or Seaworthy Packing. |
| High Light: | 6Holes Railway Fish Plates,4Holes Railway Fish Plates,Guide Rail Steel Fish Plates |
||

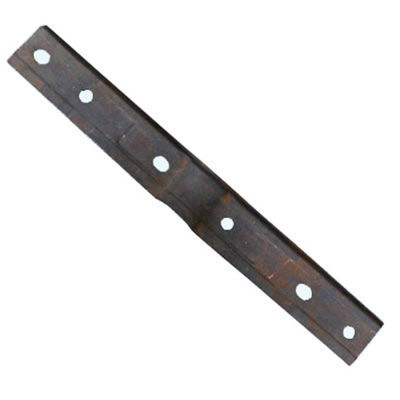

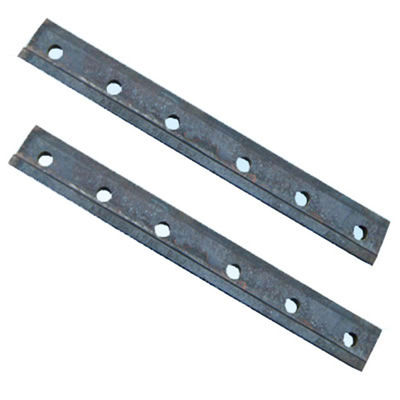

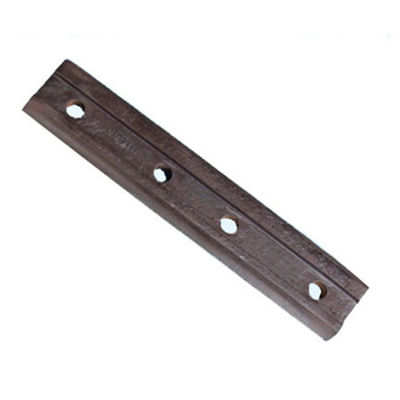

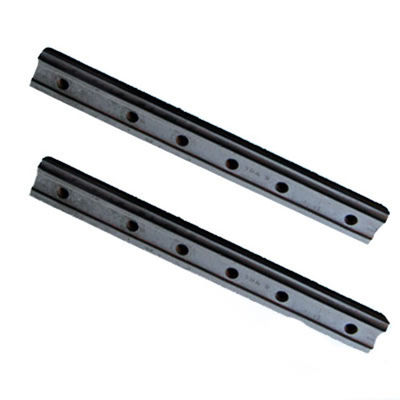

Steel Railway Fish Plates For T Type Guide Rail With 4 Holes 6 Holes
Introduction

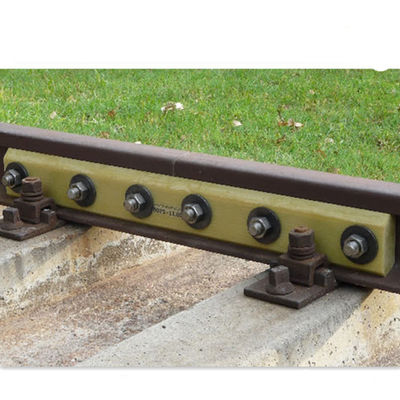

Fishtail splint (track joint splint) is commonly known as splint, also called fishtail plate, which plays a connecting role at the track joint. Divided into light rail, heavy rail and lift rail. The fishplate is a connecting fastener used for the connection between the track and the track.
The model of fish plate can be divided into 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg, 38kg, 43kg, 50kg, 60kg, 75kg according to the rail.
The light rail fishplate has 8KG.9KG.12KG.15KG.18KG.22KG.24KG.30KG. The insulated light rail fishplate is also known as the road splint.
heavy rail fish plate has 38KG.43KG.50KG.60KG.QU70.QU80.QU100.QU120 also known as lifting rail inclined joint splint.
Fish plate appearance quality:
(1) The rail after rolling shall be straight and shall not have significant bending and torsion. For the local bending and torsion of the light and heavy rails and the amount of their correction, the inclination of the rail end faces shall not exceed the standard.
(2) The surface of the rail should be clean and smooth, and there must be no defects such as cracks, crusting or scratches; the end faces must not have shrinkage marks and interlayers. The extent of the defects and geometrical quantities allowed for the overall surface of the light and heavy rails shall not exceed the standard.
Fishplate material: forged steel
Specification: These fish plate can apply to Light Rail, Heavy Rail and Crane Rail. Also can produce accoring to customers drawing.
British Standard Fish Plate |
||
Type |
Standard |
Material |
BS75R |
BS47-1 | EUROPEN GRADE 700 |
BS80A |
||
BS90A |
||
BS100A |
||
BS113A |
||
GB/TB Standard Fish Plate |
||
Type |
Standard |
Material |
43KG |
TB/T 2345-2008 | B7 |
50KG |
||
60KG |
||
75KG |
||
JIS Standard Fish Plate |
||
Type |
Standard |
Material |
37A |
JIS E 1102-2001 | SS 490 S20C |
50N |
||
CR73 |
||
CR100 |
||
BS113A |
||
AREMA 2007 Standard Fish Plate |
||
Type |
Standard |
Material |
T- Rail |
AREMA 2007 | AREMA GRADE/STEEL GRADE55# |
100lb.ASCE |
||
115RE |
||
132RE |
||
136RE |
||
Crane Rail Standard Fish Plate |
||
Type |
Standard |
Material |
104lb.CR |
TB/T 2345-2008 | B7 |
105lb.CR |
||
135lb.CR |
||
171lb.CR |
||
1751b.CR |
||
Standard length: 914.4mm drill hole or punching, four hole or six hole. |
||
Steel Railway Fish Plates For T Type Guide Rail With 4 Holes 6 Holes
Each rail application is different and must be engineered to maximise efficiency and lifespan, therefore the selection of the correct rail is critical to achieving this end.
| Type | C | B | A | D | Weight (kg/m) | Standard |
| P18 | 40 | 80 | 90 | 10 | 18.06 | YB222-63 |
| P24 | 51 | 92 | 107 | 10.9 | 24.46 | YB222-63 |
| P22 | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | GB11264-89 |
| P30 | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | GB11264-89 |
| P38 | 68 | 114 | 134 | 13 | 38.72 | GB183-63 |
| P43 | 70 | 114 | 140 | 14.5 | 44.65 | GB183-63 |
| P50 | 70 | 132 | 152 | 15.5 | 51.51 | GB 183-63 |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | GB3426-82 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | GB3426-82 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 | GB3426-82 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | GB3426-82 |
| Model | S (mm) |
S1 (mm) |
S2 (mm) |
S3 (mm) |
S4 (mm) |
S5 (mm) |
Rail Size |
| FP-24 | 400 | 29 | 98 | 137 | 98 | - | P18/ P22/ P24 |
| FP-30 | 490 | 36 | 128 | 127 | 128 | - | P30 |
| FP-38 | 790 | 65 | 160 | 110 | 120 | - | P38/ P43 |
| FP-80 | 500 | 52.5 | 121 | 138.5 | 120 | 43 | QU70/ QU80 |
In addition, it is worth mentioning that some special-purpose fishplates or used for special parts, such as special-shaped fishplates, fork-toe fishplates or fishplates used in tunnels, due to the more complex stress state, Maintenance is more difficult, and it is often affected by some corrosive air, so the failure rate is often higher than that of ordinary fishplates, and the damage to the line is also greater, so it should be paid enough attention
Lifetime Guarantee
According to the process of crack generation and expansion of the fishplate, and from our rough statistics of the failed fishplate, the early failure caused by the material accounts for a considerable proportion, especially the increase in material brittleness caused by coarse grains or severe mixed crystals. Case. In addition, the surface decarburization of materials should also be paid enough attention. Therefore, the production of fishplates must be carried out in strict accordance with the production process and the prescribed heat treatment system, and at the same time, the quality inspection must be passed to reduce the early failure caused by the material. Moreover, from the point of view of the complex use conditions of the fish plate, ensuring its production quality is also one of the most effective safety measures.
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
Kingrail supply various railway products:
railcar spares: wheels, axles, bearings, shafts, bogie spares, forging and casting products
rail track materials: fisplates, steel rail and accessories, tie plates, clips, bolts and nuts, etc
Both small and big orders are welcome!
