Product Details:
|
| Product: | Railway Fishplate For Steel Rail Fastening | Standard: | Uic, Arema, ASTM, BS, Tb |
|---|---|---|---|
| Specification(Kgs/M):: | 38KG.43KG.50KG.60KG.QU70.QU80.QU100.QU120 | Hole: | 4, 6 Holes |
| Usage: | For Jointing Light Rail,heavey Rails | Item: | Carbon Steel Railway Track |
| Name: | Special Shaped Fish Plate Rail Joint Bar Fishplate, Fish Pleat, Uic Fish Plate, Joint Bar Cheap Price | Packaging: | On Pallets Or Seaworthy Packing. |
| Shape: | Special-shaped | Color: | Painting Yellow |
| High Light: | Uic Fish Plate In Railway Track,RoHS Fish Plate In Railway Track,EMC Railway Track Fish Plate |
||
Special shaped fish plate rail joint bar Fishplate, Fish Pleat, Uic Fish Plate, Joint Bar Cheap Price
Fishtail splint (track joint splint) is commonly known as splint, also called fishtail plate, which plays a connecting role at the track joint. Divided into light rail, heavy rail and lift rail. The fishplate is a connecting fastener used for the connection between the track and the track.

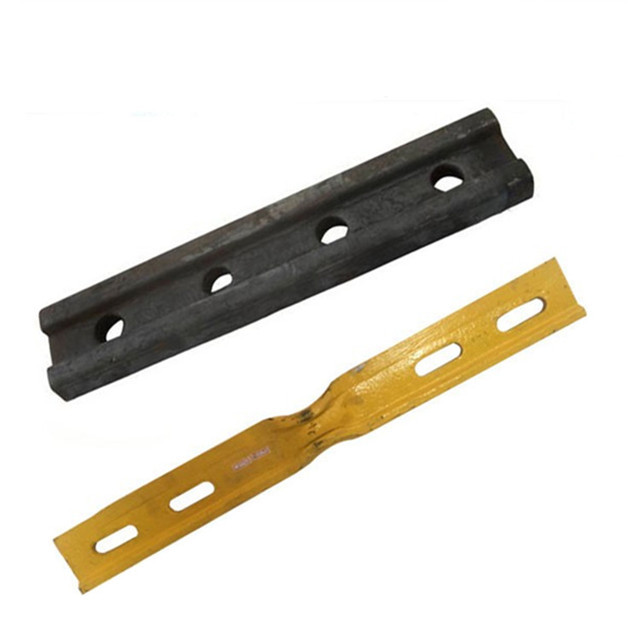

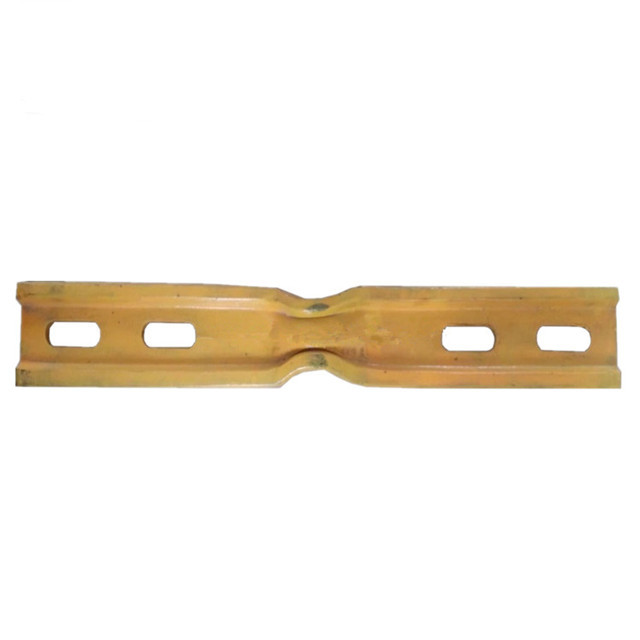

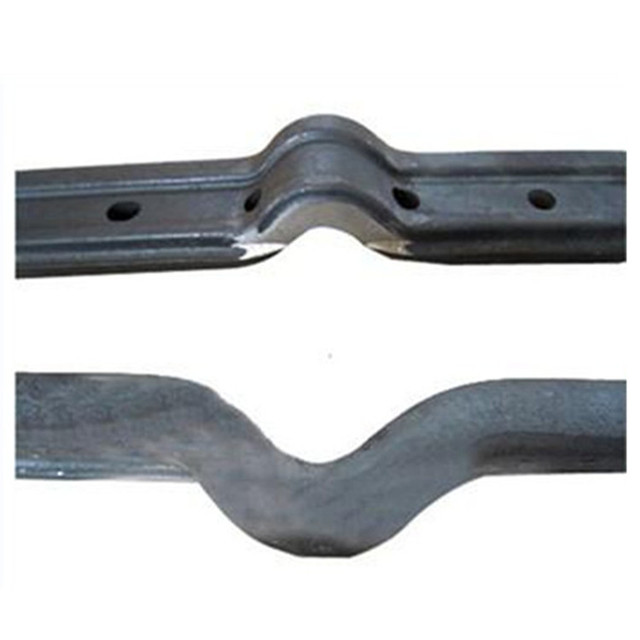

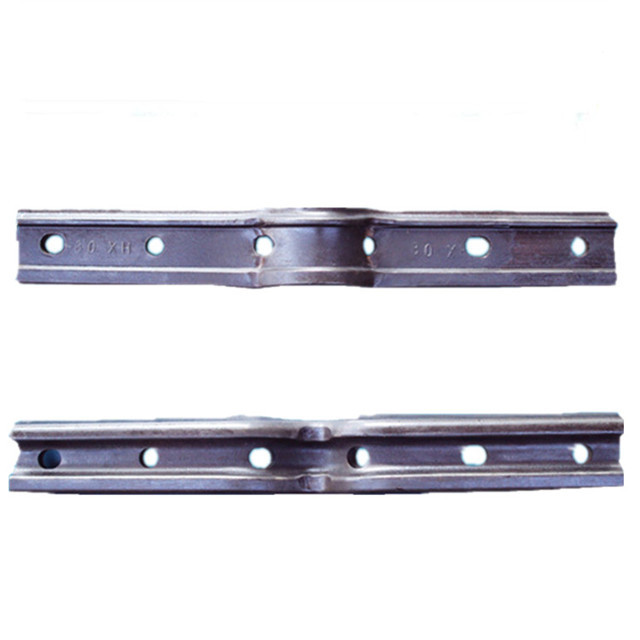

Special-shaped fish plate (compromise joint bar) is also called special-shaped joint splint. The cross-sectional dimensions of the two halves are different, and they are used to connect the connecting plates of two different types of rails.
Special-shaped rail variable-section fishplate (hereinafter referred to as special-shaped fishplate) and its supporting bridge-shaped backing plate At present, there are quite a lot of special-shaped rail joints on my country's railways, most of which appear at the joints of turnouts and main and station line tracks. It also occurs at the positive line rail type change. Common rail weight 50/60kg or rail weight 43/50kg .
Special-shaped fish plate product introduction:
Product name: special-shaped fish plate;
Specifications: 8kg-60kg;
Type: road splint, fish plate;
The special-shaped fish plate plays a connecting role at the track joint.
Specification: These fish plate can apply to Light Rail, Heavy Rail and Crane Rail. Also can produce accoring to customers drawing.
British Standard Fish Plate |
||
Type |
Standard |
Material |
BS75R |
BS47-1 | EUROPEN GRADE 700 |
BS80A |
||
BS90A |
||
BS100A |
||
BS113A |
||
GB/TB Standard Fish Plate |
||
Type |
Standard |
Material |
43KG |
TB/T 2345-2008 | B7 |
50KG |
||
60KG |
||
75KG |
||
JIS Standard Fish Plate |
||
Type |
Standard |
Material |
37A |
JIS E 1102-2001 | SS 490 S20C |
50N |
||
CR73 |
||
CR100 |
||
BS113A |
||
AREMA 2007 Standard Fish Plate |
||
Type |
Standard |
Material |
T- Rail |
AREMA 2007 | AREMA GRADE/STEEL GRADE55# |
100lb.ASCE |
||
115RE |
||
132RE |
||
136RE |
||
Crane Rail Standard Fish Plate |
||
Type |
Standard |
Material |
104lb.CR |
TB/T 2345-2008 | B7 |
105lb.CR |
||
135lb.CR |
||
171lb.CR |
||
1751b.CR |
||
Standard length: 914.4mm drill hole or punching, four hole or six hole. |
||
Fishplate Limiter for Railway Track and Forged Track Clamp Plate for Railway Track 50kg/M Railway Fish Plate Used for Steel Rail Joint Bar
Each rail application is different and must be engineered to maximise efficiency and lifespan, therefore the selection of the correct rail is critical to achieving this end.
| Type | C | B | A | D | Weight (kg/m) | Standard |
| P18 | 40 | 80 | 90 | 10 | 18.06 | YB222-63 |
| P24 | 51 | 92 | 107 | 10.9 | 24.46 | YB222-63 |
| P22 | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | GB11264-89 |
| P30 | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | GB11264-89 |
| P38 | 68 | 114 | 134 | 13 | 38.72 | GB183-63 |
| P43 | 70 | 114 | 140 | 14.5 | 44.65 | GB183-63 |
| P50 | 70 | 132 | 152 | 15.5 | 51.51 | GB 183-63 |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | GB3426-82 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | GB3426-82 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 | GB3426-82 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | GB3426-82 |
Special-shaped fish plate DIN Industry Standard for Rail China Supplier Railway Joint Bar Used on Railway Construction
Appearance quality of special-shaped fish plate:
(1) The rail after rolling should be straight, and there should be no significant bending and twisting. The local bending and torsion of light and heavy rails and their correction deformation, the inclination of rail end faces, etc., shall not exceed the standard requirements.
(2) The surface of the rail should be clean and smooth, and there should be no defects such as cracks, scabs, scratches, etc.; the end surfaces should not have shrinkage holes and interlayers. The allowable defects on the overall surface of the light and heavy rails and the extent of their geometrical quantities shall not exceed the standards specified in the standard.
Our main fish plate models are 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg, 38kg, 43kg, 50kg, 60kg, 75kg, S49, 115RE, 119RE, 132RE, 133RE, 136RE, 141RE, BS75R, BS80A, BS90A, BS95RBH, BS100A, BS113A, UIC54, UIC60, Insulation J75, Insulation J60, Insulation J50 Insulation 43, QU70, QU80, QU100, QU120, various insulation glued fishplates, etc. It also produces machined composite fishplates as well as cast iron, cast steel, forged, rolled and injection molded fishplates.
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4. 20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
