Carbon Steel Railway Track Fasteners , Railway Sleeper Screws Oxide Finish

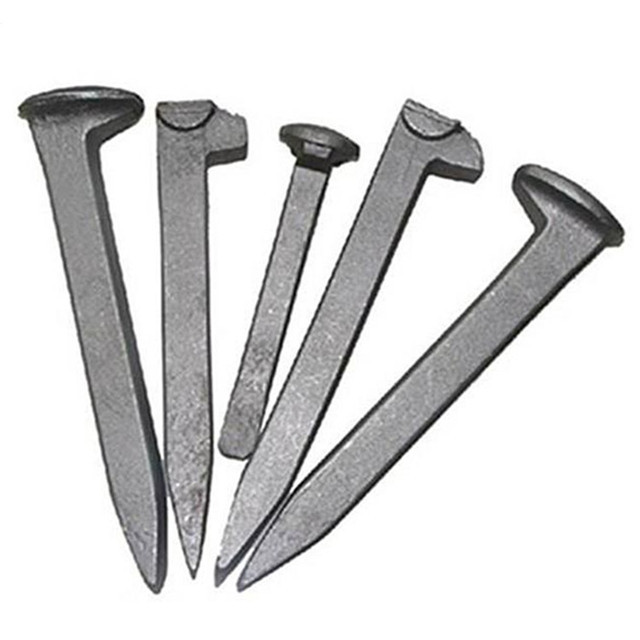

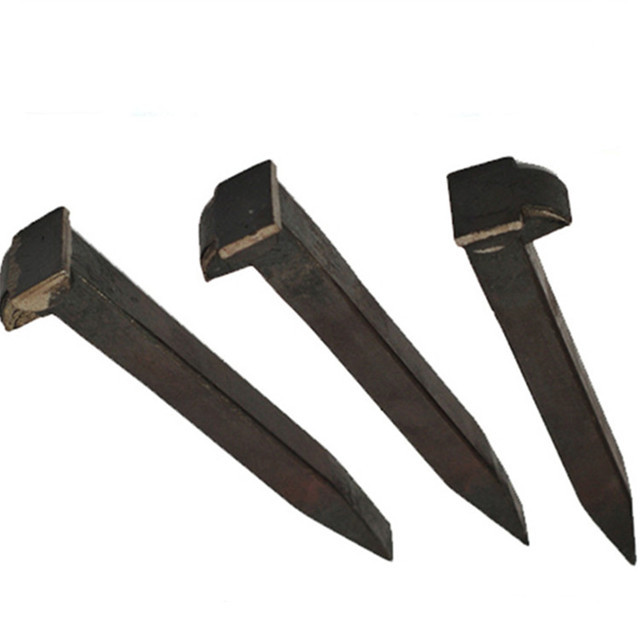

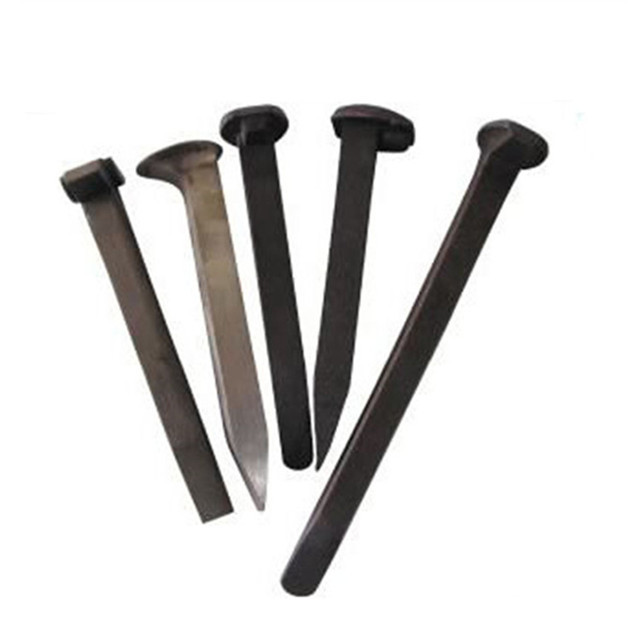

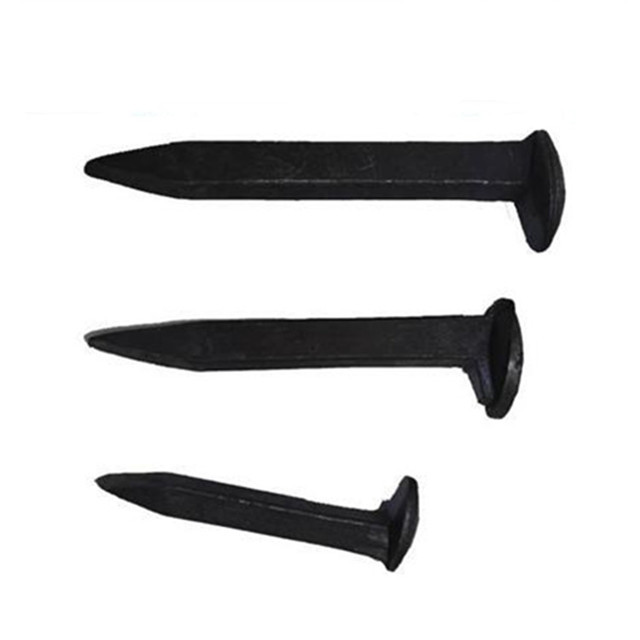

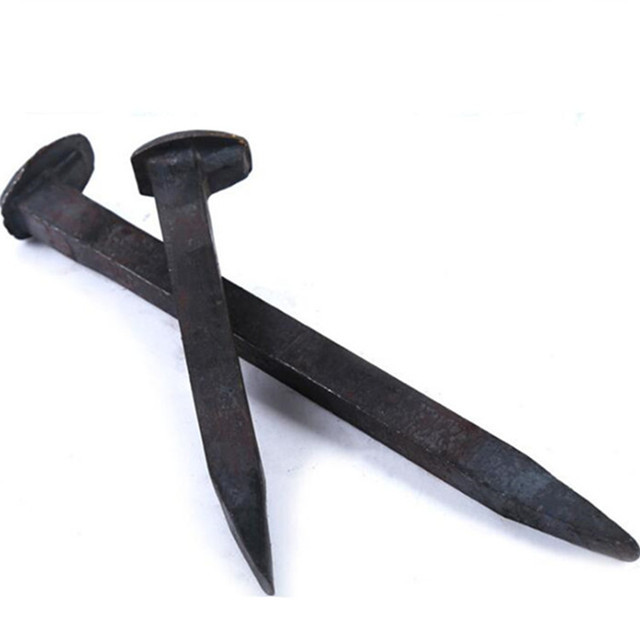

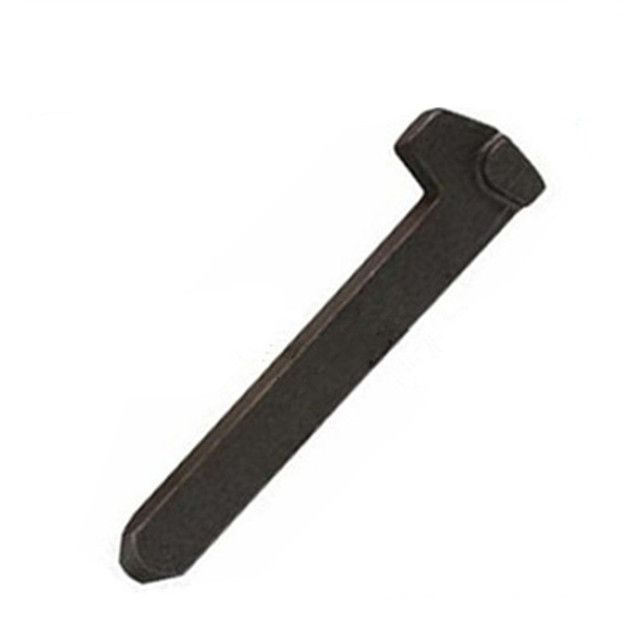

Black Oxide Finish Carbon Steel Screws Self Tapping Railway Screw Railroad Spikes High fastening dog spikes

DHS35 screw spike:
DHS35 rail sleeper screw spike can be used as a part of SKL14 rail fastening system
Diameter: 24mm
Length: 158mm and 161mm
T type screw spike :
T type screw spike with round thread, according to the standard NF-F 50014

Double-head screw spike:
Railway sleeper screw spike with two ends is also called as double-head screw spike, usually used together with the Nabla clip system. It is very popular in Africa. For meeting with the bending test, we use special material TD16 to produce the sleeper screw, bending 30 degree and straightening it, without crack.
Size: 23×174
Material: TD16

Dive spike:
The dive spike has wide applications, including timber construction highway crossing planks and panels, bridge and trestle guard rails, motor car set-off, docks, etc. The dive spike has advantages of low cost of installation and maintenance. Meet with the standard ASTMA66-87, cold bending 90 degree without crack.
Main Size: 5/8×10 and 7/8×7
Material: 35#
Tensile Strength Yield Strength Elongation 2"
414Mpa 207Mpa >18%

Hex head screw spike:
Screw spike with slotting head, as per UIC864-1
Size: 24×131 and 24×150
Any other type can be customized according to customers' drawings and grade.

Production Processs:
1. Raw material 2. Wire drawing 3. Wire drawing cutting 4. Head shaping 5. Edge cutting 6. Wire rolling 7. Heat treatment 8. Surface treatment 9. Final inspection 10. Packaging 11. Shipping

Our Services:
Kingrail produces and sells a variety of threaded rail screw spikes for wooden or cement sleepers, product specifications: Ss5, Ss8, Ss23, Ss25, Ss35, and 3V threaded spikes V20, V23, V26 and various trapezoidal thread bolts and so on. The grades are 4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 10.9, 12.9. Material grade: Q235, 35#, 45#, 60#, 40Cr, 20MnTiB, 35CrMo, 42CrMo. The surface can be treated with natural oiling, blackening, hot-dip galvanizing, electro-galvanizing, waxing, dacromet, etc. Ruika's rail screw spike production places great emphasis on quality control and management. The production of our rail screw spikes is fully controlled in accordance with the ISO9001-2008 quality system, and we have also obtained a railway product production license from the Ministry of Railways of China. We have a complete set of testing equipment to ensure the quality of all our rail screw spikes and meet customer requirements.Black Oxide Finish Carbon Steel Screws Self Tapping Railway Screw Railroad Spikes High fastening dog spikes introduction

Rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail tie plates or rail. Rail screw spike is usually made of Q235 steel. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.

Kingrail uses An automatic production system for spikes is adopted, including an automatic spike feeder, a spike heating machine and a spike rolling machine; the automatic spike feeder includes a spike feeding line, a stepped feeder and a discharge mechanism , the spike feeding line is used to transport the spikes to the stepped feeder, and the stepped feeder sends the spikes to the discharge mechanism by the stepped feeding method; the spike heating machine is located in the automatic feeding of the spikes. The end of the discharging mechanism of the machine includes a turntable feeding mechanism and a heating mechanism. The heating mechanism is arranged on the conveying route of the turntable feeding mechanism to heat the road studs on the turntable feeding mechanism; There is a robot gripper between the feeding mechanisms, and the robot gripper grabs the road stud after passing through the heating mechanism and moves it to the road stud thread rolling machine for thread rolling. The invention realizes the automatic and systematic production of the road stud and improves the production efficiency.

Rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail tie plates or rail. Rail screw spike is usually made of Q235 steel. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.

Ss series rail screw spike:
Ss series rail screw spike is designed according to the standard UIC864-1
Type Dimension (mm) Weight (Kg)
Ss5-150 M24×150 0.545
Ss8-140 M24×140 0.528
Ss8-150 M24×150 0.548
Ss8-160 M24×160 0.568
Ss23-160 M24×160 0.645
Ss25-165 M24×165 0.625
Ss35-161 M24×160 0.657

ASTMA66-87 screw spike:
We also supply the railway sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available. Common sizes include 3/4", 7/8", 15/16"
Screw spike with big disk:
Screw spike with big disk for Africa and South America
Rail screw spikes with big disk are mostly applied in South America and Africa
Diameter: 22mm, 23mm
Length: 115mm, 133mm, 178mm
3V sleeper screw:
The mechanical properties of 3V sleeper screw are in accordance with NF F 50006,
Tension strength: 700MPA (min),
Elongation: 12% (min),
Cold bending: 30 degree without crack.
Type Dimension(mm) Weight (Kg)
V20-135 M20×135 0.438
V23-115 M23×115 0.48
V23-135 M23×135 0.55
V23-155 M23×155 0.62
V23-215 M23×215 0.78
V26-115 M26×115 0.55

High tension screw spike:
High tension screw spike is also called as screw spike for wooden sleeper. Size: 15/16×6-1/2.
Tensile Strength Yield Strength Elongation Reduction of Area Hardness
120,000psi(min) 92,000psi(min) 14%(min) 35%(min) HRC22-HRC3

Coach screw:
Coach screw is usually used for the mining industry in South Africa.
Diameter: 18mm
Length: 65mm and 75mm
Material: Q195 and Q235

As for the cost, the rail screw spike require higher cost than the rail dog spike but has the advantage of greater fixing power; approximately twice that of a rail spike, and can be used in combination with spring washers.
