|Available Material:||High Strength Steel, Stainless Steel, Carbon Steel||International Standard:||DIN, ANSI, GB, JIS, Bsw, GOST|
|Used:||Railway Fastening Syestem||Head Type:||Hex|
|Class/Grade:||3.6, 4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9||Surface Finishing:||Hot DIP Galvanizing, Blu-White Zinc Plated|
Black Railway Track Fasteners,
M100 Railway Track Fasteners,
Fish Tail Bolt M6
High Strength Grade 8 ANSI Fishtail Bolt for Railway High Quality Fishtail Anchor Bolt for Sale

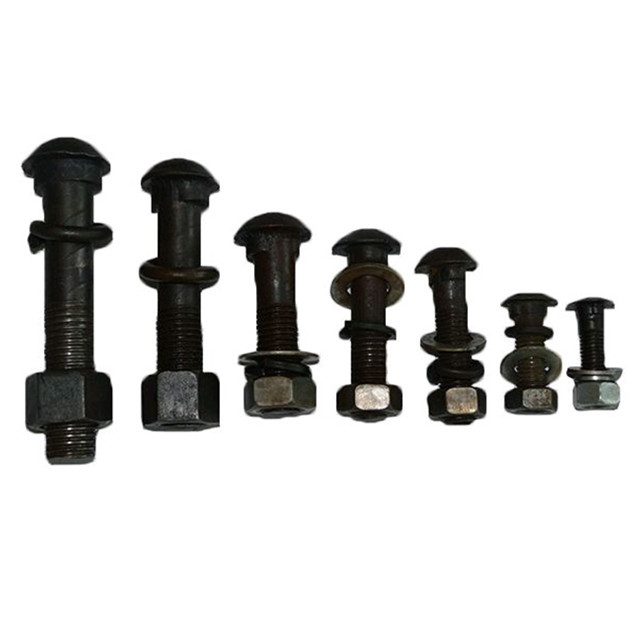

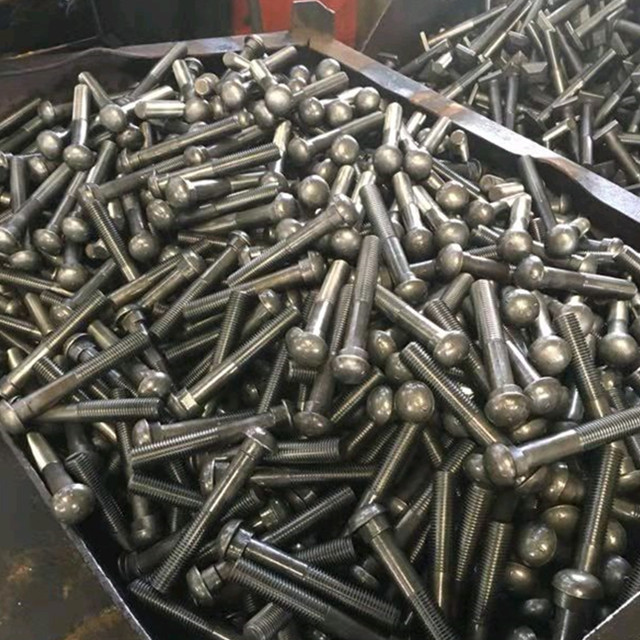

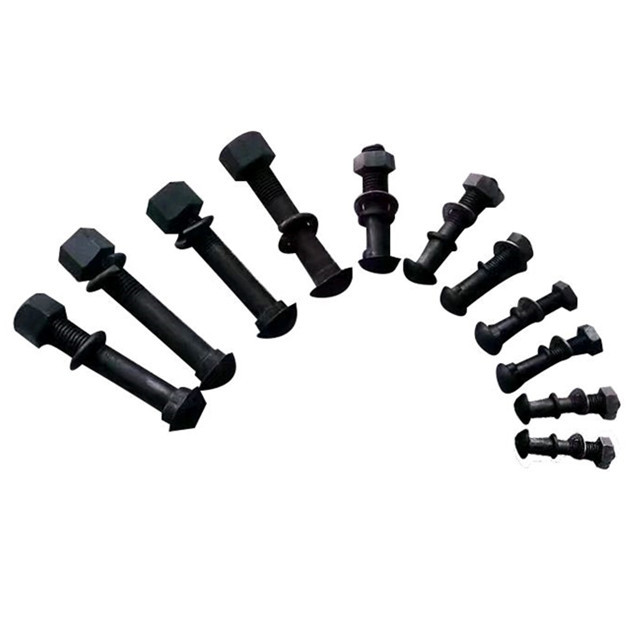

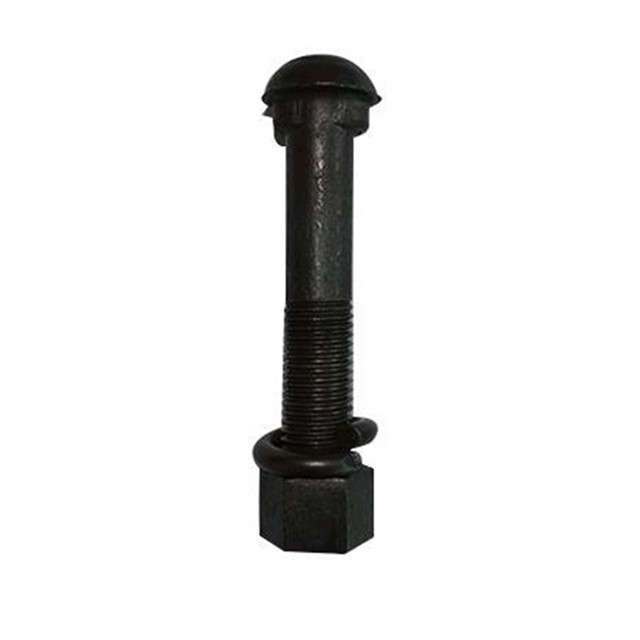

Overview of fishtail bolts
Fishtail bolts (fishtail wires) are mostly used in the connection of track joint splints (fishtail plates) for fixing, and sometimes hexagonal bolts can be used instead.
Usage of fishtail bolts
Fishtail bolts are mainly used in track laying in the metallurgical industry, coking industry, and iron and steel industry, and the rail and rail joints are connected and fastened.
Type and material of fishtail bolts
Models are Φ14×70, Φ16×75, Φ18×90, Φ20×90, Φ22×135, Φ24×135, Φ24×145, Φ24×170, etc. Generally, it is hot-pressed by friction press, the buckle length is 50mm, and there are also cold Upsetting is mostly used in the connection of rail joints.
Materials are: Q235 and 45# steel and insulated fishtail bolts, etc.
A bolt is a form of threaded fastener with an external male thread. Bolts are thus closely related to,
and often confused with, screws.
A hex cap screw is a cap screw with a hexagonal head, designed to be driven by a wrench (spanner).
An ASME B18.2.1 compliant cap screw has somewhat tighter tolerances than a hex bolt for the head height and the shank length. The nature of the tolerance difference allows an ASME B18.2.1 hex capscrew to always fit where a hex bolt is installed but a hex bolt could be slightly too large to be used where a hex cap screw is designed in.
ASME B 18.10; DIN 5903
|Length:||≤9m or 30feet|
|Material:||Carbon Steel, Alloy Steel, Stainless Steel, Brass|
|Grade:||Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9
ASTM A193 / ASTM A193M Grade B5 (AISI 501)
ASTM A193 / ASTM A193M Grade B6, B6X (AISI 410)
ASTM A193 / ASTM A193M Grade B7, B7M (AISI 4140, AISI 4142, AISI 4145, AISI 4140H, AISI 4142H, AISI 4145H
ASTM A193 / ASTM A193M Grade L7,L7M,L43
ASTM A193 / ASTM A193M Grade B16
ASTM A193 /A193M, ASTM A320 /A320M Grade B8, B8A (AISI 304, AISI 304L, AISI 304H)
ASTM A193 /A193M, ASTM A320 /A320M Grade B8C, B8CA (AISI 347, AISI 347H)
ASTM A193 /A193M, ASTM A320 /A320M Grade B8M, B8MA, B8M2, B8M3 (AISI 316, AISI 316L, AISI 316H)
ASTM A193 /A193M, ASTM A320 /A320M Grade B8P, B8PA (AISI 305)
ASTM A193 /A193M, ASTM A320 /A320M Grade B8N, B8NA (AISI 304N)
ASTM A193 /A193M, ASTM A320 /A320M Grade B8MN, B8MNA (AISI 316N)
ASTM A193 /A193M, ASTM A320 /A320M Grade B8MLCuN, B8MLCuNA
ASTM A193 /A193M, ASTM A320 /A320M Grade B8T, B8TA (AISI 321, AISI 321H)
ASTM A193 /A193M, ASTM A320 /A320M Grade B8A, B8RA
ASTM A193 /A193M, ASTM A320 /A320M Grade B8S, B8SA
ASTM A193 /A193M, ASTM A320 /A320M Grade B8LN, B8LNA (AISI 304N, AISI 304LN)
ASTM A193 /A193M, ASTM A320 /A320M Grade B8MLN, B8MLNA (AISI 316N, AISI 316LN)
|Finish:||Plain, Zinc Plated(Clear/Blue/Yellow/Black), H.D.G, PTFE,Zinc Nickel,Geomet,Dacromet,Zinteck,Magni|

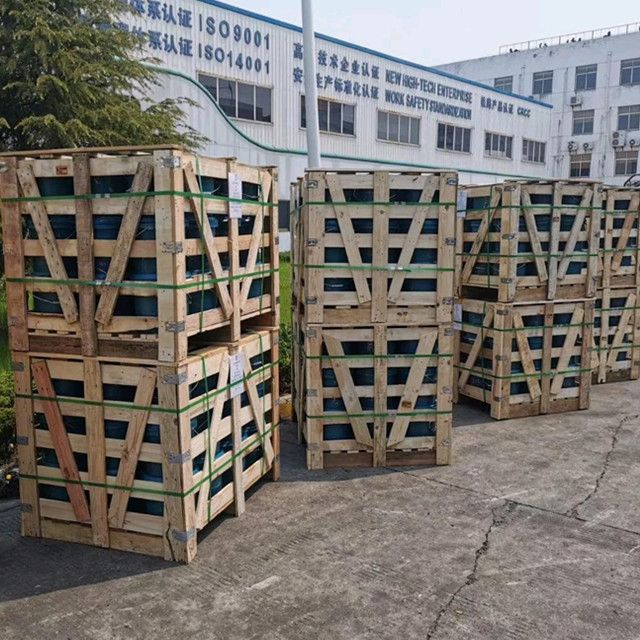

|Packing:||Bulk in cartons (25kg Max.)+wood Pallet, woven bag then pallet, according to customer special demand|
|Application:||Oil&Gas; Structural Steel; Metal Building; Tower&Pole; Wind Energy; Mechanical Machine; Home Decorating|
|Equipment:||Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester, 3D detector, Projector, Magnetic flaw detecter, Spectrometer|
|Supply Ability:||1000 tons per month|
|MOQ:||According to customer demand|
|Payment:||T/T, L/C, D/A , D/P ,West Union,Paypal.etc|
|Market:||Europe/South&north America/East&South East Asia/Middle East/Australia and etc.|
|Professional:||More than 15 years of experience in the fasteners industry Our Main market is North&South America and proficient in DIN/ASME/ASTM/IFI standard.|
|Our advantage:||One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; Supply Material and Test Reports; Samples for free|
|Notice:||Please let's know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us|
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4.20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
