Product Details:
|
| Available Material: | High Strength Steel, Stainless Steel, Carbon Steel | International Standard: | DIN, ANSI, GB, JIS, Bsw, GOST |
|---|---|---|---|
| Used: | Railway Fastening Syestem | Head Type: | Cup Tap Head And Oval Neck |
| Class/Grade: | 3.6, 4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9 | Surface Finishing: | Hot DIP Galvanizing, Black Or Plain Zinc Plated |
| Finish: | Plain | Specification: | M6-M100 |
| Name: | Wholesale Customized Size Round Tap Head Square Lag Neck Hot DIP Galvanized Grade 5,8 ,8.8 Fishtail-Bolts Track Bolt | ||
| High Light: | ODM Black Square Head Lag Bolts,Fishtail Black Square Head Lag Bolts,Grade 8.8 Black Lag Bolts |
||
Wholesale Customized Size Round Tap Head Square Lag Neck Hot DIP Galvanized Grade 5,8 ,8.8 Fishtail-Bolts Track Bolt

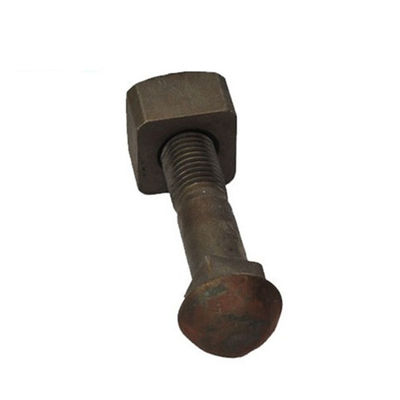

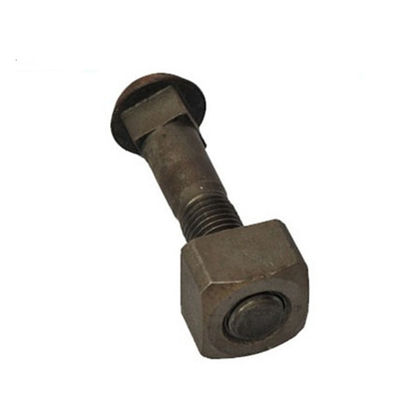

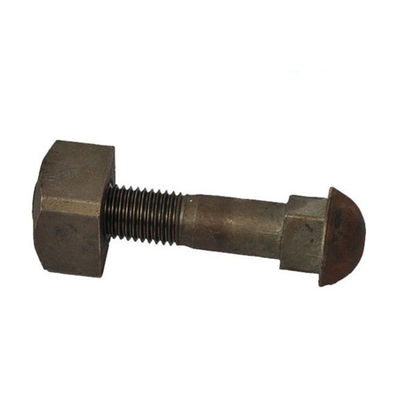

Overview of fishtail bolts
Fishtail bolts (fishtail wires) are mostly used in the connection of track joint splints (fishtail plates) for fixing, and sometimes hexagonal bolts can be used instead.
Usage of fishtail bolts
Fishtail bolts are mainly used in track laying in the metallurgical industry, coking industry, and iron and steel industry, and the rail and rail joints are connected and fastened.
Type and material of fishtail bolts
Models are Φ14×70, Φ16×75, Φ18×90, Φ20×90, Φ22×135, Φ24×135, Φ24×145, Φ24×170, etc. Generally, it is hot-pressed by friction press, the buckle length is 50mm, and there are also cold Upsetting is mostly used in the connection of rail joints.
Materials are: Q235 and 45# steel and insulated fishtail bolts, etc.
Bolts, mechanical parts, cylindrical threaded fasteners with nuts. Bolt: A type of fastener consisting of a head and a screw (a cylinder with an external thread), which needs to be matched with a nut to fasten and connect two parts with through holes. This form of connection is called a bolted connection. If the nut is unscrewed from the bolt, the two parts can be separated, so the bolt connection is a detachable connection.
Wholesale Customized Size Round Tap Head Square Lag Neck Hot DIP Galvanized Grade 5,8 ,8.8 Fishtail-Bolts Track Bolt
Fishtail bolt grades:
According to relevant standards, the bolt performance grades are divided into more than 10 grades such as 3.6, 4.6, 4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9, etc. Among them, the bolts of grade 8.8 and above are made of low-carbon alloy steel or medium-carbon steel and are heat-treated. (quenching, tempering), commonly known as high-strength bolts, the rest are commonly known as ordinary bolts. The bolt performance grade label consists of two parts of numbers, which represent the nominal tensile strength value and yield ratio of the bolt material respectively.
For example:
Bolts of property class 4.6 mean:
1. The nominal tensile strength of the bolt material reaches 400MPa;
2. The yield-strength ratio of the bolt material is 0.6
3. The nominal yield strength of the bolt material reaches 400×0.6=240MPa
Performance level 10.9 high-strength bolts, after heat treatment :
1. The nominal tensile strength of the bolt material reaches 1000MPa;
2. The yield-strength ratio of the bolt material is 0.9;
3. The nominal yield strength of the bolt material is 1000×0.9=900MPa
Bolt performance grade is an international standard. Bolts of the same performance grade, regardless of the difference in material and origin, have the same performance, and only the performance grade can be selected in the design.
The 8.8 and 10.9 strength grades mean the shear stress resistance of the bolt is 8.8GPa and 10.9GPa
8.8 Nominal tensile strength 800N/MM2 Nominal yield strength 640N/MM2
| Standard: |
ASME B 18.10; DIN 5903 |
| Diameter: | 1/4"-5",M6-M125 |
| Length: | ≤9m or 30feet |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: | Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 ASTM A193 / ASTM A193M Grade B5 (AISI 501) ASTM A193 / ASTM A193M Grade B6, B6X (AISI 410) ASTM A193 / ASTM A193M Grade B7, B7M (AISI 4140, AISI 4142, AISI 4145, AISI 4140H, AISI 4142H, AISI 4145H ASTM A193 / ASTM A193M Grade L7,L7M,L43 ASTM A193 / ASTM A193M Grade B16 ASTM A193 /A193M, ASTM A320 /A320M Grade B8, B8A (AISI 304, AISI 304L, AISI 304H) ASTM A193 /A193M, ASTM A320 /A320M Grade B8C, B8CA (AISI 347, AISI 347H) ASTM A193 /A193M, ASTM A320 /A320M Grade B8M, B8MA, B8M2, B8M3 (AISI 316, AISI 316L, AISI 316H) ASTM A193 /A193M, ASTM A320 /A320M Grade B8P, B8PA (AISI 305) ASTM A193 /A193M, ASTM A320 /A320M Grade B8N, B8NA (AISI 304N) ASTM A193 /A193M, ASTM A320 /A320M Grade B8MN, B8MNA (AISI 316N) ASTM A193 /A193M, ASTM A320 /A320M Grade B8MLCuN, B8MLCuNA ASTM A193 /A193M, ASTM A320 /A320M Grade B8T, B8TA (AISI 321, AISI 321H) ASTM A193 /A193M, ASTM A320 /A320M Grade B8A, B8RA ASTM A193 /A193M, ASTM A320 /A320M Grade B8S, B8SA ASTM A193 /A193M, ASTM A320 /A320M Grade B8LN, B8LNA (AISI 304N, AISI 304LN) ASTM A193 /A193M, ASTM A320 /A320M Grade B8MLN, B8MLNA (AISI 316N, AISI 316LN) |
| Thread: | M,UNC,UNF,UNS,UNR |
| Finish: | Plain, Zinc Plated(Clear/Blue/Yellow/Black), H.D.G, PTFE,Zinc Nickel,Geomet,Dacromet,Zinteck,Magni |

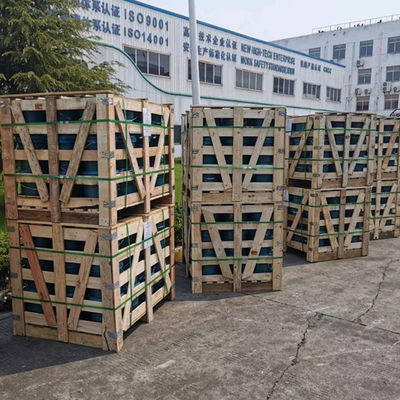

| Packing: | Bulk in cartons (25kg Max.)+wood Pallet, woven bag then pallet, according to customer special demand |
| Application: | Oil&Gas; Structural Steel; Metal Building; Tower&Pole; Wind Energy; Mechanical Machine; Home Decorating |
| Equipment: | Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester, 3D detector, Projector, Magnetic flaw detecter, Spectrometer |
| Supply Ability: | 1000 tons per month |
| MOQ: | According to customer demand |
| Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |
| Payment: | T/T, L/C, D/A , D/P ,West Union,Paypal.etc |
| Market: | Europe/South&north America/East&South East Asia/Middle East/Australia and etc. |
| Professional: | More than 15 years of experience in the fasteners industry Our Main market is North&South America and proficient in DIN/ASME/ASTM/IFI standard. |
| Our advantage: | One-stop shopping; High quality; Competitive price; Timely delivery; Technical support; Supply Material and Test Reports; Samples for free |
| Notice: | Please let's know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us |
Wholesale Customized Size Round Tap Head Square Lag Neck Hot DIP Galvanized Grade 5,8 ,8.8 Fishtail-Bolts Track Bolt
Fishtail bolt production quality assurance:
Our fishtail bolt production pays great attention to quality control and management. Our fishtail bolt production is fully controlled in accordance with the ISO9001-2008 quality system, and we have also obtained a railway product production license from the Chinese Ministry of Railways. We have a full set of testing equipment to ensure the quality of all our fishtail bolts to meet customer requirements.
All processes are in accordance with the requirements of ISO quality management system, from supplier quality control to finished products, we operate in accordance with standard procedures, we have strict quality control system for suppliers:
1. For the inspection and testing of raw materials, we require suppliers to provide inspection indicators such as production batch number, chemical composition, and mechanical properties.
2. Our quality control inspectors take sample sampling and batch testing and provide raw material material certificates for control during the testing process.
3. According to the different requirements of the products, we make corresponding physical and chemical tests and inspections. If the result does not meet our requirements, we will refuse to accept it and only the material will be accepted if it meets our standards.
4. For the semi-finished products and their outsourced manufacturers, we often organize quality control coordination meetings, and provide technical support and guidance. Guaranteed delivery of qualified products to our customers prior to shipment.
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.

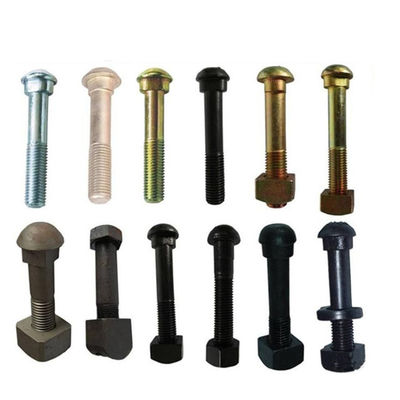

2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4.20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
