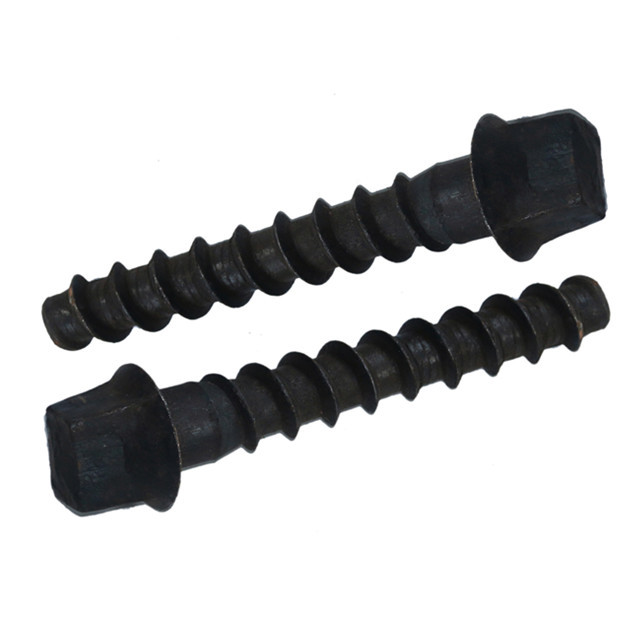

Galvanized Stainless Steel Railway Sleeper Screws 2.5mm 8mm Sizes
| Place of Origin | China |
|---|---|
| Brand Name | Kingrail |
| Certification | ISO |
| Model Number | dog spikes |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | standard export package, or as per customer request |
| Delivery Time | 1-30 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000000ton |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminium, Plastic, NICKEL, Nylon, Stainless Steel For Screw Spike | Standard | GB, DIN, ISO, ANSI, ASME, IFI, JIS |
|---|---|---|---|
| Application | Building, Furniture, Sanitary, Electronics, Traffic For Screw Spike | Surface Treatment | Phosphated(black,grey), Galvanized(bule,white,color), Ruspert, Dacromet Etc |
| Type Head | Pan, Flat, Truss, Hex Washer ,Wafer... | Sizes Dia | #4-#16 (2.5mm-8mm) |
| Name | Rail Fastening/ Track Spike/ Dog Spike Railroad Rail Sleeper Screw Spike With Round Thread | ||
| Highlight | Galvanized Stainless Steel Railway Sleeper Screws,2.5mm Stainless Steel Railway Sleeper Screws,8mm Stainless Steel Sleeper Screws |
||
Product Description
Galvanized Rail Fastening/ Track Spike/ Dog Spike Railroad Rail Sleeper Screw Spike With Round Thread
Railway Spikes, Road studs, a common form of traffic roadblocks, are used to guide people in the right direction and prevent speeding and traffic accidents. Mainly used in road and railway.
A processing technology of a spiral road stud is adopted, and the technical scheme includes the following steps: cutting: cutting a blank according to a set length to form a raw material of the road stud; car tip: cutting one end of the raw material of the road stud to Forming a cone tip; heating: heating the other end of the raw material of the road stud as required; punching: punching the heated end of the raw material of the road stud to form the screw head and backing plate; trimming: after the road stud profile is cooled, start the The prepared punching equipment removes the burrs on the surface of the backing plate; screw heating: start the pre-prepared heating equipment to heat the end of the spike raw material with the tapered tip; wire rolling: start the pre-prepared wire rolling equipment to heat the track obtained by the screw. The raw material of the nail is rolled to form a thread to obtain a screw spike. Thereby, it is convenient to improve the processing quality of the product.
As for the cost, the rail screw spike require higher cost than the rail dog spike but has the advantage of greater fixing power; approximately twice that of a rail spike, and can be used in combination with spring washers.
| No. | Product Name | Specification | Material | Surface | Standard | |
| 1 | Fishtail Bolt | M8-M64 | Q235,45#, 55#,etc |
Zinc,Plain, Black Oil | UIC,AREMA,JIS,GB or according to your requests. | |
| 2 | Screw Spike | Square Head Screw Spike | M16-M22 *145-200 | |||
| Hexagon Head Screw Spike | ||||||
| Other Types | ||||||
| Type | Specification | Weight/kg | Surface | Standard | ||
| 3 | Sleeper Screw | Ss 1/130 | M22*130 | 0.451 | Zinc,Plain, Black Oil | UIC,AREMA,JIS,GB or according to your requests. |
| Ss 1/150 | M22*150 | 0.478 | ||||
| Ss 2/180 | M22*180 | 0.595 | ||||
| Ss 5/150 | M24*150 | 0.545 | ||||
| Ss 6/130 | M26*130 | 0.658 | ||||
| Ss 6/150 | M26*150 | 0.702 | ||||
| Ss 6/170 | M26*170 | 0.385 | ||||
| Ss 7/180 | M24*180 | 0.636 | ||||
| Ss 8/140 | M24*140 | 0.528 | ||||
| Ss 8/150 | M24*150 | 0.548 | ||||
| Ss 8/160 | M24*160 | 0.568 | ||||
| Ss 23/160 | M23*160 | 0.645 | ||||
| Ss 24/165 | M24*165 | 0.59 | ||||
| Ss 25/165 | M25*165 | 0.625 | ||||

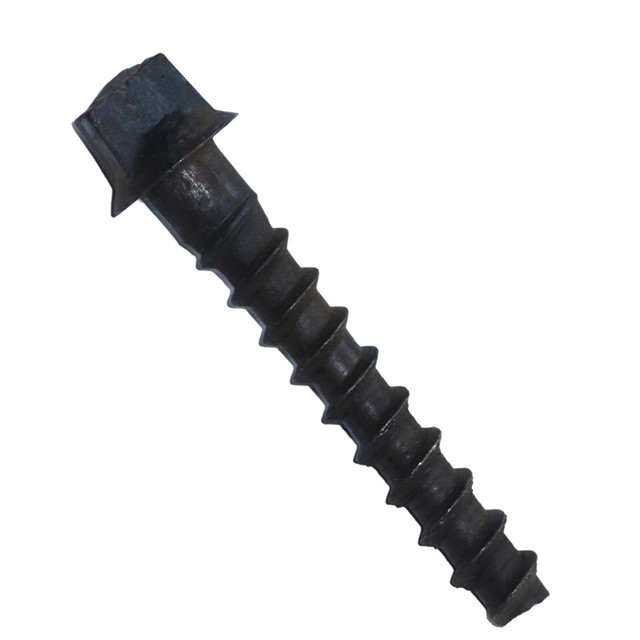

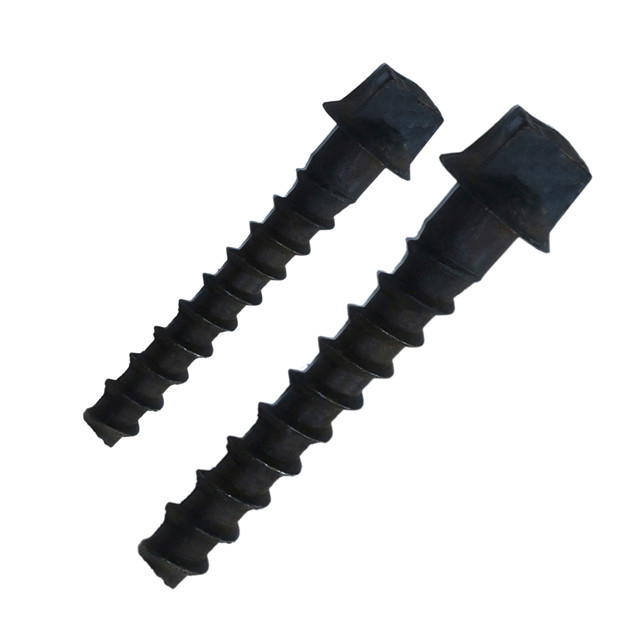

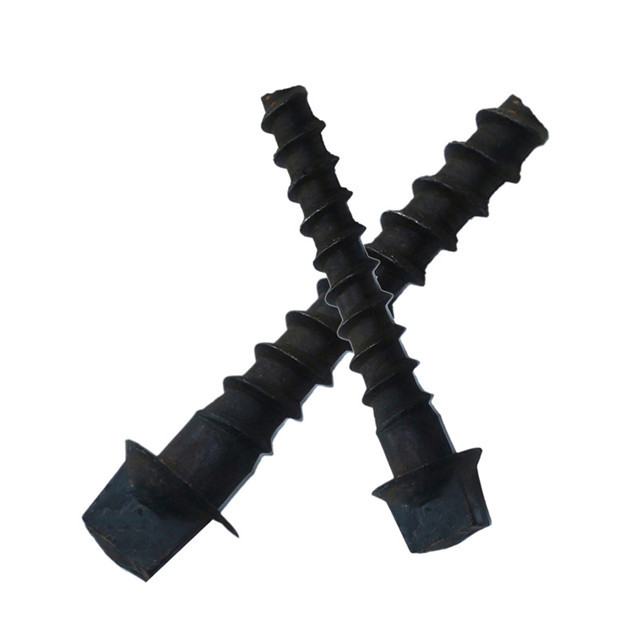

Rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail tie plates or rail. Rail screw spike is usually made of Q235 steel. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.
Rail Fastening/ Track Spike/ Dog Spike Railroad Rail Sleeper Screw Spike with Round Thread
| size | class | coating | Packing | standard |
| M16 | 4.6 | Plain | bags | ASTM |
| M18 | 4.8 | Zinc plating | kegs | GB |
| M20 | 5.6 | Hot dip galvanized | pallets | BS |
| M24 | 5.8 | dacroment | cartons | DIN |
| M27 | 6.8 | Black | GOST | |
| M30 | 8.8 | sherardizing | JIS |
The specifications of road studs are generally 100mm*100mm*20mm, and the height does not exceed 25mm. There are many kinds of reflectors, such as reflective sheets, reflective beads, led lights, reflective films, etc.
The installation of road studs generally adopts epoxy resin installation.
There are many categories of Spikes, which can be divided into:
1. Cast aluminum spikes;
2. Plastic road studs;
3. Ceramic spikes;
4. Glass ball studs;
5. Reflective bead road studs (21 beads and 43 beads, which can be incorporated into cast aluminum and plastic road studs)
6. Mine spikes;
Rail Fastening/ Track Spike/ Dog Spike Railroad Rail Sleeper Screw Spike with Round Thread
Manufacturing: Hot Forging
Material: carbon steel, alloy steel etc.
Class: 4.6, 5.6, 6.8, 8.8, 10.9
Size: according to drawing
Standard: DIN, ASTM, BS, JIS, GB, AISI, ANSI, GOST
Heat treatment: to be decided as mechanical property request
Machining: optional
Surface treatment: plain, sand blasting, HDG, zinc plating, Dacromet, Black, Paint, Powder coating
Our main products are container accessories, railway accessories, construction forgings, hardware tools and power fittings.
Kingrail has more than 10 engineers and technical staff. There are over 50 skilled forging workers and managers. Production facilities are fully equipped. We have 300 tons of electric screw presses, 400 tons of electric screw presses, 630 tons of electric screw presses, 1,000 tons of electric screw presses, and otherforging equipment and electric treatment furnaces. Other main equipment are a horizontal lathe, CNC lathes, machining device, drilling machines, grinders, cleaning machines, stamping machines etc., to provide customers from forging to final processing services. Kingrail produce and process various forms of forging blanks, finished products and semi-finished products, the annual output over10,000 tons. Friendly relations have been established with a number of large enterprises at home and abroad.
Material: carbon steel, alloy steel etc.
Class: 4.6, 5.6, 6.8, 8.8, 10.9
Size: according to drawing
Standard: DIN, ASTM, BS, JIS, GB, AISI, ANSI, GOST
Heat treatment: to be decided as mechanical property request
Machining: optional
Surface treatment: plain, sand blasting, HDG, zinc plating, Dacromet, Black, Paint, Powder coating
Our main products are container accessories, railway accessories, construction forgings, hardware tools and power fittings.
Kingrail has more than 10 engineers and technical staff. There are over 50 skilled forging workers and managers. Production facilities are fully equipped. We have 300 tons of electric screw presses, 400 tons of electric screw presses, 630 tons of electric screw presses, 1,000 tons of electric screw presses, and otherforging equipment and electric treatment furnaces. Other main equipment are a horizontal lathe, CNC lathes, machining device, drilling machines, grinders, cleaning machines, stamping machines etc., to provide customers from forging to final processing services. Kingrail produce and process various forms of forging blanks, finished products and semi-finished products, the annual output over10,000 tons. Friendly relations have been established with a number of large enterprises at home and abroad.
Railway parts products we can provide:

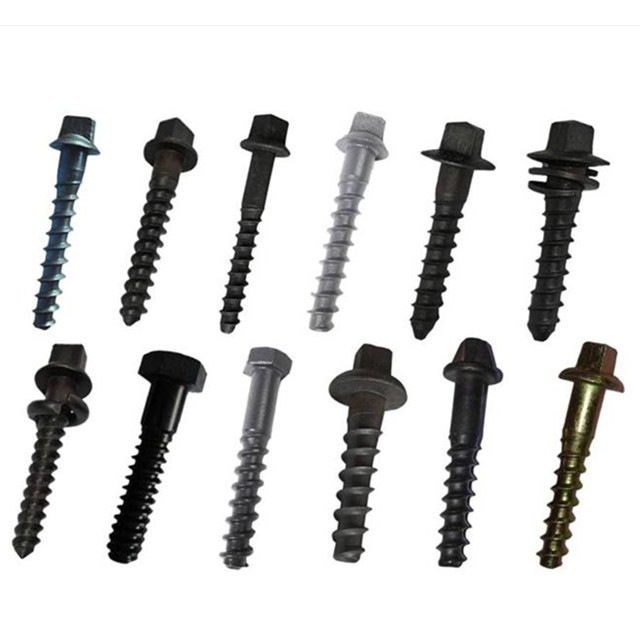

1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
Why choose us:
1. The company is in a leading position in the industry and has obtained SGS-ISO9001: 2008 quality system certification and CRCC certification. Quality is guaranteed.
2. We have 8 professional sales staff and more than 60 professional engineers. Can provide professional and fast suggestions and quotations for your railway customized products
3. Ma′anshan is a port city. We can provide you with faster shipping services
4.20 years of production and sales experience. Deal with all kinds of after-sales problems for you in time.
