Product Details:
|
| Rated Load Capacity: | 2-15ton | Wheelbase: | 1200-7000mm |
|---|---|---|---|
| Wheel Diameter: | 200-600mm | Number Of Wheels (pcs): | 4 |
| Ground Clearance: | 50-75 | Running Speed(m/min): | 0-25 |
| High Light: | 4Wheels Railroad Track Cars,7000mm Railroad Track Cars,Electric Flat Car 15Ton |
||
This series of electric flat cars adopts box-type beam structure, which has the advantages of strong bearing capacity, no deformation, stable starting, large starting torque, small impact on the reducer, low voltage, long service life, and safe running distance. Compared with KPX battery-powered electric flat car, it avoids the shortcomings of battery maintenance and charging trouble, but has higher requirements for track laying (the track needs to be insulated). the occasion. For longer distances, multiple transformers are required to supply power.

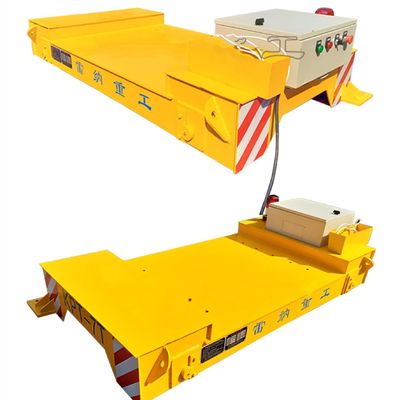

Product description of KPDS low-voltage rail power supply series electric flat car:
KPDS low-voltage rail power supply series electric flat carts are powered by rail sliding contact lines. The ground step-down transformer steps down the AC 380V power supply to AC 36V three-phase, which are respectively connected to three rails (adding a conductor rail), and are introduced through the rails. In the vehicle electrical box, the three-phase AC 36V is boosted to AC 380V through the step-up transformer, and then the AC metallurgical motor is controlled by the AC control system to control the start, stop, forward, backward, and speed regulation of the flat car. This series of electric flat cars can be used in S-shaped track, curved track and high temperature occasions; hydraulic or mechanical lifting systems and other devices can be installed on the platform of the flat car; automatic remote control can be realized.
This series of electric flat cars adopts box beam structure, which has the advantages of strong bearing capacity, no deformation, flexibility, and safe running distance. However, the requirements for track laying are high (the track needs to be insulated), and it is suitable for occasions with large load capacity, high frequency of use, and medium and long distance transportation. For longer distances, multiple transformers are required to supply power.
| Low voltage rail powered electric flat car Power supply by track trolley line | |||||||||||
| Flat car model | KPDZ-2t | KPDZ-5t | KPDZ-10t | KPDZ-16t | KPDZ-20t | KPDZ-25t | KPDZ-30t | KPDZ-40t | KPDZ-50t | KPDZ-63t | |
| Rated load capacity(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size (mm) |
long(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2400 | 2400 | 2400 | |
| high(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| wheelbase(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Inside distance of rail(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | |
| Number of wheels (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power(Kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer power(KVA) | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Number of transformers (pcs) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| run length(m) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| ***big wheel pressure(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| reference weight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Stubble rail model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
| Description: 1. Load capacity, table size, rail inner distance can be designed and manufactured according to customer needs; 2. Optional wireless remote control device (imported or domestic); 3. Optionally Motion stop and limit device; 4. Optional rail automatic power-off function; 5. Optional DC brushed motor, DC brushless motor; 6. Optional domestic and imported electrical appliances; 7. Optional resistance high temperature requirements. |
|||||||||||
| KPDS three-phase rail power supply series rail flat car technical parameter table | ||||||||||||||
| Flat car model | KPDS-2t | KPDS-5t | KPDS-10t | KPDS-16t | KPDS-20t | KPDS-25t | KPDS-30t | KPDS-40t | KPDS-50t | KPDS-63t | KPDS-80t | KPDS-100t | KPDS-150t | |
| Rated load capacity(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size (mm) |
long(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| width(w) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2400 | 2400 | 2400 | 2600 | 2800 | 3000 | |
| high(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | 800 | 850 | 1200 | |
| wheelbase(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Inside distance of rail(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600重 | Φ600重 | |
| Number of wheels (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| running speed(m/min) | 0—25 | 0—25 | 0—25 | 0—20 | 0—20 | 0—20 | 0—20 | 0—20 | 0—20 | 0—20 | 0—20 | 0—20 | 0—18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer power(KVA) | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Number of transformers (pcs) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| run length(m) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | 50 | 50 | 50 | |
| ***big wheel pressure(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| reference weight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended rail model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
| Description: 1. Load capacity, table size, rail inner distance can be designed and manufactured according to customer needs; 2. Optional wireless remote control device (imported or domestic); 3. Optional automatic stop and limit device when encountering people; 4. .The automatic power-off function of the track can be selected; 5. The stepless speed regulation function of the inverter can be selected; 6. The domestic electrical appliances and imported electrical appliances can be selected; | ||||||||||||||
