| Brand Name: | kingrail |
| Model Number: | crane rail |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

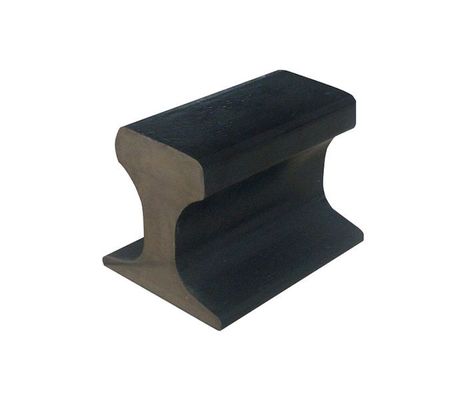

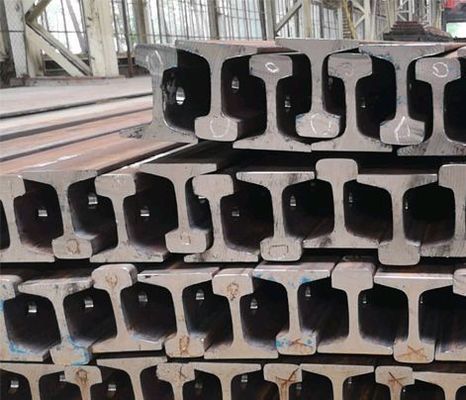

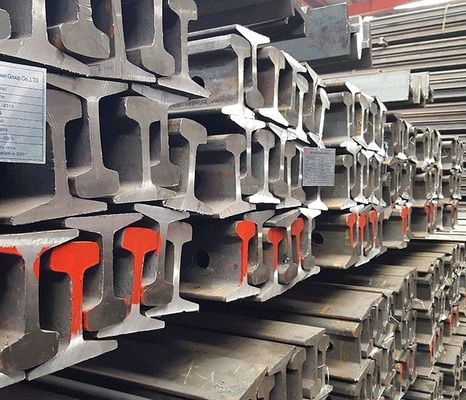

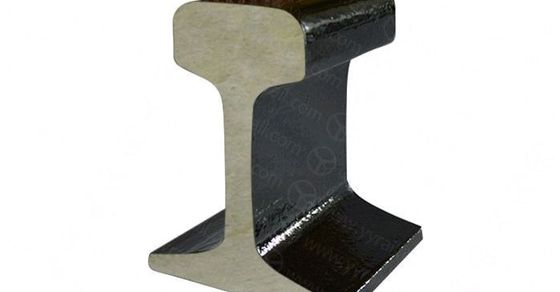

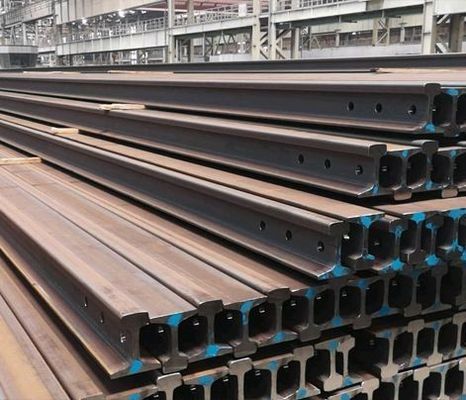

Introduction of Arema 115re Steel Track Rail 12m 136lb For Rail Track Maintenance And Building
| Weight | Head width A |
Heigh H |
Base width B |
Web S |
||||||
| lb/yd | kg/m | in. | mm | in. | mm | in. | mm | in. | mm | |
| American sections | ||||||||||
| 141RE | 140.68 | 69.79 | 3 1/6 | 77.79 | 77/16 | 188.91 | 6 | 152.40 | 11/16 | 17.46 |
| 136RE | 135.88 | 67.41 | 215/16 | 74.61 | 75/16 | 185.74 | 6 | 152.40 | 11/16 | 17.46 |
| 133RE | 133.25 | 66.10 | 3 | 76.20 | 71/16 | 179.39 | 6 | 152.40 | 11/16 | 17.46 |
| 132RE | 131.66 | 65.31 | 3 | 76.20 | 7 1/8 | 180.98 | 6 | 152.40 | 21/32 | 16.67 |
| CB122 | 122.50 | 60.77 | 215/16 | 74.61 | 625/32 | 172.24 | 6 | 152.40 | 21/32 | 16.67 |
| 119RE | 118.67 | 58.87 | 221/32 | 67.47 | 613/16 | 173.04 | 51/2 | 139.70 | 5/8 | 15.88 |
| 115RE | 114.68 | 56.89 | 223/32 | 69.06 | 6 5/8 | 168.28 | 51/2 | 139.70 | 5/8 | 15.88 |
| 100RE | 101.50 | 50.35 | 211/16 | 68.26 | 6 | 152.40 | 53/8 | 136.53 | 9/16 | 14.29 |
| 100ARA-B | 100.56 | 49.88 | 221/32 | 67.47 | 541/64 | 143.27 | 59/64 | 130.57 | 9/16 | 14.29 |
| 100ARA-A | 100.39 | 49.80 | 2 3/4 | 69.85 | 6 | 152.40 | 51/2 | 139.70 | 9/16 | 14.29 |
| 90ARA-A | 90.00 | 44.64 | 2 9/16 | 65.09 | 5 5/8 | 142.88 | 51/8 | 130.18 | 9/16 | 14.29 |
| ASCE85 | 85.00 | 42.17 | 2 9/16 | 65.09 | 53/16 | 131.76 | 53/16 | 131.76 | 9/16 | 14.29 |
| ASCE80 | 80.00 | 39.68 | 2 1/2 | 63.50 | 5 | 127.00 | 5 | 127.00 | 35/64 | 13.89 |
| ASCE60 | 60.00 | 29.76 | 2 3/8 | 60.32 | 4 1/4 | 107.95 | 41/4 | 107.95 | 31/64 | 12.30 |
| ASCE40 | 40.00 | 19.84 | 17/8 | 47.62 | 3 1/2 | 88.90 | 31/2 | 88.90 | 25/64 | 9.92 |
| ASCE30 | 30.00 | 14.88 | 111/16 | 42.86 | 3 1/8 | 79.37 | 31/8 | 79.37 | 21/64 | 8.33 |
| ASCE25 | 25.00 | 12.40 | 11/2 | 38.10 | 2 3/4 | 69.85 | 23/4 | 69.85 | 19/64 | 7.54 |
| ASCE20 | 20.00 | 9.92 | 111/32 | 34.10 | 2 5/8 | 66.70 | 25/8 | 66.70 | 1/4 | 6.40 |
| European sections | ||||||||||
| UIC 60 | 121.64 | 60.34 | 2.93 | 74.30 | 6.77 | 172.00 | 5.91 | 150.00 | 0.65 | 16.50 |
| UIC 54 | 110.41 | 54.77 | 2.84 | 72.20 | 6.26 | 159.00 | 5.51 | 140.00 | 0.63 | 16.00 |
| S54 | 109.95 | 54.54 | 2.76 | 70.00 | 6.06 | 154.00 | 4.92 | 125.00 | 0.63 | 16.00 |
| S49 | 99.65 | 49.43 | 2.76 | 70.00 | 5.87 | 149.00 | 4.92 | 125.00 | 0.55 | 14.00 |
Kingrail, as a specialized rail fastener manufacturer, provides a complete line of products, including rail fastening, anchor, rail joint, rail clip, rail screw, anchor bolt, rail clamp plate, rail fishplate, and fishplate bolt for connecting rail tracks.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
|
