Product Details:
|
| Standard:: | AiSi, ASTM, Bs, DIN, GB, JIS | Bolt Hole Diameter:: | 22mm 24mm, As Customer's Requirement |
|---|---|---|---|
| Grade:: | Q235/55Q/U71Mn/75V/50Mn/45Mn | Length: | 6-12m |
| Rail Gauge:: | Normal Gauge | Specification:: | 4kg/m, 8kg/m 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24kg/M,38-60 |
| High Light: | QU100 Steel Crane Rail,QU120 Steel Crane Rail,ODM Steel Railroad Rail |
||

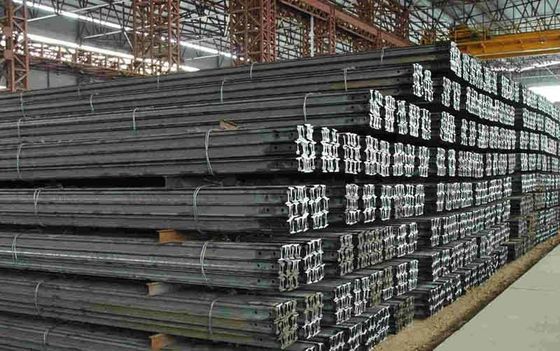

Introduction of Crane rail QU120 QU100 qu80 steel rails B/T 5055-2014 standard
Kingrail Mainly engaged in light rail, heavy rail, lifting rail, crane rail, rail, rail accessories, u71mn rail, 55q rail, 50kg rail, 24kg rail and U-shaped support steel, H-beam, T-beam, I-beam, angle steel, groove Steel and other profiles. The specifications of light rail range from 8kg to 30kg, and the material is 55Q/Q235; the specification of heavy rail is from 38kg to 60kg, and the material is U71Mn/50Mn; the specifications of the crane rail are QU70, QU80, QU100, QU120, and the material is U71Mn/75V; 100*100-900*300, the material is Q235B/Q345B, the T-beam specification is from 50*50 to 450*300, and the material is Q235B/Q345B.
| Standard: DIN | Grade: 900A | Rail Heigth: 95mm | Bottom Width: 200mm |
| Web Thickness: 60mm | Head Width: 100mm | Length: 10-12m | Place of Origin: Tianjin China (Mainland) |
| Brand Name: SY | Model Number: A100 | Application: Railway Rail | Weight: 74.3kg/m |
| Secondary Or Not: Non-secondary |

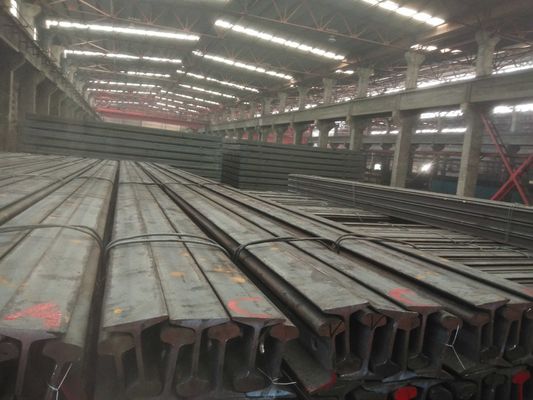

manufacture of Crane rail QU120 QU100 qu80 steel rails B/T 5055-2014 standard
The rails are made of killed steel from open hearth smelting.
A production process that does not produce white spots in the rail should be used.
Mechanical properties
The tensile strength of the rail is not less than 90 kg/mm.
Surface Quality of Grade of 900A Din536 A120 Steel Rail for Gantry Crane
There shall be no cracks, folds, scars, bubbles and inclusions on the rail surface. Indentations, pits and scratches with a depth not greater than the allowable negative deviation value of the rail size and hairlines with a depth not greater than 1 mm are allowed.
There shall be no residual cracks, delaminations and shrinkage holes on the end face of the rail.
The end face of the rail shall be cut straight, and the skew of the end face shall not exceed 5 mm in any direction. Burrs with a length of not less than 4 mm should be removed.
The surface defects of the rail are allowed to be cleaned longitudinally with an air shovel, and the cleaning depth (calculated on one side) shall not be greater than the allowable negative deviation of the size.
Rail surface defects are not allowed to be repaired or filled by welding
Section size of QU100 rail: rail height: 150mm, bottom width: 150mm, head width: 100mm, thickness: 38mm, weight: 88.96kg/
QU100 rail material: U71Mn material, 45Mn material, 50Mn material rail
QU100 rail standard: YB/T5055-93
QU100 rail length: 12 meters/piece, 12.5 meters/piece

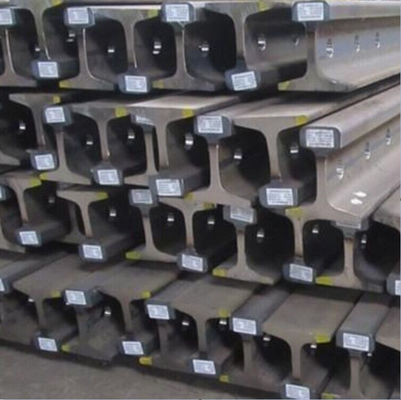

shape of Crane rail QU120 QU100 qu80 steel rails B/T 5055-2014 standard
The lateral curvature of the rail shall not be greater than 1.5 mm per meter, and the total curvature shall not be greater than 8 mm.
The total curvature of the rails in the upper and lower directions shall not exceed 6 mm.
The end of the rail should not be bent more than 1 mm within 0.5 m.
The QU120 crane rail is limited by the capacity of the straightening equipment. The degree of curvature is determined by the customer.
The torsion of the rail shall not be greater than 1/10 000 of the full length of the rail.
The asymmetry of the rail cross section and the vertical axis: the bottom of the rail should not be larger than 2 mm, and the head of the rail should not be larger than 0.6 mm.
The bottom of the rail should not be recessed. The center of the rail bottom should not protrude more than 0.5 mm from the two sides.
weight
The rails are delivered according to the theoretical weight.
