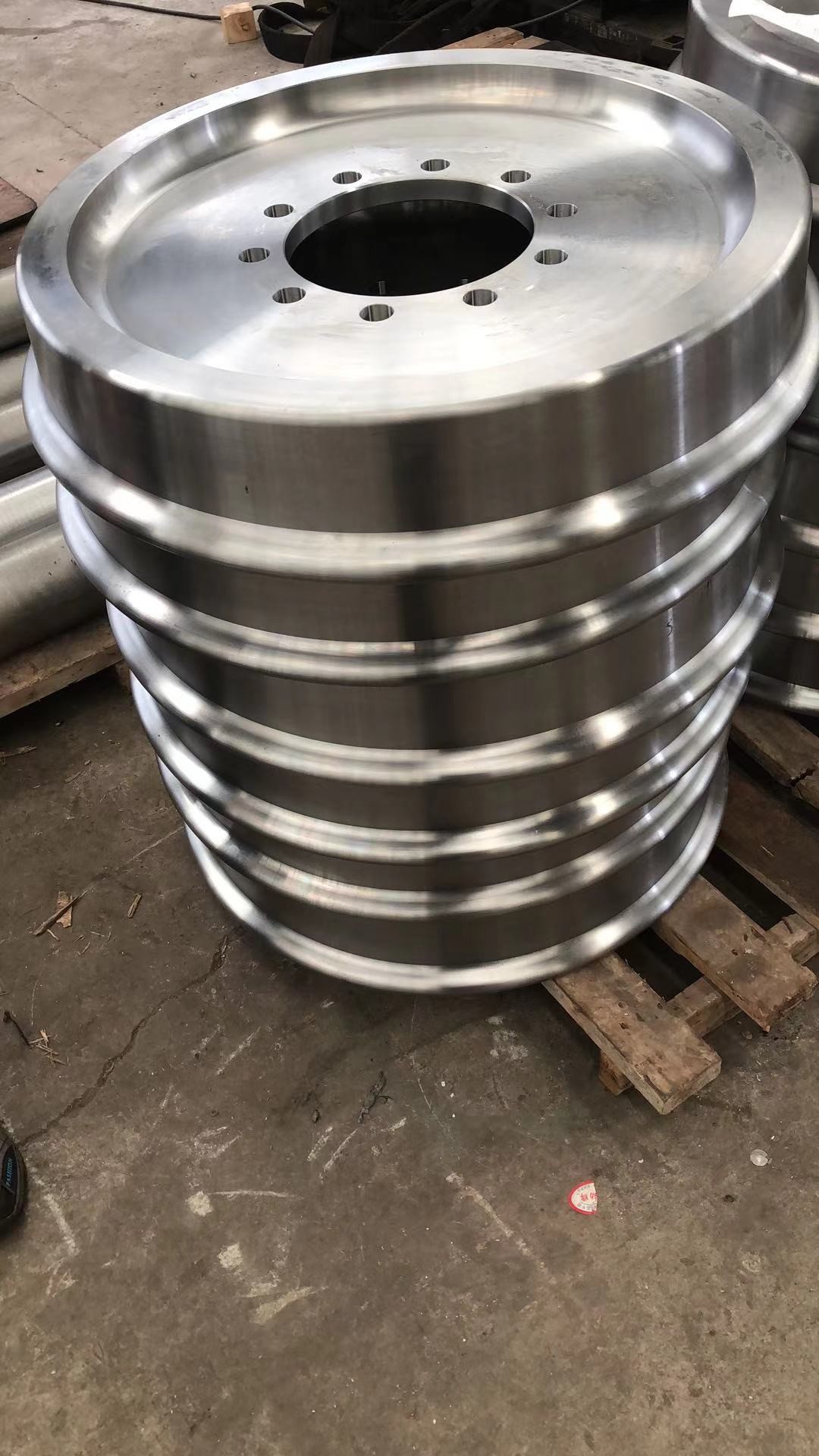

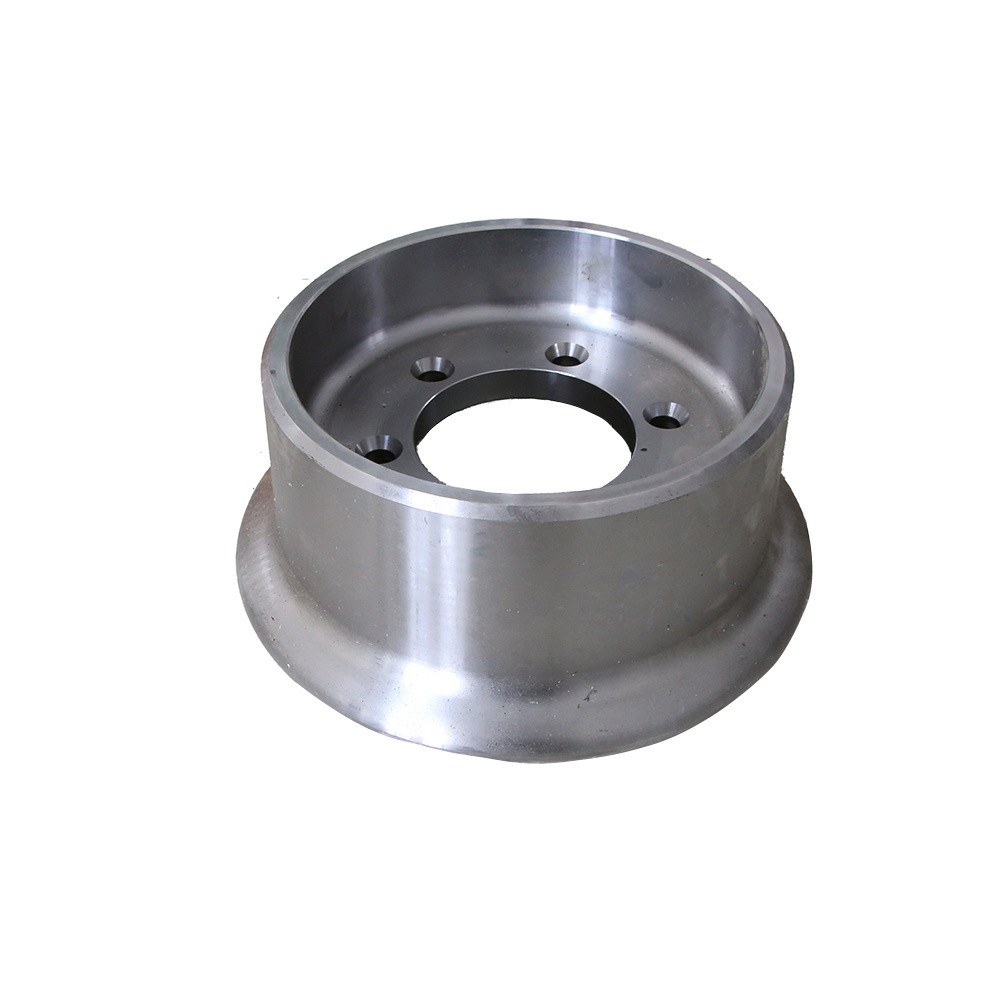

Forged 250mm Railroad Car Wheels , Train Track Wheels 50hrc 40CrNiMo

Detailed specification of forged 250mm roadrail vehicle wheels 50hrc 40CrNiMo material carbon steel

• 1. Material: cast steel or cast iron;

      Carbon steel:C45, C50, C55, C60, 4330, C35, 65Mn

      Alloy steel:4140, 42CrMo, 40CrNiMo, 4340, 34CrNiMo6

• 2. Constitute: two wheels, one axle, four bearings, and other parts;
• 3. Loading capacity: 1-300 tons, can be customized.
• 4. The type of the wheels: single flange wheel, double flange wheel, hollow wheel sets and solid wheel sets;
• 5. The diameter of the wheels: 300mm, 350mm, 400mm, 450mm;500mm; 900mm, etc.
• 6) Heat treatment: normalizing, Q&T ,Surface and rim quenching with depth: 5-20mm
  7) Measuring & testing equipment:Projecting profile, roughness tester, hardness tester, concentricity tester ect, UT ,MT
  8) Size:Customized designs are available.
  9) Inspection:In-house and the third party.

forged 250mm roadrail vehicle wheels 50hrc 40CrNiMo material carbon steel mainly used for RRV, Road-rail dual-use vehicles refer to special vehicles that can run on railway tracks as well as on general roads and even in the field. also called RRV. It was mainly used in the military in the early days. Hyundai mainly undertakes emergency tasks such as maintenance and rescue of railway lines and along the lines. Road-rail dual-use vehicles are required to be able to switch between roads and railways quickly and easily. It is usually realized by the hydraulic lane-changing slewing device on the chassis and the railway traveling guide wheel device that can be raised and lowered at any time. With the guide wheel device, the general rubber tire wheels can drive straight along the rail. Because this kind of vehicle requires a certain traction and carrying capacity, it can play a unique role in the event that the railway line is interrupted or blocked due to a disaster. Dedicated road-rail vehicles include: electric traction section catenary repair vehicles, excavators used for mountain railway repairs, emergency tractors, generator vehicles, fire trucks, fast bridge vehicles, etc.

Strength of forged 250mm roadrail vehicle wheels 50hrc 40CrNiMo material carbon steel

1. Forging production, longer lifespan, for smaller quantity, free forging, for big quantity, precision forging with mould

2. Diameter: 0-1450mm, 6",8",10",12",14",16",20",24",28",30",34",36",40",42",etc

3.100% inspection before delivery

Usage of forged 250mm roadrail vehicle wheels 50hrc 40CrNiMo material carbon steel

Train, railcars, light rail, street car, metro, freight car, railway wagon for mining, rail trucks, ballast rail cars, Hy-rail hirail cars, rail trailers, ballst vehicles, etc

The Production Railway Wheels Process

1. Wheels Steel Melting 2. Round Billet Sawing Cutting 3. Heating 4. Phosphorus 5. Stamping Forming 6. Rolling 7. Bending Punch 8. Hot Stamping 9. Laser Measurement 10. Drop Stack 11. Roughing 12.Hardening 13.Tempering 14. Sampling 15. Pre-processing 16. Finishing 16. The Cold Print 17. Static Equilibrium 18. The Cold Print 19. Hardness Testing 20. Ultrasonic Testing 21. Magnetic Particle Testing 22. Shot Peening 23. Painting Packaging

Main Testing and Inspection Device for forged 250mm roadrail vehicle wheels 50hrc 40CrNiMo material carbon steel
