| Brand Name: | kingrail |
| Model Number: | UIC60 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | standard export package, or as per customer request |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

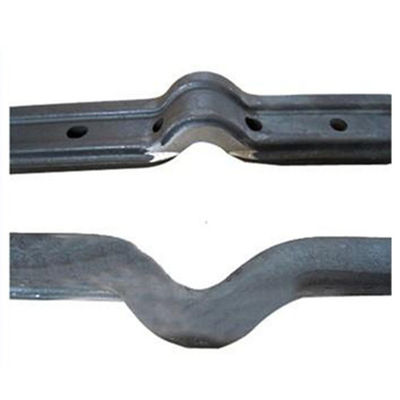

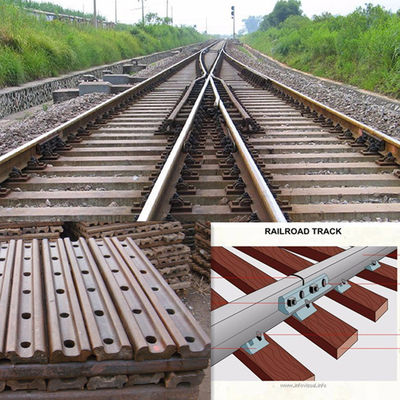

forging and casting Joggled fishplates 4 holes for UIC54 60 Stell rails
Introduction
A fishplate used for connection of worn rails belongs to the field of railway rails, including rails, a left fishplate is slidably connected to the depression at the left end of the rail, and a right fishplate is slidably connected to the depression at the right end of the rail. A first bolt is slidably connected between the fishplate and the rail, and a first washer is slidably sleeved on the outer surface of the right end of the first bolt. Left and right support plates are arranged at the left and right ends of the left and right fishplates to align the left and right fishplates. Auxiliary support has the effect of prolonging the service life of the left and right fishplates and improving the supporting force of the left and right fishplates, and the fishplates, rails and support plates are all connected by bolts and nuts. The washer is provided, which can not only reduce the pressure on the fishplate and the support plate, but also tightly connect the bolts and nuts, so that the entire fishplate is more stable, has a stronger supporting effect, and has a higher safety.
Specification: These fish plate can apply to Light Rail, Heavy Rail and Crane Rail. Also can produce accoring to customers drawing.
British Standard Fish Plate |
||
Type |
Standard |
Material |
BS75R |
BS47-1 | EUROPEN GRADE 700 |
BS80A |
||
BS90A |
||
BS100A |
||
BS113A |
||
GB/TB Standard Fish Plate |
||
Type |
Standard |
Material |
43KG |
TB/T 2345-2008 | B7 |
50KG |
||
60KG |
||
75KG |
||
JIS Standard Fish Plate |
||
Type |
Standard |
Material |
37A |
JIS E 1102-2001 | SS 490 S20C |
50N |
||
CR73 |
||
CR100 |
||
BS113A |
||
AREMA 2007 Standard Fish Plate |
||
Type |
Standard |
Material |
T- Rail |
AREMA 2007 | AREMA GRADE/STEEL GRADE55# |
100lb.ASCE |
||
115RE |
||
132RE |
||
136RE |
||
Crane Rail Standard Fish Plate |
||
Type |
Standard |
Material |
104lb.CR |
TB/T 2345-2008 | B7 |
105lb.CR |
||
135lb.CR |
||
171lb.CR |
||
1751b.CR |
||

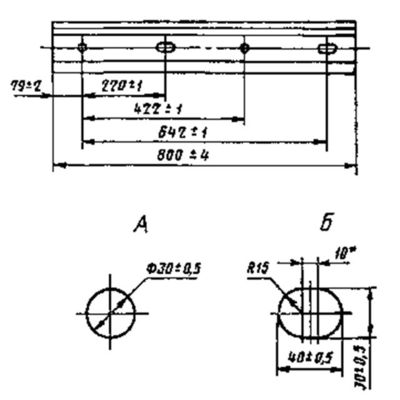

Standard length: 914.4mm drill hole or punching, four hole or six hole. |
||

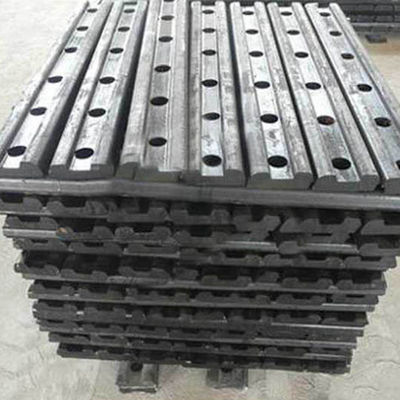

Fishplate Limiter for Railway Track and Forged Track Clamp Plate for Railway Track 50kg/M Railway Fish Plate Used for Steel Rail Joint Bar
Each rail application is different and must be engineered to maximise efficiency and lifespan, therefore the selection of the correct rail is critical to achieving this end.
| Type | C | B | A | D | Weight (kg/m) | Standard |
| P18 | 40 | 80 | 90 | 10 | 18.06 | YB222-63 |
| P24 | 51 | 92 | 107 | 10.9 | 24.46 | YB222-63 |
| P22 | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | GB11264-89 |
| P30 | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | GB11264-89 |
| P38 | 68 | 114 | 134 | 13 | 38.72 | GB183-63 |
| P43 | 70 | 114 | 140 | 14.5 | 44.65 | GB183-63 |
| P50 | 70 | 132 | 152 | 15.5 | 51.51 | GB 183-63 |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | GB3426-82 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 | GB3426-82 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 | GB3426-82 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 | GB3426-82 |
| Model | S (mm) |
S1 (mm) |
S2 (mm) |
S3 (mm) |
S4 (mm) |
S5 (mm) |
Rail Size |
| FP-24 | 400 | 29 | 98 | 137 | 98 | - | P18/ P22/ P24 |
| FP-30 | 490 | 36 | 128 | 127 | 128 | - | P30 |
| FP-38 | 790 | 65 | 160 | 110 | 120 | - | P38/ P43 |
| FP-80 | 500 | 52.5 | 121 | 138.5 | 120 | 43 | QU70/ QU80 |

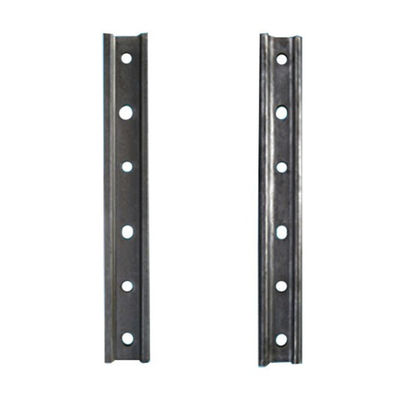

Fishplate Limiter for Railway Track and Forged Track Clamp Plate for Railway Track 50kg/M Railway Fish Plate Used for Steel Rail Joint Bar
Lifetime Guarantee
According to the process of crack generation and expansion of the fishplate, and from our rough statistics of the failed fishplate, the early failure caused by the material accounts for a considerable proportion, especially the increase in material brittleness caused by coarse grains or severe mixed crystals. Case. In addition, the surface decarburization of materials should also be paid enough attention. Therefore, the production of fishplates must be carried out in strict accordance with the production process and the prescribed heat treatment system, and at the same time, the quality inspection must be passed to reduce the early failure caused by the material. Moreover, from the point of view of the complex use conditions of the fish plate, ensuring its production quality is also one of the most effective safety measures.
The quality control system meets the requirements of ISO90012015 quality management system; we have our own inspection center, physical and chemical room, and third-party inspection agencies such as SGS and BV to inspect the quality; products are exported to Asia, Kazakhstan, Pakistan, India, Thailand, Vietnam, Malaysia, Philippines, Cambodia, Indonesia, Mongolia, Bangladesh, Saudi Arabia, Europe, Russia, UK, Italy, Spain, Germany, France, Netherlands, Albania, North America, Canada, Mexico, Panama, Cuba, South America, Brazil, Ecuador, Chile, Argentina, Bolivia, Costa Rica, Oceania, Australia, New Zealand, Africa, Egypt, South Africa, Congo, Zimbabwe, Senegal, Sierra Leone, Mozambique, etc.
Fishplate Limiter for Railway Track and Forged Track Clamp Plate for Railway Track 50kg/M Railway Fish Plate Used for Steel Rail Joint Bar
Railway parts products we can provide:
1, Rail Spike Series: Rail Screw Spike, rail Dog Spike, rail Elastic Spike etc.
2, Track Bolt series: Track Bolt, Segment Bolt, Metro Bolt, Tunnel Bolt, Hex Bolt, Square Bolt, Turnout Bolt, Fishtail Bolt, T bolt etc
3, Rail Clip series: Nabla rail Clip, Elastic rail Clip, SKL rail Tension Clamp, O rail Clip, Gauge Lock Clip etc
4, Steel Rails series: Railway rails, Crane Rails, Mining Rails, Over the head Rails, etc
5, Steel rail wheels series: Train Wheels, Crane Wheels, Hi-rail vehicle wheels, etc
6, Other materials and accessories: Rail Gauge Insulator, rail rubber Pad, rail Fish plate, Nut, rail Plastic Dowel, rail Tie plate, Spring Washer, Flat Washer, Cast Iron Insert, Anti Creeper, rail Gauge Rod etc.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
Our high strength bolts come in different specifications of Class 4.8, 4.6, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. A variety of non-standard fastening is also available. We can customize our products using customer drawings or samples as well.
forging and casting Joggled fishplates 4 holes for UIC54 60 Stell rails
The processing method of railway fishplates developed by KINGRAIL is short, reasonable, and low in production cost. The main points of the technical scheme of the method for processing fishplates for railways are as follows: S1. Smelting the continuous casting billet through a heating furnace and then casting it into billets; S2. Dephosphorizing with a high-pressure water descaling device, and using a φ750 two-roller reversible The rolling mill is rolled once; S3. The φ650 two-high continuous rolling unit is used for the second rolling; S4. The fixed-length cold saw and turning are used to process the plate into a fish plate and grind it; S5. The fish plate is cleaned and corrected. flat; S6, passivate the fish plate; S7, coat the surface of the fish plate with an anti-rust coating; the processing method of the fish plate for railway uses continuous casting to form billets, primary rolling, secondary rolling, Sawing, turning, grinding, leveling, passivation, spraying anti-rust coating and other steps to produce fish plate, the produced fish plate has small deformation, is not easy to rust, and greatly improves the service life;
Kingrail supply various railway products:
forging and casting Joggled fishplates 4 holes for UIC54 60 Stell rails
railcar spares: wheels, axles, bearings, shafts, bogie spares, forging and casting products
rail track materials: fisplates, steel rail and accessories, tie plates, clips, bolts and nuts, etc
Both small and big orders are welcome!
|
