Product Details:
|
| Size: | Single/ Double Shoulder Tie Plate Or Custom Type | Standard: | GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS Etc |
|---|---|---|---|

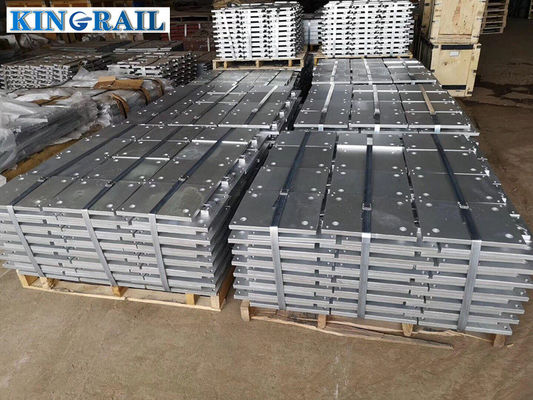

| Surface: | Plain, Black Painting Or Upon Customer Requirement | Packing: | Bulk In Carton Or Bags, Then On Pallet, Or According To Customers |
| Material: | Ow Carbon Steel Or High Carbon Steel | ||
| High Light: | Railroad Construction Single Shoulder Tie Plates,ASTM Single Shoulder Tie Plates |
||

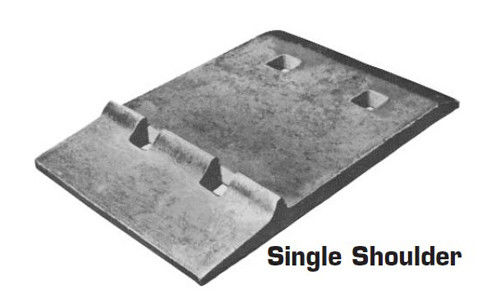

The tie plates of single shoulder is designed at the field end of the plate. The customers requires the rail base width becasue the plate's short end or gauge end is place inside of the rail track. If the rails weights running from 56lb though 100 lb. we suggest to use single shoulder tie plates in.
Rail Tie Plate:

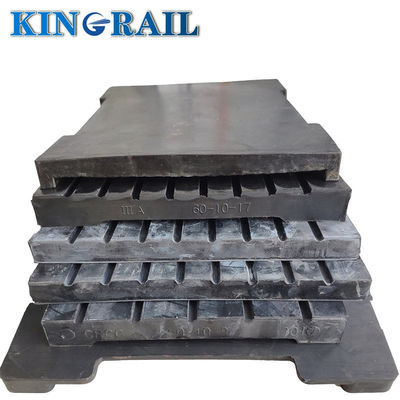

Rail tie plate is usually also called rail base plate or sole plate, it is the main component in railroad construction of a crane rail or track support system.
Function of the rail tie plate:Rail tie plates are used to support the rails and to fix the entire rail fastening systems. It always works with anchor bolts or spikes together by sustaining the load of a rail track and also transferring some part of the load to the tie sleepers. The tie plate has a flat smooth resting surface to guarantee the vertical alignment and keep the rail in correct gauge for a rail line system.
King Rail can product the rail tie plates by either casting(welded or fabricated type) or forging or rolling, for different rail sections, for wooden, steel or concrete sleepers, whatever the load and rail standard, i.e. UIC 60, UIC 54, RN 45, 90 A, etc.
The other types such as the hook twin type plates , rail sole plates or other standard plates are customized accordingly!
Technical Parameter of most popular rail shoulder or rail tie plates:
| Type | Dimension | Holes | Incline | Rail | Weight(Kg) |
| Rph 1/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,86 |
| Rp 01/01/160 | 345/285/127/160x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 7,70 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 | 345/285/127x210x15/13 | Ø 36,3 (2x) | 1:40 | S 49/S 54 | 10,55 |
| Rph 1/210 FVZ | 345/285/127x210x15/13 | Ø 26 (4x) | 1:40 | S 49/S 54 | 10,69 |
| Sph 1(a) | 345/350/127x410x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 20,60 |
| Rph 6/160 | 370/310/152x160x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 8,44 |
| Rph 6/210 | 370/310/152x210x15/13 | Ø 26 (4x) | 1:40 | UIC 60 | 11,32 |
| SZ 60 | 370/350/152x420x15/13 | Ø 26 (8x) | 1:40 | UIC 60 | 22,73 |
| Rph 11 Ü | 664/554x160 | Ø 26 (4x) | 1:40 | S 54 | 15,37 |
| Rph 13 Ü | 690/570x160 | Ø 26 (4x) | 1:40 | UIC 60 | 15,27 |
| Rpo 5 | 345/285/127x160x15/13 | Ø 26 (4x) | 1:20 | S 49/S54 | 8 |
