Product Details:
|
| Standard:: | IN | Bolt Hole Diameter:: | 22mm 24mm, As Customer's Requirement |
|---|---|---|---|
| Grade:: | 55Q/U71Mn,U71Mn | Length: | 9-12M |
| Rail Gauge:: | Normal Gauge | Specification:: | ISCR50,60,70,80,100,120 |
| High Light: | ISCR50 Rail Track,120In Standard Rail Track |
||
Introduction of ISCR50 60 70 80 100 120 In Standard For Rail Track Maintenance And Building
Tee Rail & Light Rail
Tee rail sections are used in a wide variety of applications ranging from transit authority systems to Heavy haul railways.
Light rail sections (85 lb/yd and less) are used for mining, industrial, and crane applications.

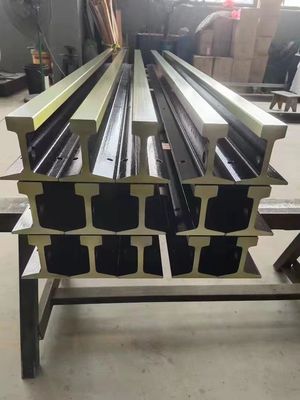

IN Standard Rail for Railway
| ISCR STEEL RAIL INDIA STANDRAD | |||||||
| SIZE | DIMENSION(mm) | WEIGHT (kg/m) | MATERIAL | LENGTH (m) | |||
| HEAD A (mm) | HEIGHT B (mm) | BASE C (mm) | WEB D (mm) | ||||
| ISCR50 | 51.2 | 90 | 90 | 20 | 29.8 | 55Q/U71Mn | 9-12 |
| ISCR60 | 61.3 | 105 | 105 | 24 | 40 | 55Q/U71Mn | 9-12 |
| ISCR70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 9-12 |
| ISCR80 | 81.7 | 130 | 130 | 32 | 64.2 | U71Mn | 9-12 |
| ISCR100 | 101.9 | 150 | 150 | 38 | 89 | U71Mn | 9-12 |
| ISCR120 | 122 | 170 | 170 | 44 | 118 | U71Mn | 9-12 |
Kingrail, as a specialized rail fastener manufacturer, provides a complete line of products, including rail fastening, anchor, rail joint, rail clip, rail screw, anchor bolt, rail clamp plate, rail fishplate, and fishplate bolt for connecting rail tracks.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
We believe in quality first principle of our company .What we sell not only the parts but also our industry knowledge ,experiences and service.
So please send your inquiry with drawing or specifcation details, will revert you good offer!
