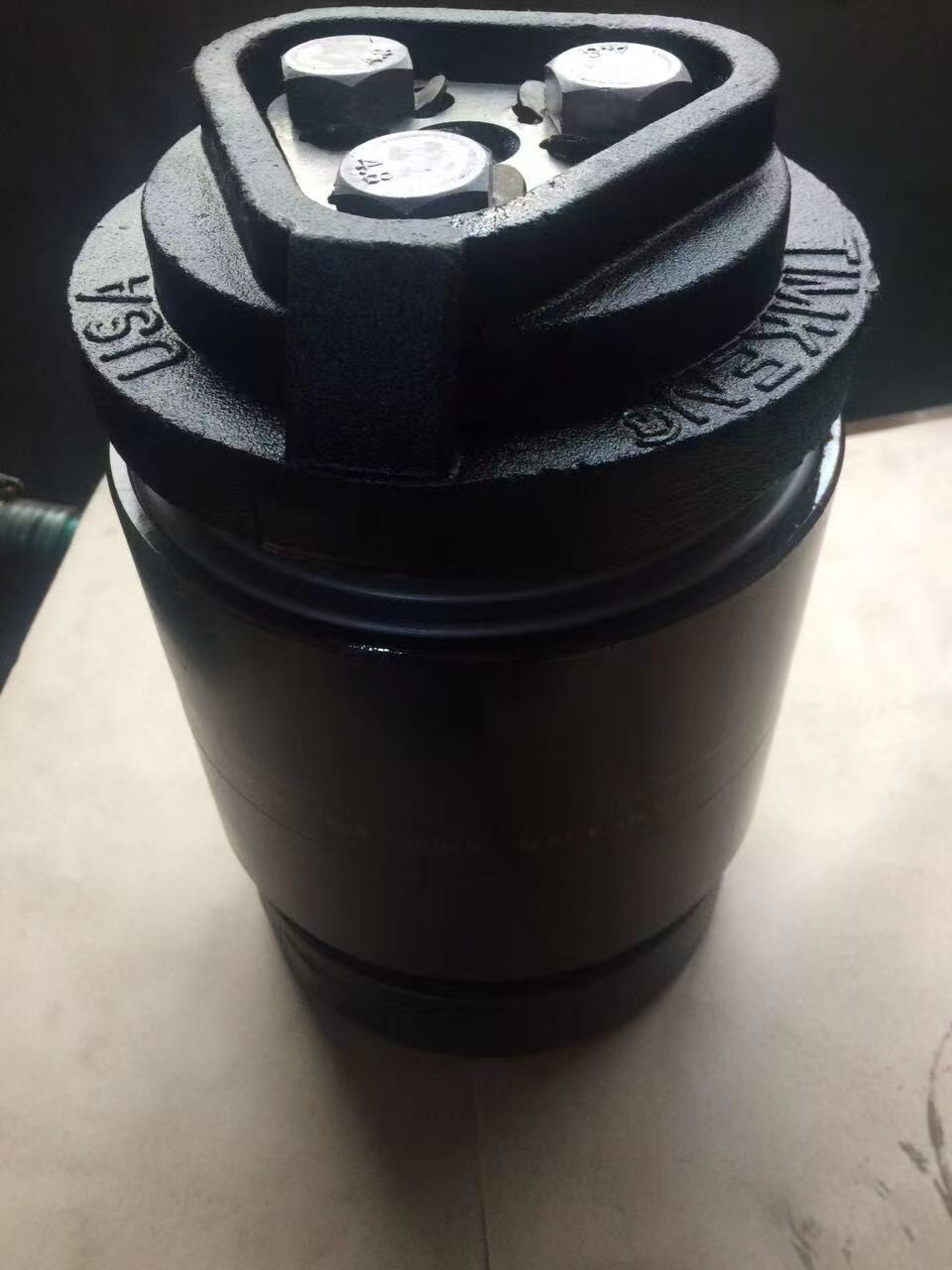

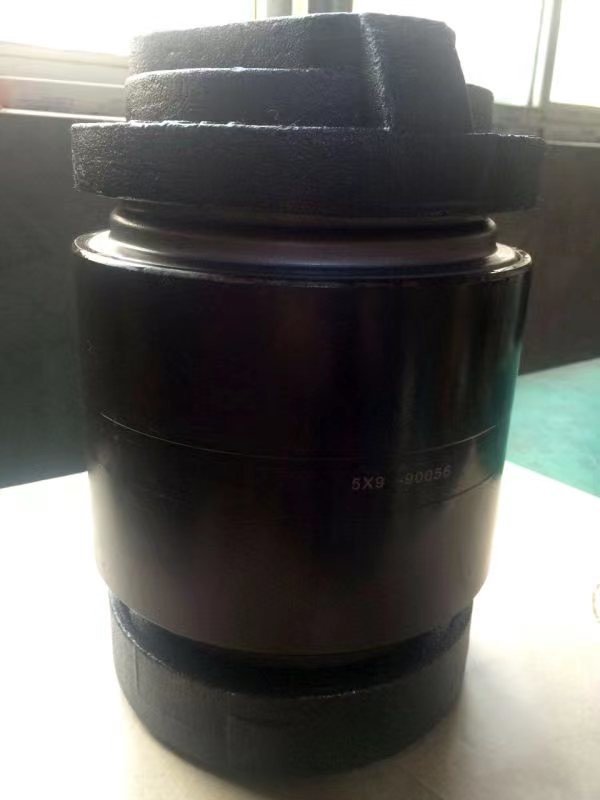

TBU 150x250x160 Tapered Roller Bearings 250 mm D CHROME STEEL Railway Bearing
| Place of Origin | China |
|---|---|
| Brand Name | Kingrail |
| Certification | GB/T 1222,DIN 17221 |
| Model Number | KRB16 |
| Minimum Order Quantity | 10000 |
| Price | USD$1-10 PER PC |
| Packaging Details | bulk bags and pallets or customized package |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100000000PCS PER YEAR |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| MATERIAL | CHROME STEEL | Name | CHROME STEEL Railway Bearing |
|---|---|---|---|
| Size | 150x250x154.5 Mm | Precision Rating | P0 P6 P5 P4 P2 |
| Application | Freight Wagons Including Heacy Wagons,subways And Light Rails |
Product Description
Roller bearings are a vital part of the traction system,which provides on axle i.e. axle box & motor suspension unit and also traction motor at both the ends. They are mainly grease lubricated cylindrical roller bearings for supporting axle or wheel set of the locomotives and armature of traction motors.
150 × 250 × 160
Bore Dia × Outside Dia × Width Dia (mm)
150 mm
Inside diameter(I.D)
OD :
250 mm
Outside diameter(O.D)
T(B) :
160 mm
Thickness(W.D)
C :
943 kN
Basic dynamic load rating, Radial
C0 :
1940 kN
Basic static load rating, Radial
Grease rpm :
700 r/min
Reference speed
M :
44.1 kg
Weight
Category :
Tapered Roller Bearings
Tapered Roller Bearings TBU150x250x160, 44.1 kg Bearing mass, (150*250*160 mm), 150 mm d (Bore: diameter of the inner ring), 250 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 160 mm B (Width: nominal width of the bearing), 943000 N radial dynamic load capacity (Dyn. Cr), 1940000 N radial static load capacity (Stat. Cor), 700 r/min Maximum RPM (Speed in grease),
Application:
Packaging & Delivery
- box and pallet
Why choose us?
* Reliable International company
* Contact us 24 hours a day
* Fast and flexible shipping options
* No MOQ,No order too big or small
* Only authentic parts from trusted manufacturers
* Fast and flexible shipping options
* No MOQ,No order too big or small
* Only authentic parts from trusted manufacturers
Trusted Manufacturers
We supply full model metric sizeTBU&CTBU series :B(4*8),C(5*9), D(51/2*10),E(6*11),F(61/2*12), G(7*12),GG(7)series railway freight car bearings and all bearings components including seals,ring,cap,locking plate,grease. We also supply railwaylocomotive bearing,wheels axles and railway fasteners.
We are in the city of Maanshan , where is the Baowu Group MASTEEL Rail Transit Materials Technology Co. Ltd the 9th biggest steel producer globally.Here is the oringinal source of steel materials with internatinal standards such as BS,AAR, JIS ,IRS and Gost, which ensure customer to get exceptional quality safety critical railway components at a very competitive price.
We believe in quality first principle of our company .What we sell not only the parts but also our industry knowledge ,experiences and service.
So please send your inquiry with drawing or specifcation details, will revert you good offer!
