AAR Standard Casting Railroad Wagon Railway Freight Bogie

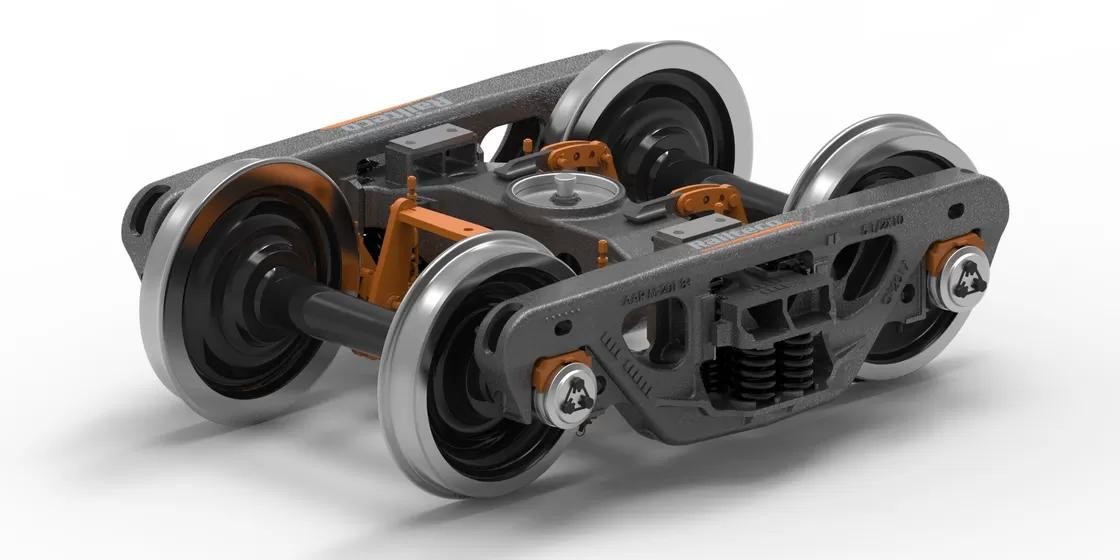

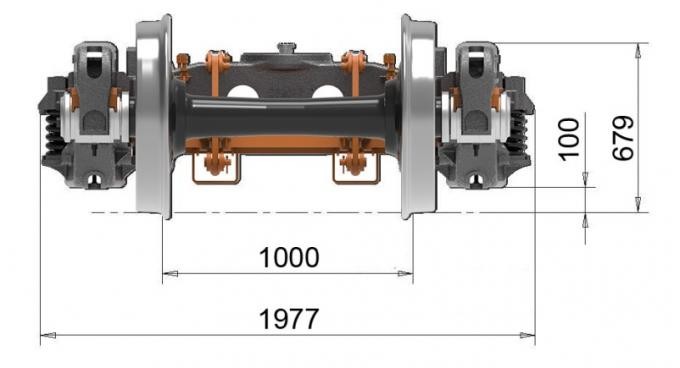

This kind of bogie is used on the railway gauge of 1000mm for new-making and servicing wagons. The (Max) axle load is 20t and the (Max) operating speed is 80km/h. The arrangement shall permit for ready accessibility for maintenance. This kind of bogie is belong to casting steel three-piece bogie which is mainly comprised of wheel set, side frame, bolster, brake rigging, center spring suspension system, Constant friction type snubbing device, roller bearing, and side bearing etc.

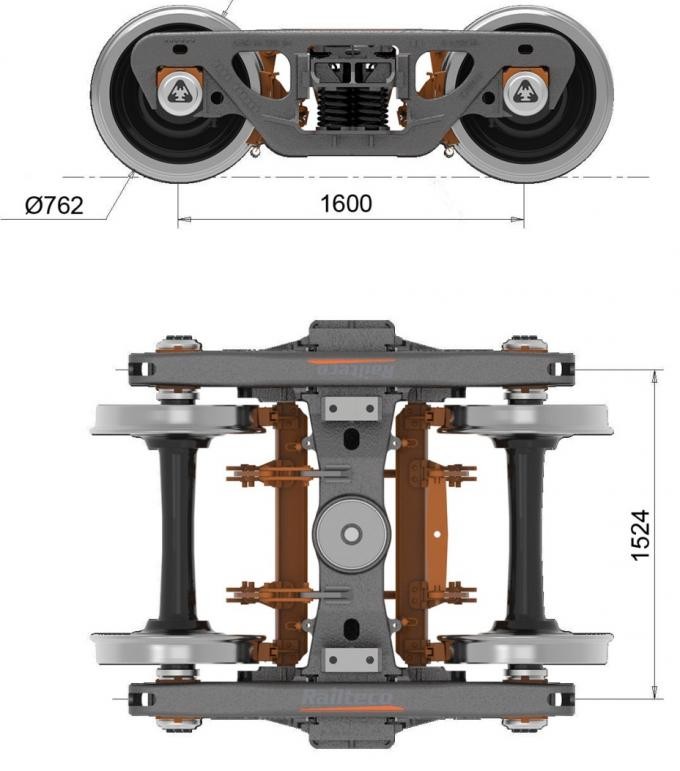

Axle is according to standard AAR M-101, normally the size of axle is 5 1/2ʺ×10ʺ.Wheel is according with AAR M-107/M-208,the diameter of wheels is 762mm.  Class D 5 1/2ʺ×10ʺ tapered roller bearings in accordance with AAR M-934, manufacturer is Timken,SKF or FAG.The bogie adopts basic brake device. There are 2 pcs of brake pull rods.

Package: four or five pcs in one bunch, packaged in Nylon Bag

or Wooden cases: export wooden cases with fumigation certifications

Delivery: within 45 days after order confirmed
