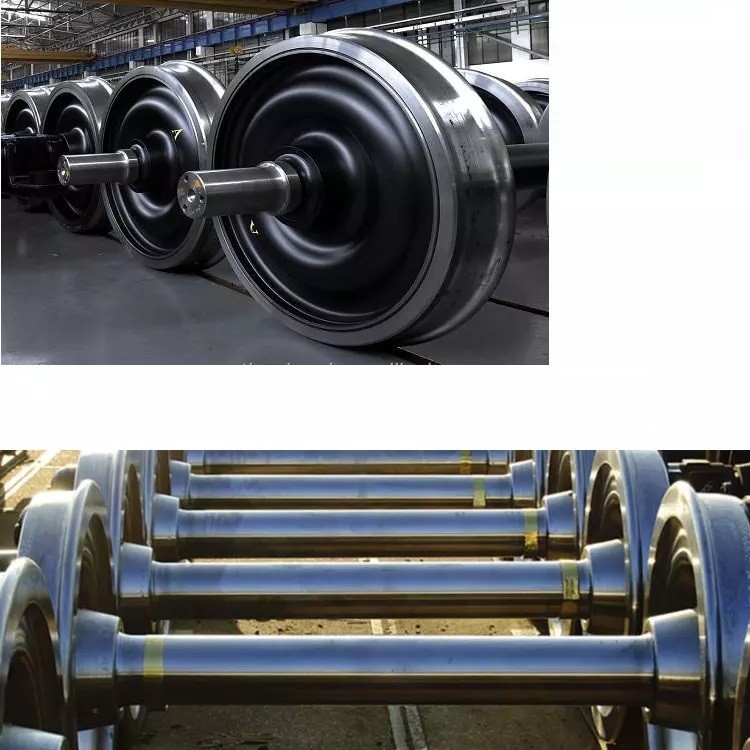

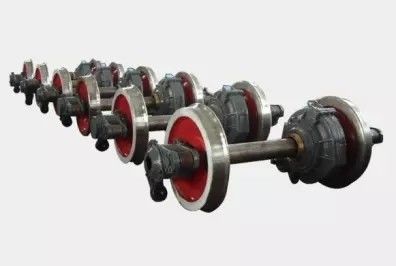

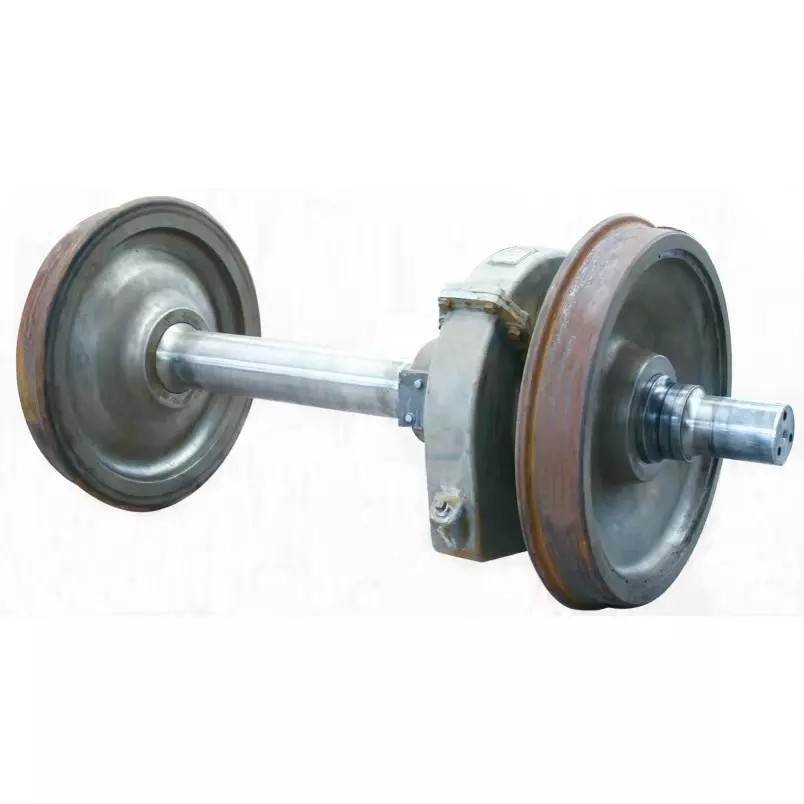

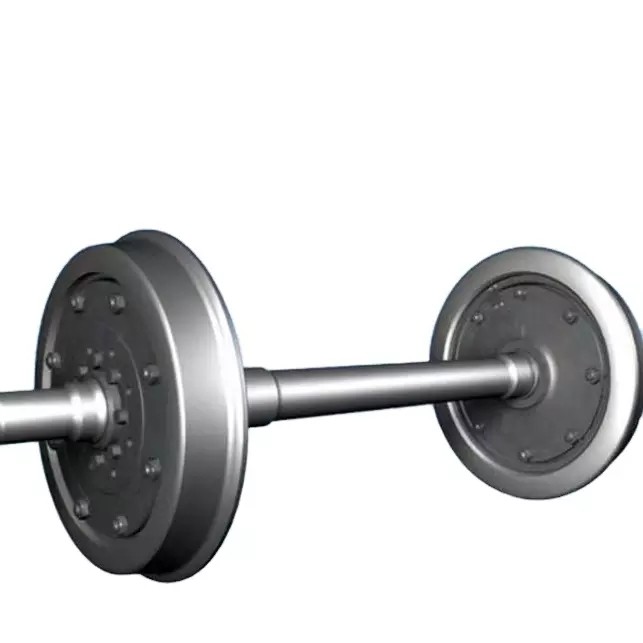

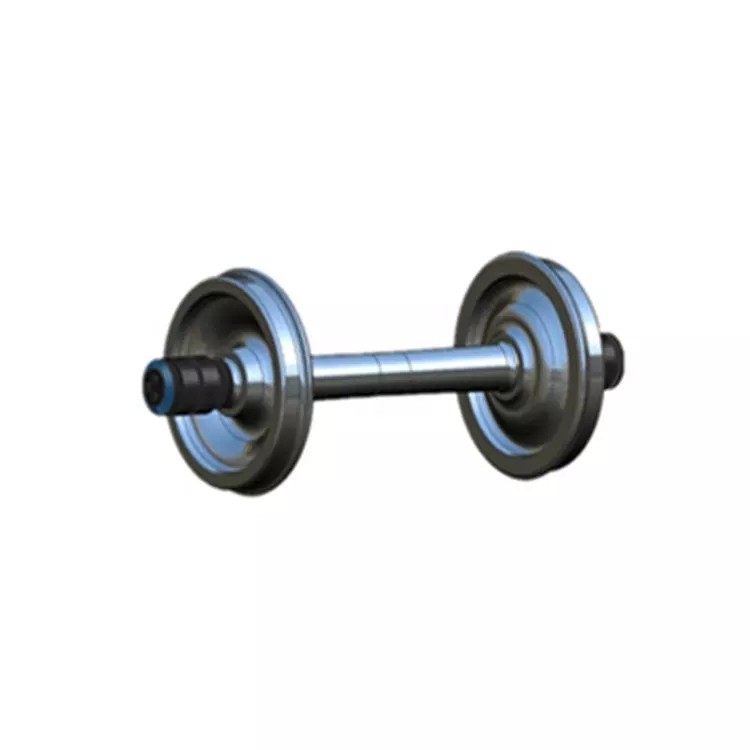

AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset

  • AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset
  • AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset
  • AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset
  • AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset
  • AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset
  • AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset
  • AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset
Place of Origin China
Certification ISO
Minimum Order Quantity 1
Delivery Time 60
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Wheelset Place Of Origin China
Material Iron, Steel, Gray Iron,Nodular Cast Iron, Iron, Steel Quality High Quality
Packaging Cartons ,wooden Cases Or According To Customers' Requirements
Highlight

industrial steel crane wheelset

,

AAR crane rail wheel

,

steel trolley rail wheels
Leave a Message
Product Description
Overview

Quick Details
Type:
wheelset....
Material:
CL65
Dimensions (L x W x H) (mm):
600mm-1250mm
Place of Origin:
Anhui, China
Model Number:
762mm
Origin:
Maanshan
Warranty:
5years
Materia:
Carbon steel
Package:
Steel package
Service:
engineers avaiable
Dimensions:
according to your drawing
Supply Ability
Supply Ability
10000 Pair/Pairs per Year railway wheel sets , train parts , rail wheel
Packaging & Delivery
Packaging Details
wooden package .standard export package
Maanshan forging carbon steel wheel axles Maanshan forging alloy steel wheel axles
Port
SHANGHAI
Lead Time:
45DAYS

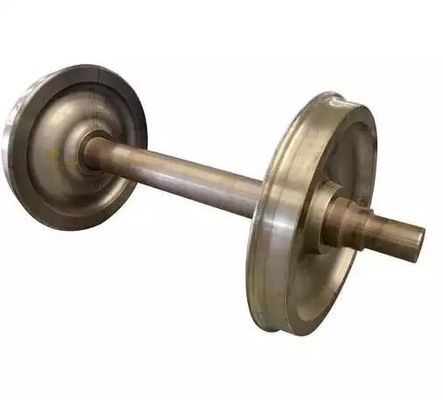

AAR standard Wheelset for Railway Vehicles

760mm wheelset

1. Drawing

760mm wheel +2160mm axle

AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset 0

AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset 1

2.Main dimension:

Product NO. MTJ760WHEELSET
Wheel outer diameter 760 mm
Wheel material CL60
Axle length 2160 mm
Axle material LZ50
Distance between the internal wheel faces 1353 mm





3.We can offer:

Railway wheel
Thread diameter, d/mm width of rim, l1/mm gauge/mm weight /kg axle loade/t
650-2000 95-160 narrow gauge, 1000, 1435 165-1050 12-35







Railway axle
Length, L/mm Distance between two journal centers,L1/mm Axle journal diameter,D1/mm wheel seat diameter,D2/mm axle body diameter,D3/mm alxe load/t
2062-2356 1905-2007 100-180 155-241 138-215 12-35
Forging Part



Forged steel rail wheel and wheelset


Material ER6,ER7,ER8,ER9,R7T,R8T,R9T,CL60
Dimension According to your drawings
Application Heavy industrial equipment
Inspection Chemical composition; UT,MT; mechanical property; dimension check
Standard IRS,BS,UIC,AAR,BN,GB,TB/T,EN
QC Doc Chemical composition report mechanical properties report; UT test report; heat treatment report; dimensions check report.
Forging Processing Ingot---forging---heat-treatment---rough machining---UT.MT---Q+T---inspection---finishing machining---UT.MT---packing
Heat Treatment Normalized / Annealed / Quenched / tempered

AAR Crane Rail Wheel Industrial Trolley Steel Crane Wheelset 2



Maanshan forging steel wheel axles

Packaging & Shipping



Maanshan forging stainless steel wheel axles
