Product Details:
|
Standard: | American Standard ASTM A1 ASCE | Grade: | Q235B, 55Q, U71Mn |
---|---|---|---|
Length: | 5m~12m | Weight: | 30.1kg/m |
Usage: | Light Crane, Mining Tracks, Automatic Warehouse, Etc. | Bolt Hole Diameter: | ASTM Standard |
Place Of Origin: | China | Type: | Light Rail |
Material: | Q235B, 55Q, U71Mn | Certificate: | ISO9001:2008 |
High Light: | 45 LBS Steel Rail,ASCE 45 Rail,Light Crane Steel Rail 5m |

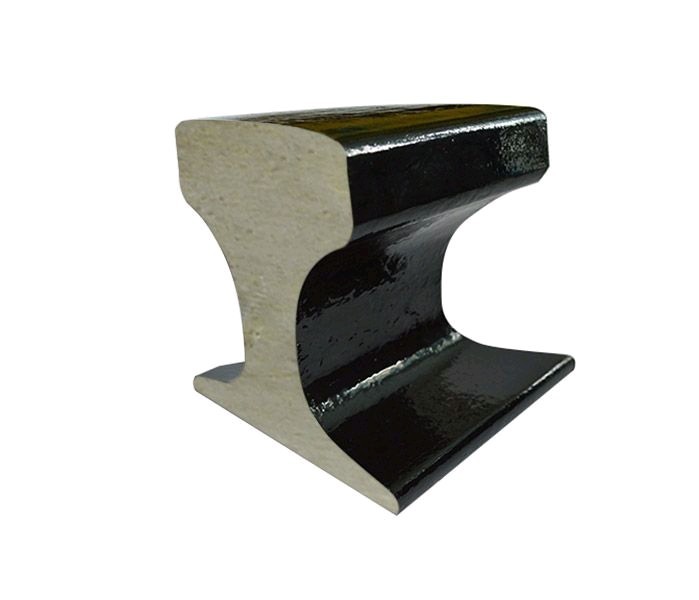

ASCE rails are primarily designed for use in light overhead cranes, mining tracks, automated warehouse retrieval systems, and more.
Dimensions
Standard | ASTM | |||
Model | Dimension | |||
Head Width(mm) | Height(mm) | Bottom Width(mm) | Web Thickness(mm) | |
45LBS Rail | 50 | 94 | 93 | 12 |
Drawings
