Product Details
Material Q235 Or Q345 Steel Production Casting Or Forging, Hot/cold Rolled
Standard BS, DIN, GB, JIS, UIC, Etc Processing Service Moulding, Cutting
Application Rail Construction Project Maintenace Quality Control Semi-finished Inspection And Finished Inspection
Highlight

Casting Iron Railroad Rail Tie Plates

,

China Railroad Rail Tie Plates

,

OEM Railroad Rail Tie Plates
Leave a Message
Product Description

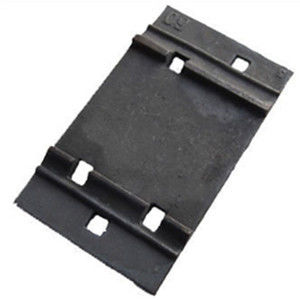

Railway tie plates, also called rail base plates or rail sole plates, are steel plates used on rails, between the flanged T-shaped rails and the sleepers.



As a professional manufacturer, Kingrail Parts can supply rolled tie plates, cast tie plates and forged tie plates. Our steel tie plates can meet GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS and other standards.



Our steel tie plates:

* Single shoulder tie plates

The shoulder of a single shoulder tie plate is always designed at the end of the tie plate. Our single shoulder tie plates are usually used for rails with weights ranging from 56 pounds to 100 pounds.



* Double shoulder tie plates

Our double shoulder tie plates are usually used for rails with weights greater than 100 pounds, and are available in 2-hole, 4-hole, 5-hole, 6-hole and 8-hole types.



* Hook Twin Tie Plate

Commodity Mark Length Height Weight (lbs/pcs) Weight (kgs/pcs)
Hook Twin Tie Plates L23 23'' 9/16'' 18.8 8.535
L27 27'' 9/16'' 22.2 10.079
L31 31'' 9/16'' 25.6 11.622
H23 23'' 15/16'' 19.1 8.671
H27 27'' 15/16'' 22.5 10.215
H31 31'' 15/16'' 25.9 11.759
LR23 23'' 9/16'' 18.8 8.535
LR27 27'' 9/16'' 22.2 10.078
LR31 31'' 9/16'' 25.6 11.622

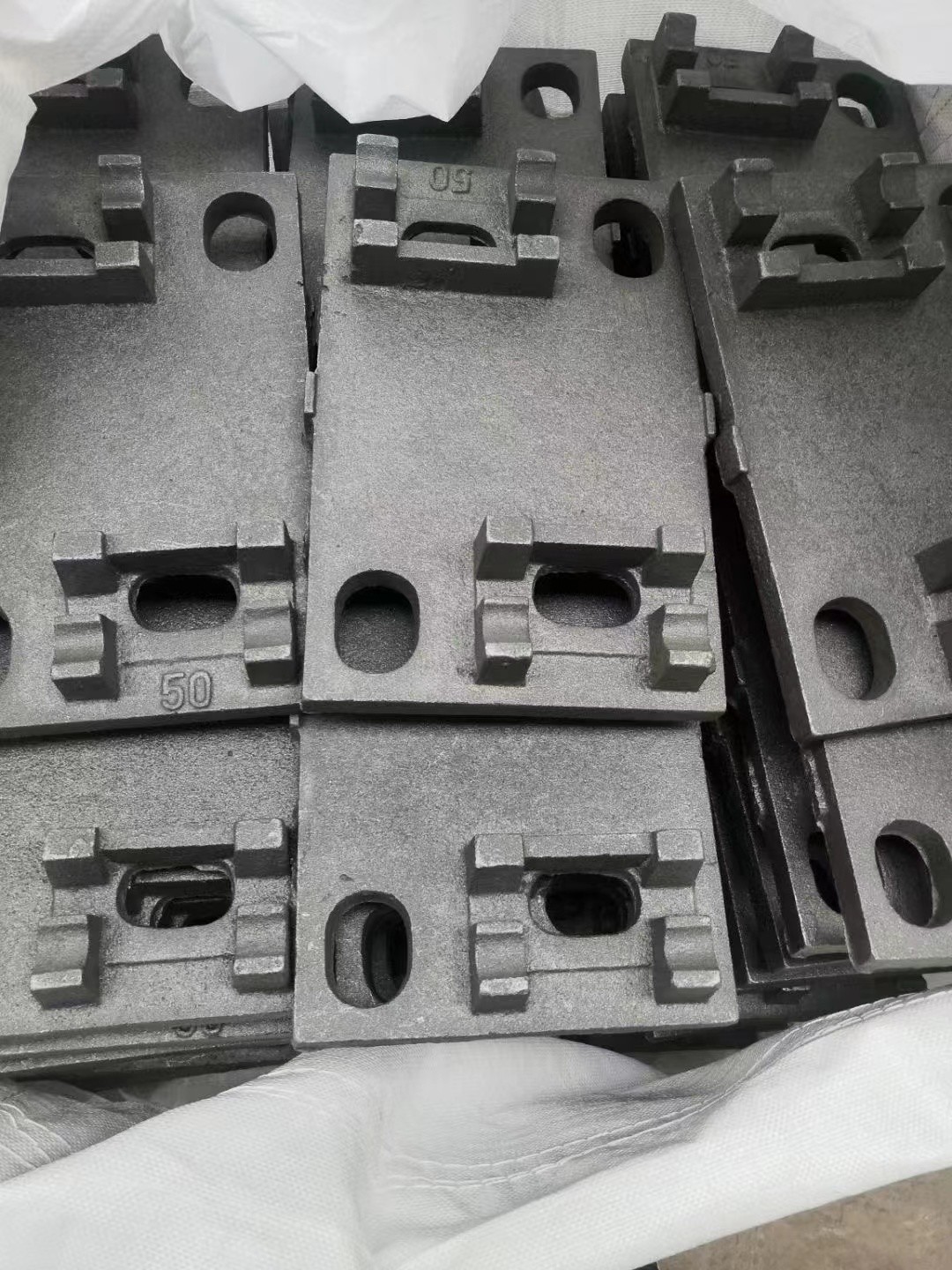

* Forged Tie Plate, Cast Tie Plate

Appications Apply for rail UIC54, UIC60, 50kg rail, 60kg rail, S49 and size as ordered
Raw Material QT500-7 (Casting iron) QT450-10 (Casting iron) Low Carbon Steel High Carbon Steel
Chemical Compostition (%) C:3.60-3.80, Mn:≤0.6,
Si:2.50-2.90, P:≤0.08, S:≤0.025		 C:3.40-3.90, Mn:0.2-0.5,
Si:2.70-3.00, P:≤0.07, S:≤0.03
Production Engineering Forging ,Casting ,Rolling
Surface Treatment Plain ,Sandblasting
Standard Reference AREMA ,GB,JIS E1110, UIC864-6
