AREMA Standard Steel Railroad Rail Track Tie Plates for Rail Construction Project

Railroad tie plates, also known as rail base plates or rail sole plates, are steel plates used on rails between the flanged T-shaped rails and the sleepers.

As a professional rail fastener manufacturer, Kingrail Parts is able to manufacture railroad tie plates by casting (welded or fabricated), forging or rolling.

Kingrail Parts railroad tie plates meet AREMA, UIC, BS and other standards and can be made into single shoulder or double shoulder tie plates according to customer requirements.

Single Shoulder Railroad Tie Plates

Single Shoulder Railroad Tie Plates are always designed with the shoulder at the end of the tie plate. Our single shoulder railroad tie plates are usually used for rails ranging from 56 pounds to 100 pounds.

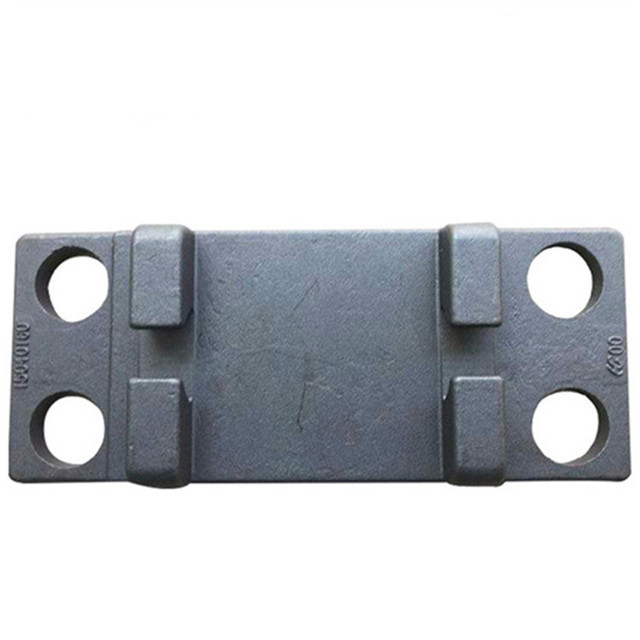

Double Shoulder Railroad Tie Plates

Our double shoulder railroad tie plates are usually used for rails weighing more than 100 pounds and are available in 2-hole, 4-hole, 5-hole, 6-hole and 8-hole types.

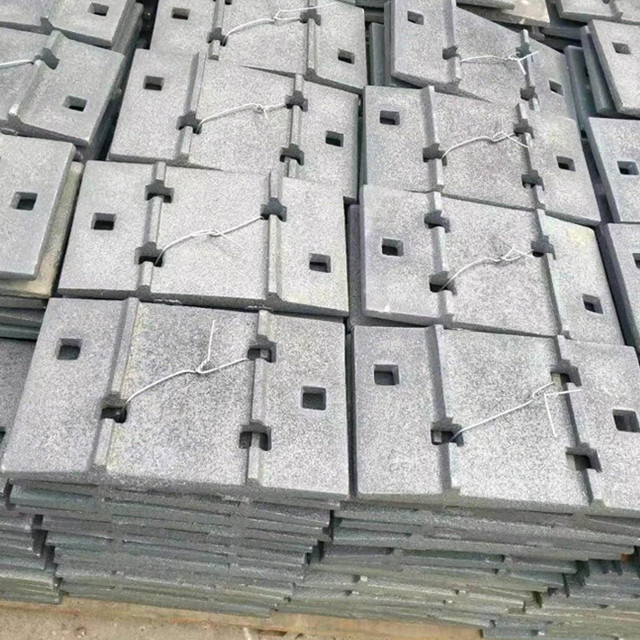

Casted rail tie pads

Type: Suitable for UIC54, UIC60, 50kg rail, 60kg rail, S49 and ordering size

Material: QT500-7 or QT450-10 (mild steel, high carbon steel forging, low carbon steel S275JR, Q235 etc. rolling)

Standard reference: UIC864-6

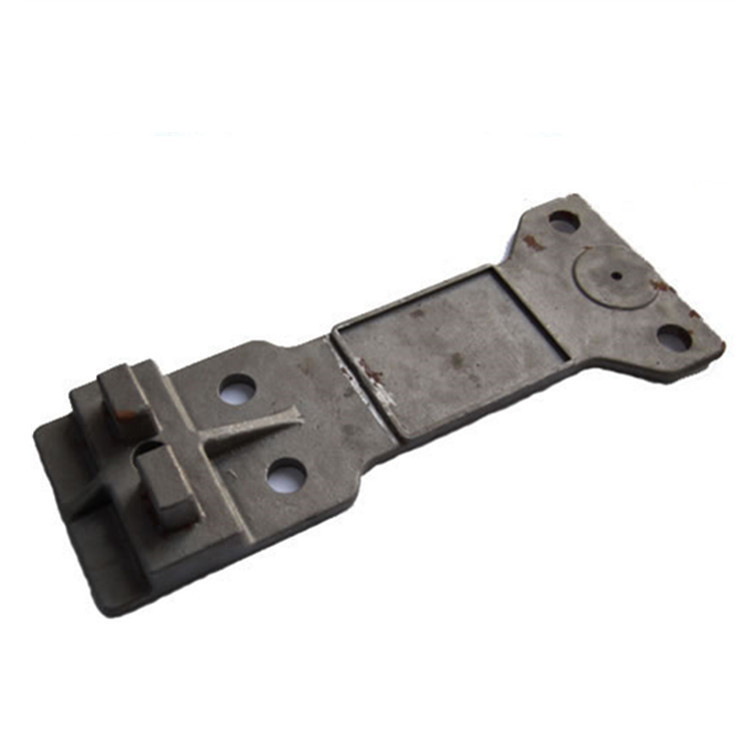

AREMA hook twin tie plate

Other types of rail base plates

We can produce any other type of rail base plates or sleeper plates according to customer's drawings, providing complete dimensions and other technical specifications, including processing technology.

Contact us

Please contact us for more information and quotation.
