Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
| Place of Origin | China |
|---|---|
| Brand Name | Kingrail |
| Certification | CE ISO CCC ROHS |
| Model Number | Double Shoulder Tie Plates |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | standard export package, or as per customer request |
| Delivery Time | 1-30 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 ton/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 Or Q345 Steel | Production | Casting Or Forging, Hot/cold Rolled |
|---|---|---|---|
| Standard | BS, DIN, GB, JIS, UIC, Etc | Processing Service | Moulding, Cutting |
| Application | Rail Construction Project Maintenace | Quality Control | Semi-finished Inspection And Finished Inspection |
| Highlight | Ribbed Steel Rail Sole plate,Ribbed Steel Rail Base Plate,Ribbed Steel Rail Sole plate |
||
Product Description

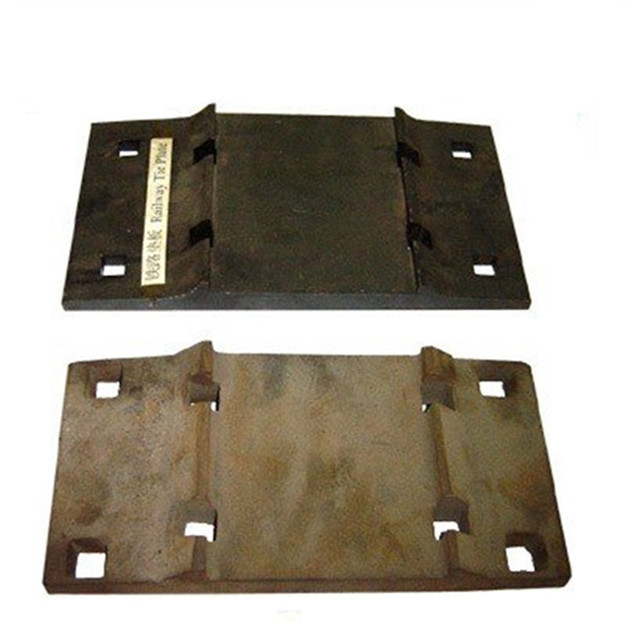

Sole plates are used to support the rails in the railway structure. Common practice is to reinforce the concrete with a steel sole plate.
Depending on the load and the type of rail, Kingrail Parts can provide either continuous support or discontinuous sole plates. Both types of sole plates can be bolted or welded with rail clips.
We can provide various types of sole plates for discontinuous support. In addition to standard sole plates, we also provide customized sole plates.
Continuous Sole plate
Length: Standard 5,980 mm
Width: Varies between 150 and 500 mm
Thickness: Varies between 12 and 50 mm; the base of the track plays a role
Material: S235JR, S275JR, S355J0
Discontinuous Sole plate
Length: Varies between 150 and 300 mm
Width: Varies between 150 and 500 mm
Thickness: Varies between 12 and 50 mm; the base of the track plays a role
Material: S235JR, S275JR, S355J0
Contact Us
Please contact us for more information and a quote.
