Large Forging Helical Gear Shaft with JIS E 4502 Standard

Large Forging Helical Gear Shaft with JIS E 4502 Standard

Brand Name:	Kingrail
Model Number:	BA025
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	1-30 working days
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CB, CE, EMC, RoHS SABER

Standard:

EN 13261, AAR M-101, IRS 16/95, JIS E 4502, TB/T 2945, BS 5892, KS9220

Material:

LZ50, JZ45,AAT Grade F, EA1N, EA1T, EA4T, IRS 16/95, SFA60A,

Dimensions (L X W X H) (mm)::

As Customer's Drawings

Certifications:

UIC/TSI

QC Doc:

Chemical Composition Report Mechanical Properties Report; UT Test Report; Heat Treatment Report; Dimensions Check Report.

Packaging Details:

standard export package, or as per customer request

Supply Ability:

10000PCS/YEAR

Highlight:

Large Forging Helical Gear Shaft

Large Forging Gear Shaft

Large Helical Gear Shaft

Product Description

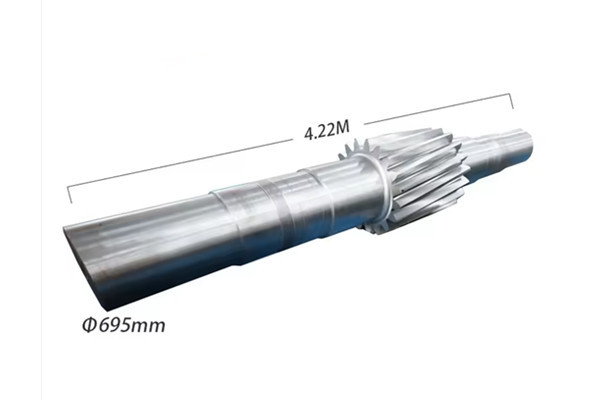

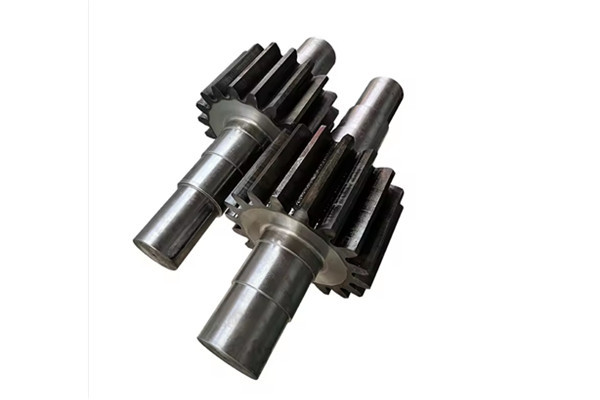

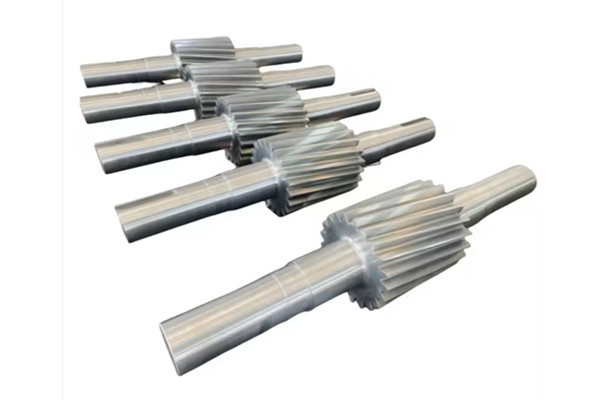

As a professional gear shaft manufacturer, Kingrail Parts can produce helical gear shafts of various sizes and types.

We have rich experience and strong forging capabilities, and can process products according to customers' drawings and requirements.

Our large helical gear shafts are often used in industrial applications that require high torque and high power transmission. Such as heavy machinery, mining equipment, wind turbines, industrial gearboxes, etc.

Specifications:

Material		Carbon Steel , Alloy Steel,42CrMo,34CrNiMo,40CrNiMo
Standard		ASTM DIN . EN GOST JIS ETC

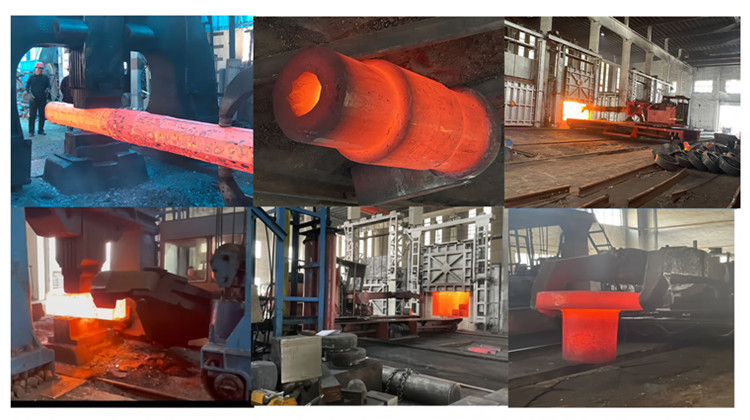

Workplant		Forging , Casting and Welding
Module of Gear		20-120
Gear Grinding		MAX Module 25
Diameter of Gear Wheel :		MAX 13 000 mm
Diameter of Spiral Gear :		MAX . 2 200 mm
Length of Gear Shaft :		MAX 5 000 mm
Segments Gear Offered :		2parts,4parts,8parts,12parts or as customer requirement
Heat Treatment		Q&T
Gear Teeth treatment		Surface hardening,cemented and quenching

Manufacturing Process:

1. Gear Design 2. Gear Cutting 3. Heat Treatment 4. Machining and Finishing 5. Gear Inspection 6. Balancing 7. Surface Treatment 8. Assembly

Get More Help

Do you have any specific questions about gear shafts? Please contact us. Our sales engineers will work with you throughout the process to ensure that your project meets your requirements.

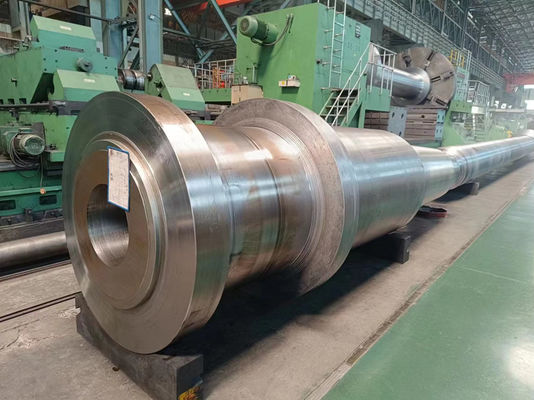

Large Forging Helical Gear Shaft with JIS E 4502 Standard 0

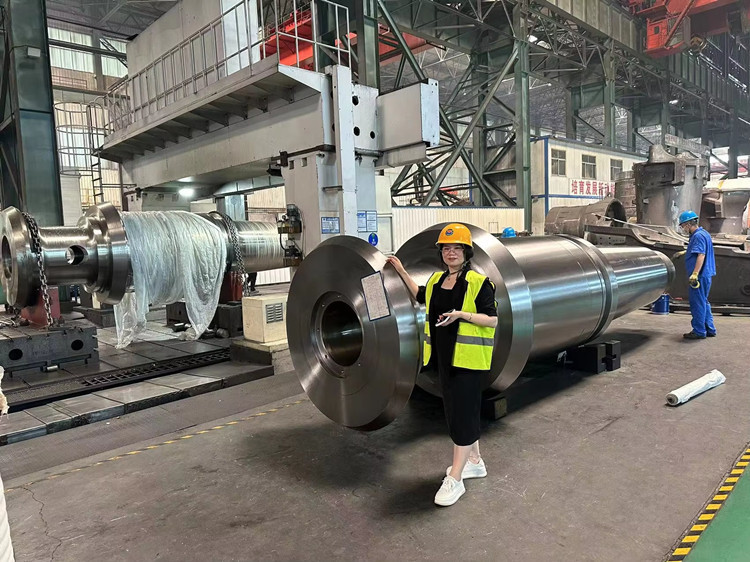

Large Forging Helical Gear Shaft with JIS E 4502 Standard 1

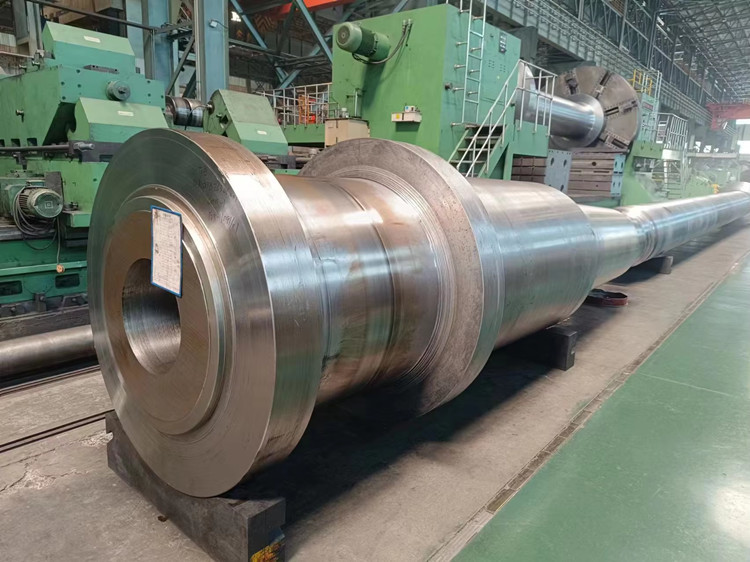

Large Forging Helical Gear Shaft with JIS E 4502 Standard 2
