Forged Steel Spline Gear Shaft UT Test Report

Forged Steel Spline Gear Shaft UT Test Report

Brand Name:	Kingrail
Model Number:	BA025
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	1-30 working days
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CB, CE, EMC, RoHS SABER

Standard:

EN 13261, AAR M-101, IRS 16/95, JIS E 4502, TB/T 2945, BS 5892, KS9220

Material:

LZ50, JZ45,AAT Grade F, EA1N, EA1T, EA4T, IRS 16/95, SFA60A,

Dimensions (L X W X H) (mm)::

As Customer's Drawings

Certifications:

UIC/TSI

QC Doc:

Chemical Composition Report Mechanical Properties Report; UT Test Report; Heat Treatment Report; Dimensions Check Report.

Packaging Details:

standard export package, or as per customer request

Supply Ability:

10000PCS/YEAR

Highlight:

Forged Steel Spline Gear Shaft

Spline Gear Shaft

Product Description

A spline shaft is a mechanical component used to transmit torque and power between two rotating objects, such as gears or couplings.

As a professional manufacturer, Kingrail Parts can provide a variety of sizes of spline gear shafts. We can also customize spline gear shafts according to customer specifications and requirements.

Specifications:

Material		Carbon Steel , Alloy Steel,42CrMo,34CrNiMo,40CrNiMo
Standard		ASTM DIN . EN GOST JIS ETC
Workplant		Forging , Casting and Welding
Module of Gear		20-120
Gear Grinding		MAX Module 25
Diameter of Gear Wheel :		MAX 13 000 mm
Diameter of Spiral Gear :		MAX . 2 200 mm
Length of Gear Shaft :		MAX 5 000 mm
Segments Gear Offered :		2parts,4parts,8parts,12parts or as customer requirement
Heat Treatment		Q&T
Gear Teeth treatment		Surface hardening,cemented and quenching

Manufacturing Process:

1. Design 2. Machining 3. Heat Treatment 4. Finishing

Get More Help

Do you have any specific questions about the design and manufacturing of spline shafts? Please contact us. Our sales engineers will work with you throughout the process to ensure that your project meets your requirements.

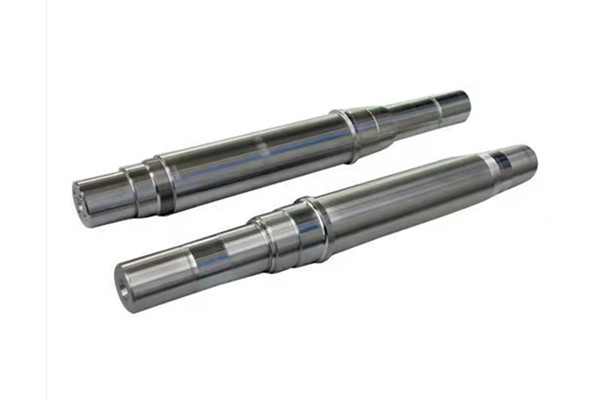

Forged Steel Spline Gear Shaft UT Test Report 0

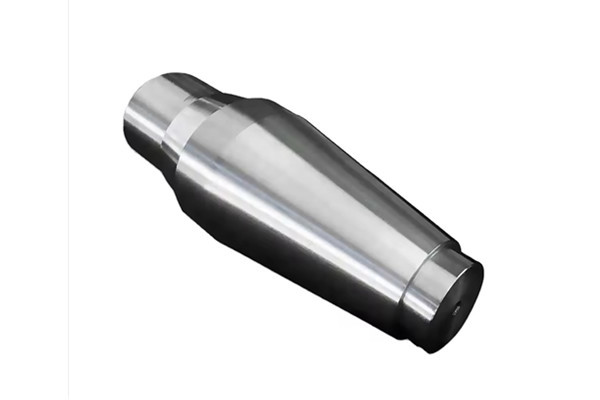

Forged Steel Spline Gear Shaft UT Test Report 1

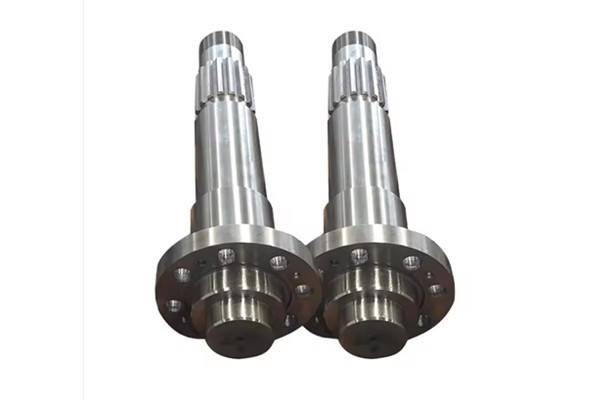

Forged Steel Spline Gear Shaft UT Test Report 2
