Customized Q235 or Q345 Steel Crane Rail Sole Plate and Base Plate
| Place of Origin | China |
|---|---|
| Brand Name | Kingrail |
| Certification | CE ISO CCC ROHS |
| Model Number | Crane Rail Sole Plate |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | standard export package, or as per customer request |
| Delivery Time | 1-30 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 ton/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 Or Q345 Steel | Production | Casting Or Forging, Hot/cold Rolled |
|---|---|---|---|
| Standard | BS, DIN, GB, JIS, UIC, Etc | Processing Service | Moulding, Cutting |
| Application | Rail Construction Project Maintenace | Quality Control | Semi-finished Inspection And Finished Inspection |
| Highlight | Steel Crane Rail Sole Plate,Base Plate Crane Rail Sole Plate |
||
Product Description

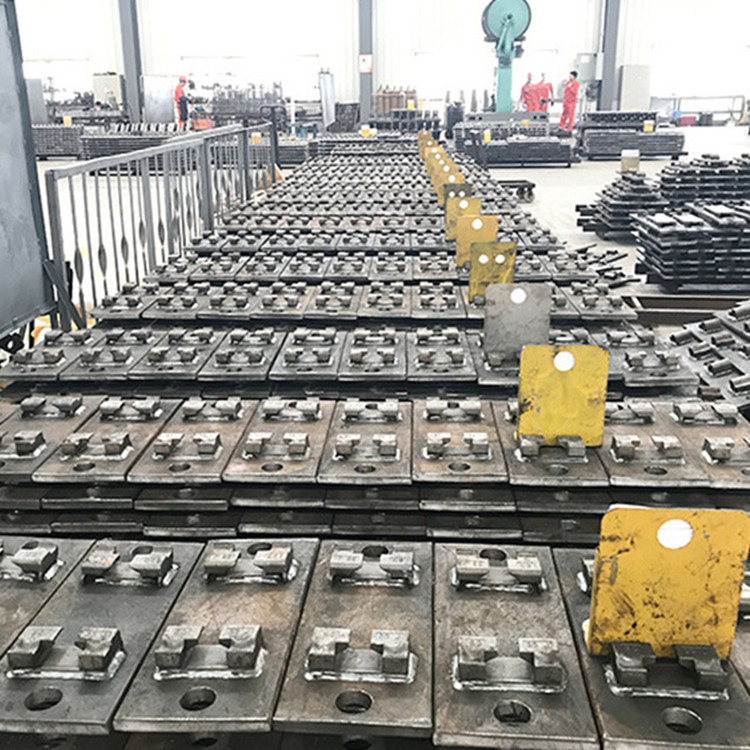

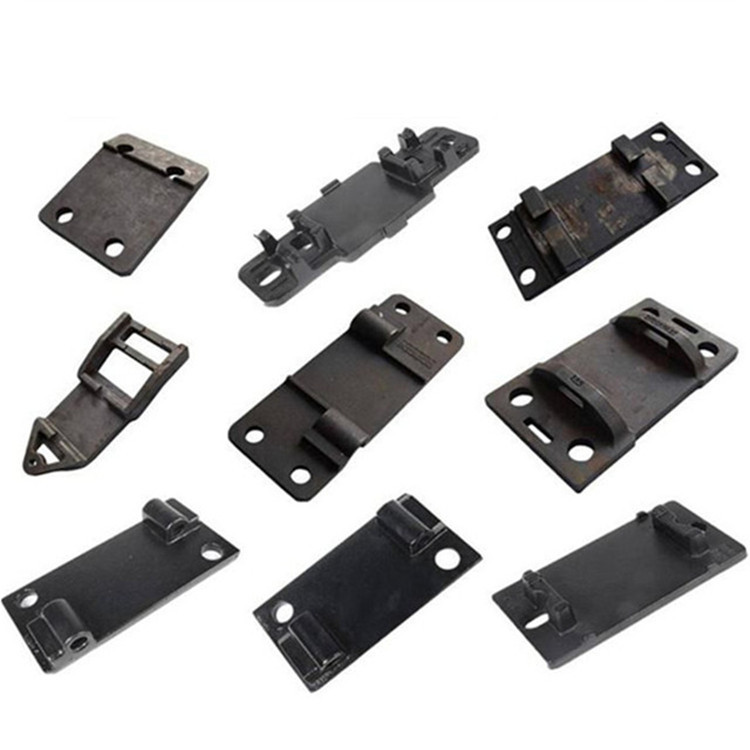

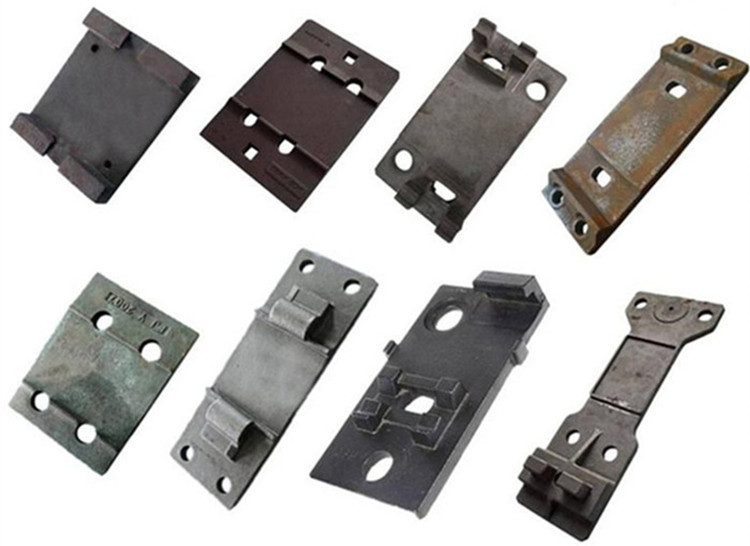

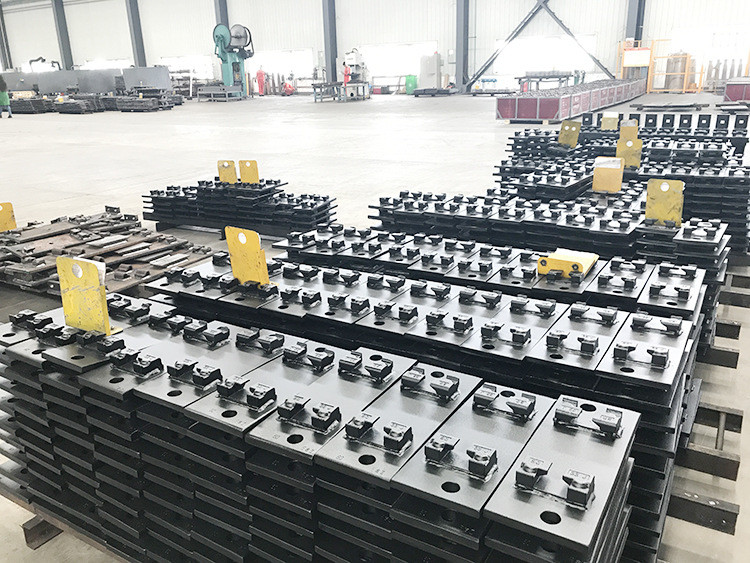

Sole plates play a very important role in the rail mounting system of overhead cranes, port cranes or gantry cranes.
Depending on the load and rail type, Kingrail Parts can provide continuous sole plates and single sole plates. We can also customize steel sole plates according to your requirements.
Continuous Steel Sole Plate
The continuous sole plate is used to carry heavy rails and is fixed with bolted rail clamps or welded rail clamps.
Our steel sole plates are made of carbon steel plates above 20MM. There are fixing threaded holes and leveling bolt holes on the steel sole plate, which are connected and leveled with the on-site concrete foundation.
Single Steel Sole Plate
Lighter lifting equipment can use single sole plates. Compared with continuous sole plates, single sole plates save materials, have less construction and are easy to install.

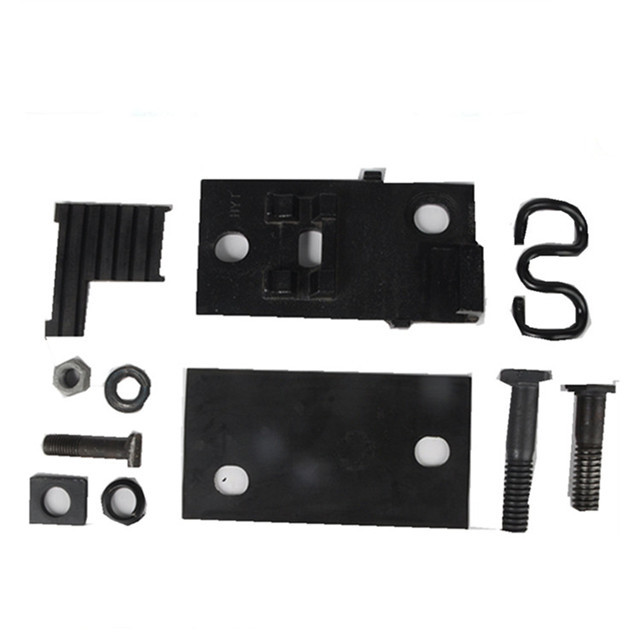

The single sole plate has holes for connection with anchor bolts and holes for installing bolt rail pressure plates.
