Hot DIP Galvanizing Carbon Steel Rail Fish Plate Bolt China Manufacturer
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Available Material | High Strength Steel, Stainless Steel, Carbon Steel | International Standard | DIN, ANSI, GB, JIS, Bsw, GOST |
|---|---|---|---|
| Used | Railway Fastening Syestem | Head Type | Cup Tap Head And Oval Neck |
| Class/Grade | 3.6, 4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9 | Surface Finishing | Hot DIP Galvanizing, Blu-White Zinc Plated |
| Finish | Black | Specification | M6-M100 |
| Name | High Quality Fish Bolt Carbon Steel Grade4.8/8.8/10.9/12.9 Fishtail Bolt Cup Head Elliptic Neck Bolts For Track/ Oval Neck Track Bolts | ||
| Highlight | China Rail Fish Plate Bolt Manufacturer,Carbon Steel Rail Fish Plate Bolt,China Rail Fish Plate Bolt |
||
Product Description

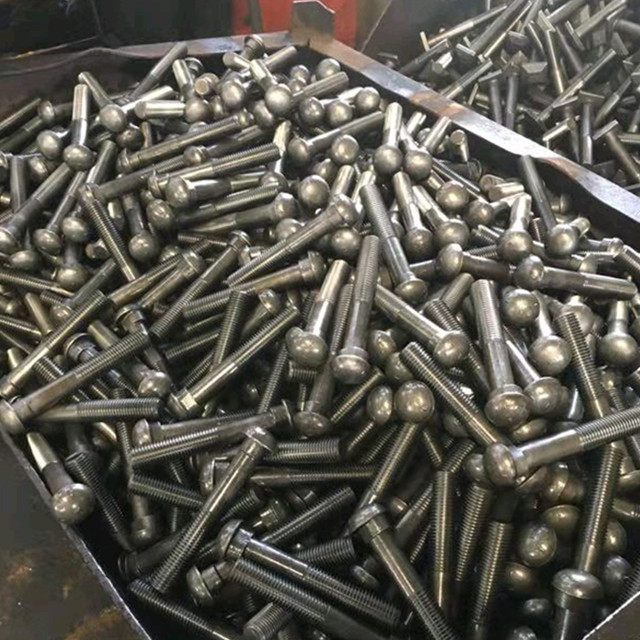

Fish bolts are used together with fish plates for the connection of rails.
Kingrail Parts can provide rail fish bolts of various sizes. Our fish bolts are manufactured in accordance with various international standards, such as BS, ASTM and Din, etc.
Specifications:
Standards: GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS, etc.
Grades: 4.8, 6.8, 8.8, 10.9, 12.9
Material: Q235, 45#, 40Cr, 20Mntib, stainless steel, etc.

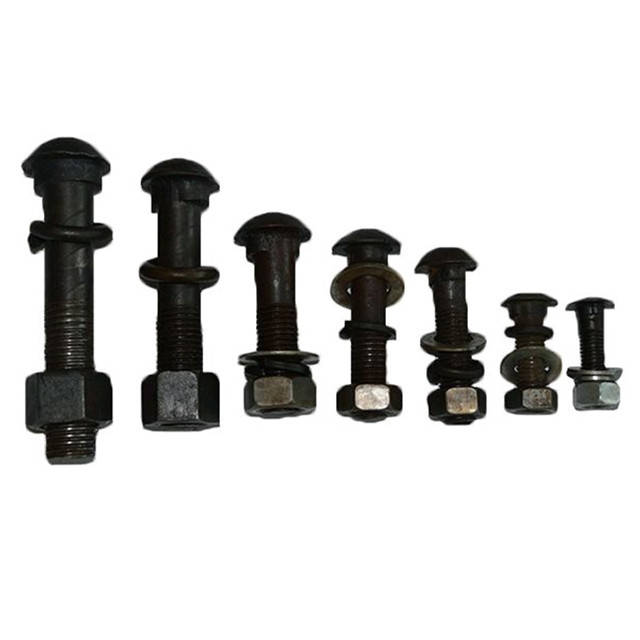

Size: M12-M24 or as required by customers
Length: 45mm-145mm or as required by customers

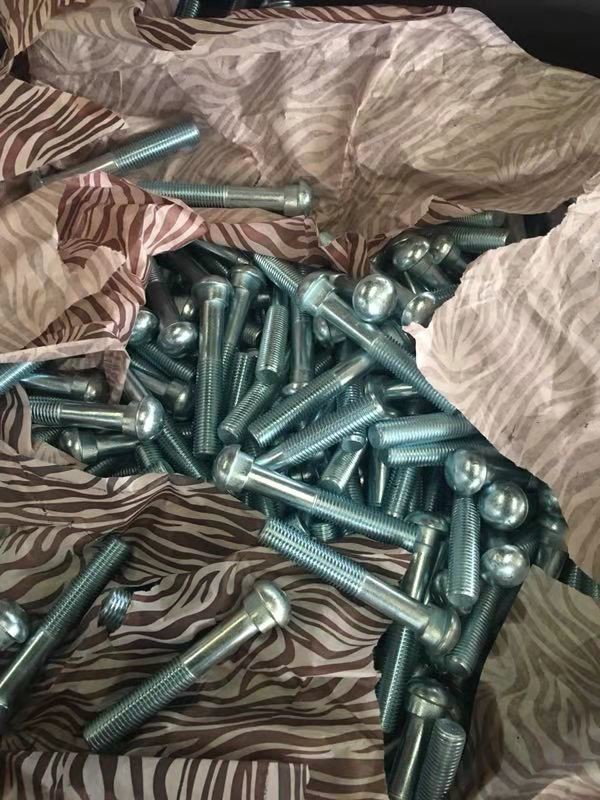

Surface: natural color, black, galvanized, or as required by customers
Purpose: used to fix the rail fish plate to the rail
Non-standard can be provided if the buyer provides drawings or samples OEM

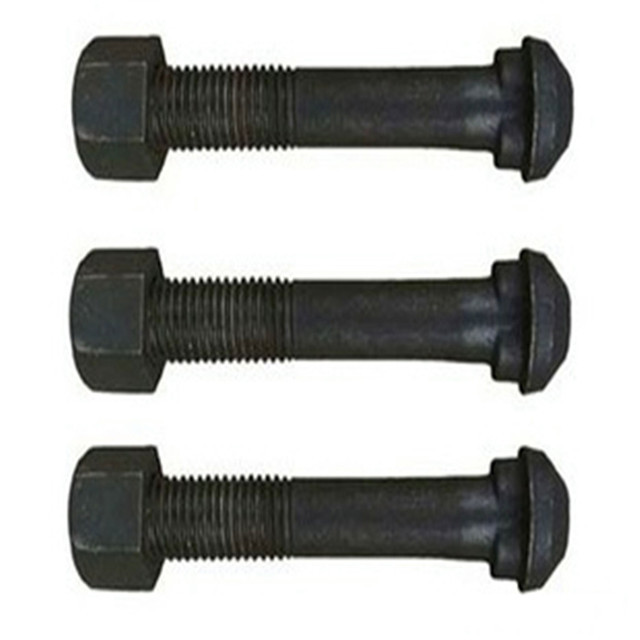

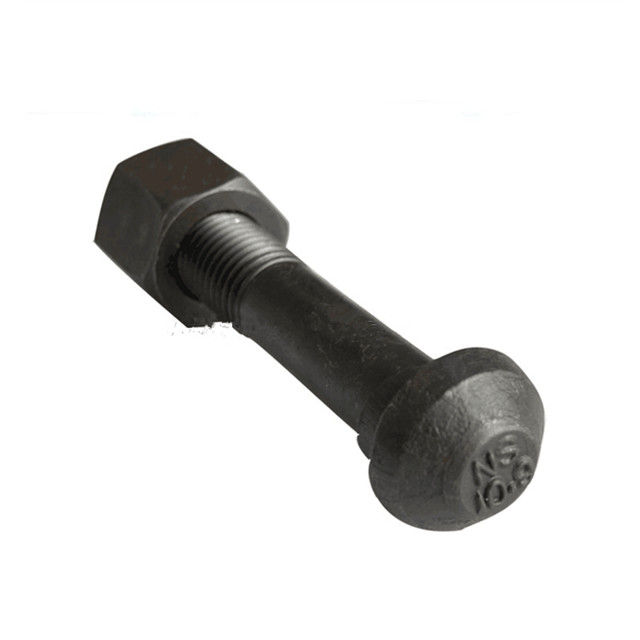

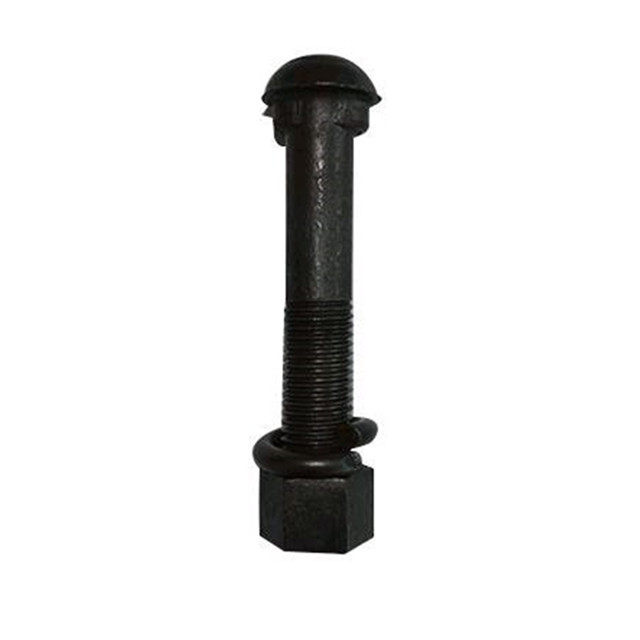

Round head oval neck fish bolts
| Diameter | 1/2" | 1/2" | 1/2" | 5/8 | 3/4 | 3/4 | 3/4 | 7/8 | 7/8 | 1 | 1 | 1 | 1-1/16 | 1-1/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | 1-3/4" | 2" | 2-1/4 | 2-1/2 | 3 | 3-1/2 | 4 | 4-1/2 | 5 | 5 | 5-1/2 | 6 | 6 | 6-1/2 |
| Weight (Kg) | 0.097 | 0.1 | 0.112 | 0.183 | 0.328 | 0.339 | 0.356 | 0.559 | 0.593 | 0.8 | 0.839 | 0.879 | 0.995 | 1.186 |
Diamond neck fish bolts
| Diameter | Length | Weight (Kg) |
|---|---|---|
| 7/8 | 4-1/2 | 0.563 |
| 7/8 | 5-1/2 | 0.651 |
| 1 | 5-1/4 | 0.889 |
| 1 | 5-3/4 | 0.895 |
| Note: All fish bolt dimensions given in inches. | ||
Russian standard fish bolts
| Russia scale fish bolt | Bolt Details |
|---|---|
| Size | 27x160 |
| Material | Tensile stress 381KN |
| Standard | GOST 11530 |
| Surface treatment | Plain oiled |
Square head fish bolts
| Square head fish bolt | Bolt Details |
|---|---|
| Size | M20, L as ordered |
| Grade | 4.6, 5.6 |
| Standard | DIN5903-2 Type B |
| Surface treatment | Zinc plated, hot dip galvanized |
Contact us
Please contact us for more information and quotes.
