Railroad Rail Track Spike Dia 4- 16 2.5mm-8mm with Black Phosphating
| Place of Origin | China |
|---|---|
| Brand Name | Kingrail |
| Certification | ISO |
| Model Number | Railway Spikes |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | standard export package, or as per customer request |
| Delivery Time | 1-30 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000000ton |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminium, Plastic, NICKEL, Nylon, Stainless Steel For Screw Spike | Standard | GB, DIN, ISO, ANSI, ASME, IFI, JIS |
|---|---|---|---|
| Application | Building, Furniture, Sanitary, Electronics, Traffic For Screw Spike | Surface Treatment | Phosphated(black,grey), Galvanized(bule,white,color), Ruspert, Dacromet Etc |
| Type Head | Pan, Flat, Truss, Hex Washer ,Wafer... | Sizes Dia | #4-#16 (2.5mm-8mm) |
| Name | Rail Fastening/ Track Spike/ Dog Spike Railroad Rail Sleeper Screw Spike With Round Thread | ||
| Highlight | China Railroad Rail Track Spike,Black Phosphating Railroad Rail Track Spike |
||
Product Description

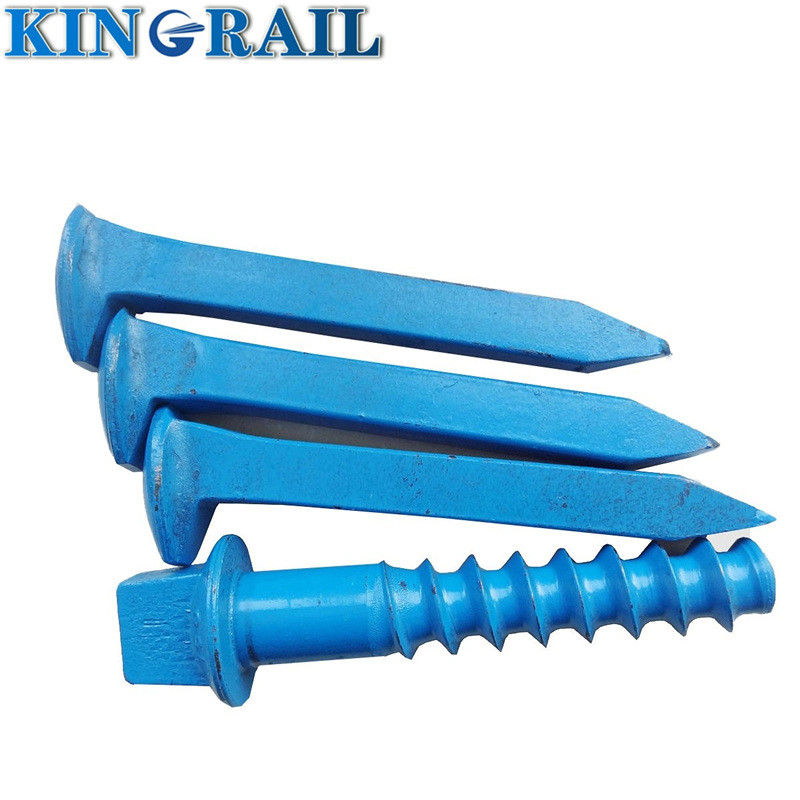

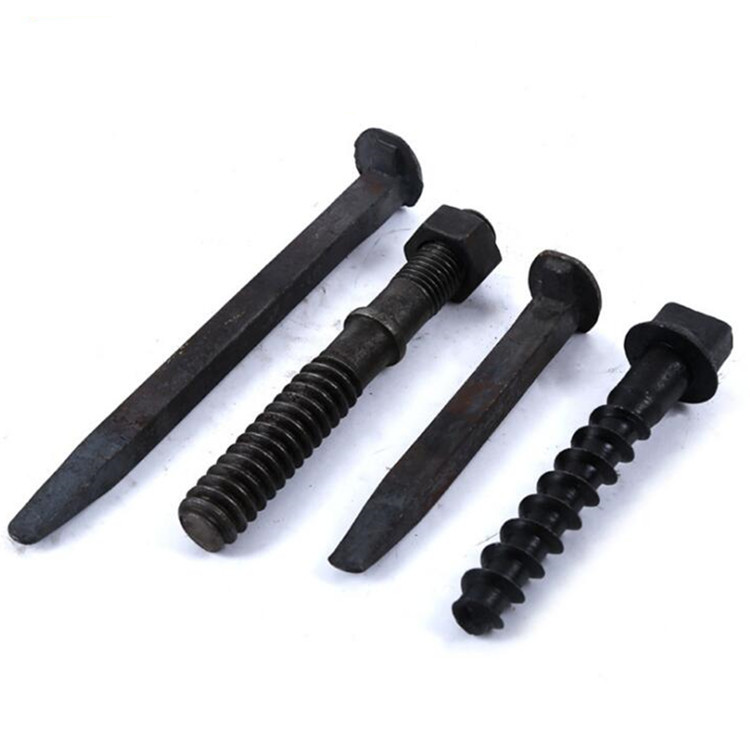

Railway spikes, also known as rail spikes. Railroad spikes are used to maintain the rail gauge between tracks and are also used to fix rails to railroad sleepers. Kinrail Parts can provide a variety of railway spikes, including dog spikes, screw spikes, etc.

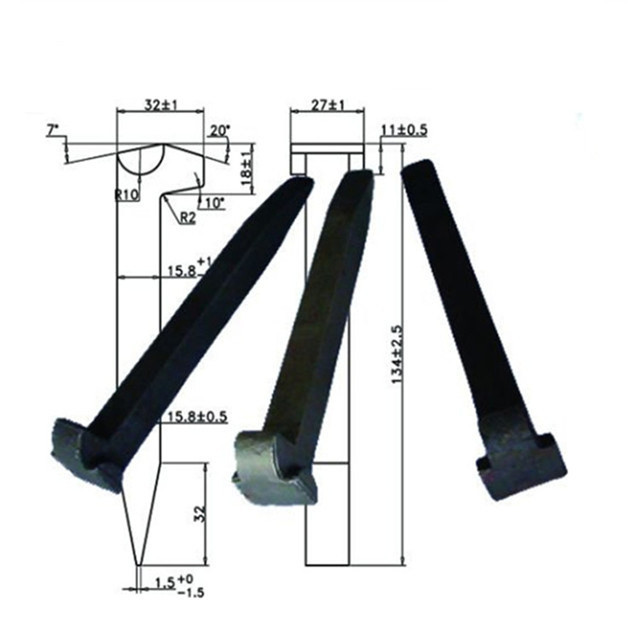

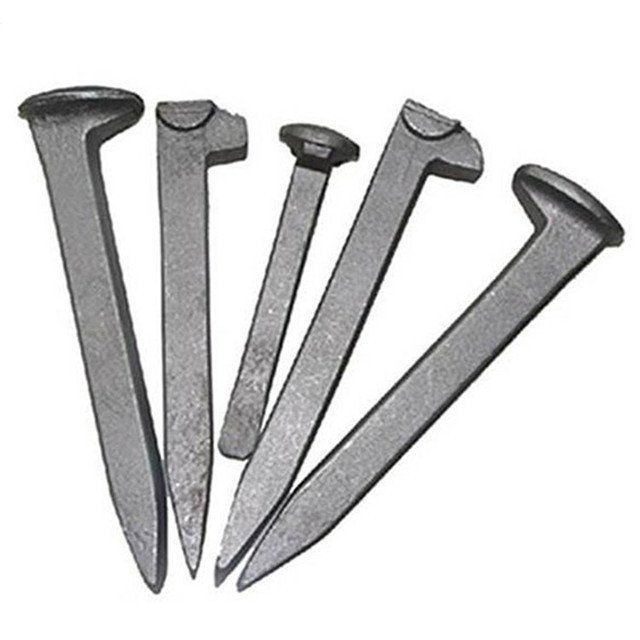

Dog spikes:
Dog spikes are used to fix T-shaped railway tracks to wooden sleepers. We can provide dog spikes of different lengths. The most commonly sold dog spikes are 5/8"*6" and 9/16"*5-1/2".
Specifications:
| Specification | Material | Surface | Standard |
| 5/8*6 '' | A3,Q235, 45#,55#, etc | According to customer needs. |
According to customer’s drawings or samples.
|
| 9/16*5-1/2 '' | |||
| 3/8''*3-1/2 '' | |||
| 1/2*3-1/2 | |||
| Other kinds |

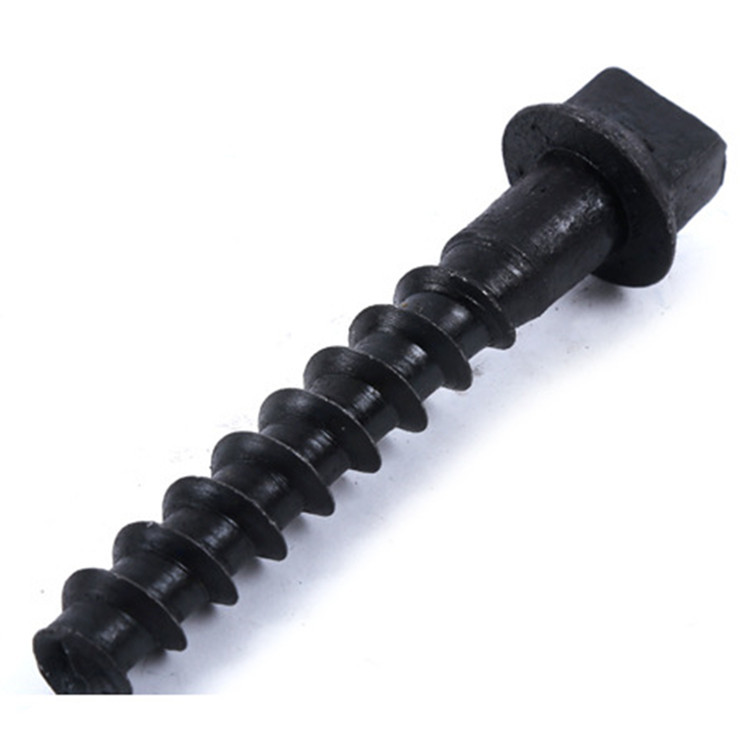

Screw Spikes
Railway screw spikes are usually used to fix railway sleepers or railroad ties, and can also be used with plastic ferrules and cast in concrete sleepers/railroad sleepers. We can provide screw spikes with different thread profiles, lengths, diameters and drive heads.
SS Series Sleeper Screws
| Type | Specification | Weight/kg | Surface | Standard |
| Ss 1/130 | M22*130 | 0.451 |
Natural
Zinc
Paint
Oil
According to your needs.
|
UIC
AREMA
GB
or
According to your drawings or samples.
|
| Ss 1/150 | M22*150 | 0.478 | ||
| Ss 2/180 | M22*150 | 0.595 | ||
| Ss 5/150 | M24*150 | 0.545 | ||
| Ss 6/150 | M26*150 | 0.702 | ||
| Ss 7/180 | M24*180 | 0.636 | ||
| Ss 8/140 | M24*140 | 0.528 | ||
| Ss 8/150 | M24*150 | 0.548 |
Square Head Screw Spikes
|
Type
|
Specification
|
Material | Surface |
Standard
|
| Square head screw spike | M22*145 |
45#
55Q
Q235
or
According to your needs.
|
Natural
Zinc
Paint
Oil
According to your needs.
|
UIC
AREMA
DIN
GB
or
According to your drawings or samples.
|
| M22*155 | ||||
| M22*165 | ||||
| M22*185 | ||||
| M22*195 | ||||
| Other kinds |
Hexagon screw spike
Hexagonal Screw Spikes include several different sizes, such as: M22*145, M22*155, M22*165, M22*185, M22*195, etc.
| Grade | 4.6 | 5 .6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical | Tensile strength: ≥ 400Mpa | Tensile strength: ≥ 500Mpa | Tensile strength: ≥ 800Mpa | Tensile strength: ≥ 1000Mpa |
| Yield strength: ≥ 240Mpa | Yield strength: ≥ 300Mpa | Yield strength: ≥ 640Mpa | Yield strength: ≥ 900Mpa | |
| Elongation: ≥ 22% | Elongation: ≥ 20% | Elongation: ≥ 12% | Elongation: ≥ 9% | |
| Cold bending: 90 degree | Cold bending: 90 degree | Cold bending: 90 degree | Cold bending: 90 degree | |
| without crack | without crack | without crack | without crack | |
| Surface | plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||

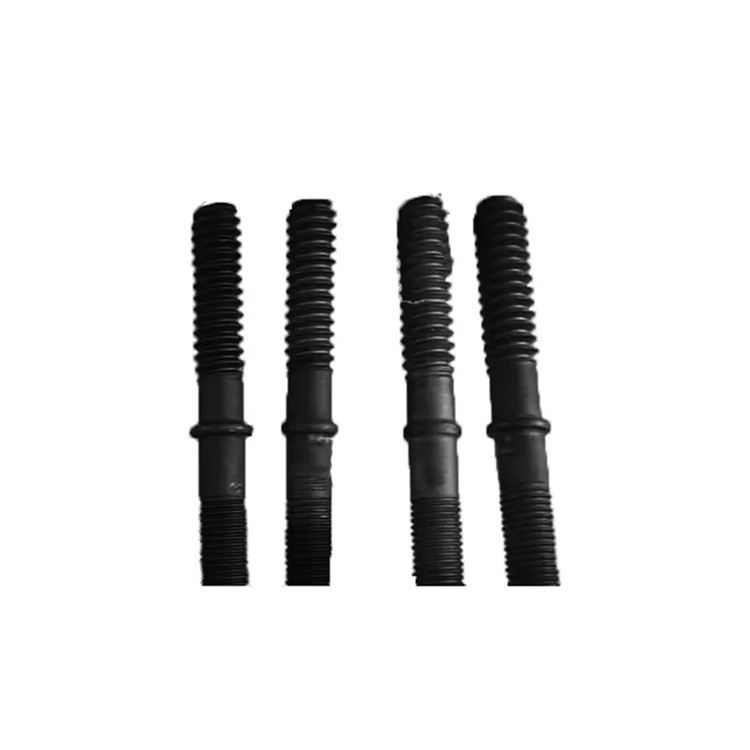

Double head screw spike
Specifications:
Size: 23×174
Grade: 4.6, 5.6, 8.8, 10.9
Raw Material: 35#
Raw Material: Q235, 35#, 45#
Surface Treatment: Ordinary (Oiled), Blued, Galvanized, Hot-dip Galvanized, etc.
Contact Us
Please contact us for more information and quotes.
