20t Load Cable Powered Electric Flat Car with Remote Control

Brand Name: Kingrail
Model Number: KPT-20
MOQ: 1
Price: 1000-100000
Delivery Time: 10-80 WORKING DAYS
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Track Gauge:
1435mm,1067mm,1000mm、762mm、600mm,1524mm、1520mm
Load:
50 Ton,60 Ton,70 Ton
Speed:
Less Than 120 Km/h
Bogie Type:
Welded Bogie
Packaging Details:
standard export PACKAGE
Supply Ability:
50PCS/MONTH
Highlight:

Remote Control Electric Flat Car

,

20t Electric Flat Car

,

Cable Powered Electric Flat Car

Product Description

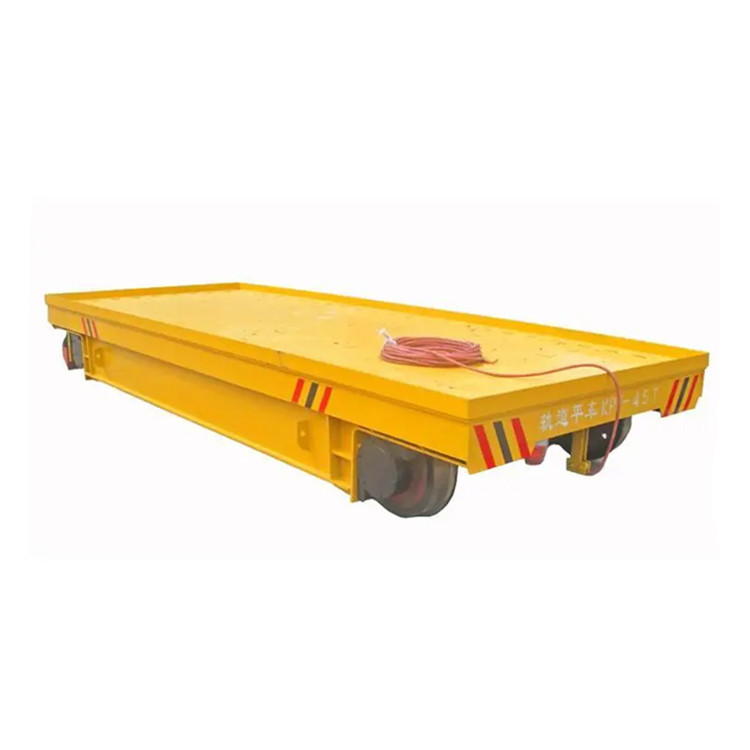

The KR-20 electric flat car we produce is mainly used for rail transport of goods in industrial and mining enterprises. Its reliable performance, smooth operation, compact structure and beautiful appearance are ideal for rail transport of materials in enterprises.



Specifications:

Application Handle in-plant materials or equipment by rail track
Load 20t
Tare weight 16t
Rail gauge 1435mm(or customized gauge)
Rail type 50kg/m(or customized rails)
Flat vehicle’s dimensions 12000mm×2000mm×650mm
Running speed ≤10km/h(loaded); ≤20km/h(empty)
Power supply 380V50Hz AC power supply (three-phase five wire) with elastic cable drum on the vehicle
Cable length 100m
Driving motor YZR180L,11Kw, 700r/min
Brake method Electromagnetic braking
Operate method Operation panel and remote control



Features:

1. The railway vehicle is driven by an AC motor and powered by a three-phase AC power supply, which is safe and reliable.

2. The flat car can be remotely controlled and is easy to operate.



Get more information

Please contact us for more information and quotes.

20t Load Cable Powered Electric Flat Car with Remote Control 0

20t Load Cable Powered Electric Flat Car with Remote Control 1

20t Load Cable Powered Electric Flat Car with Remote Control 2

20t Load Cable Powered Electric Flat Car with Remote Control 3
