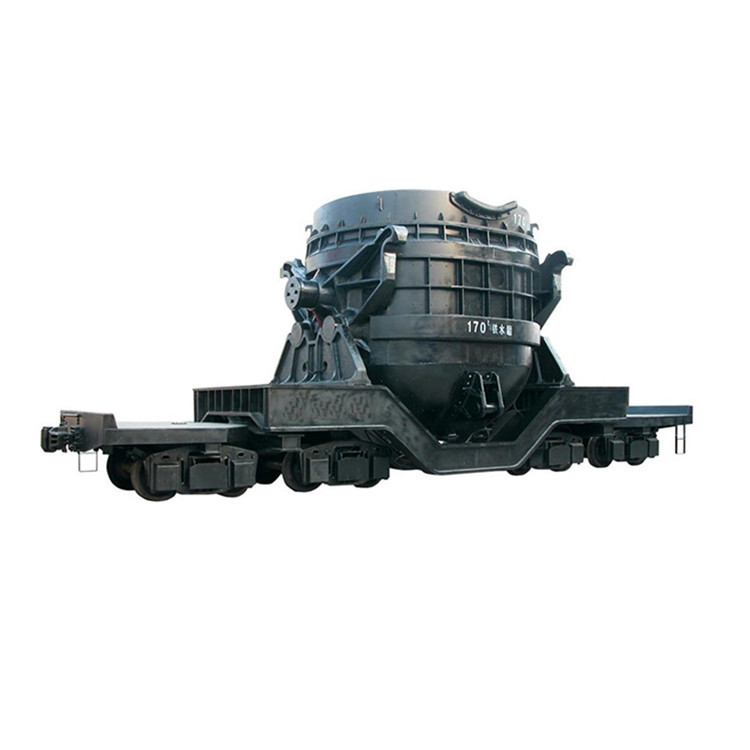

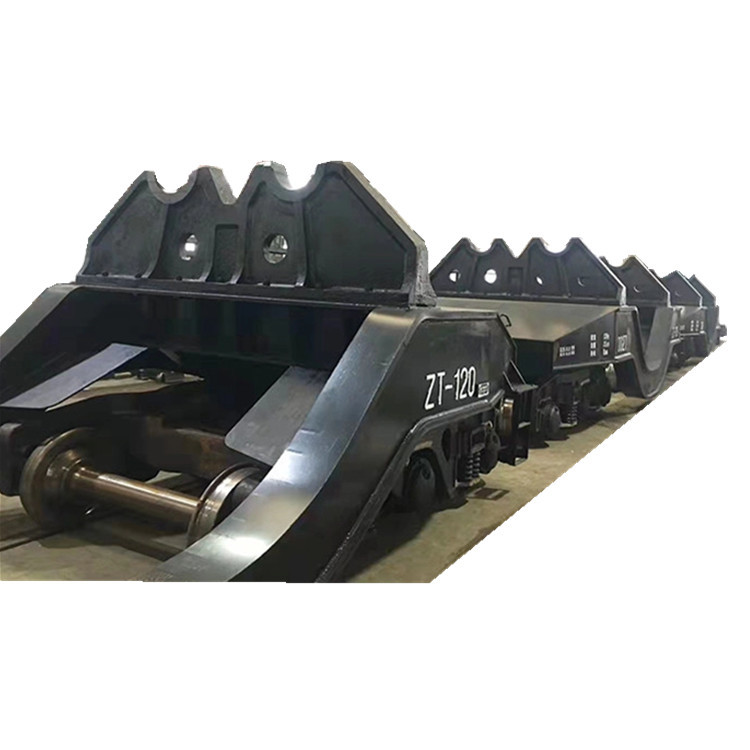

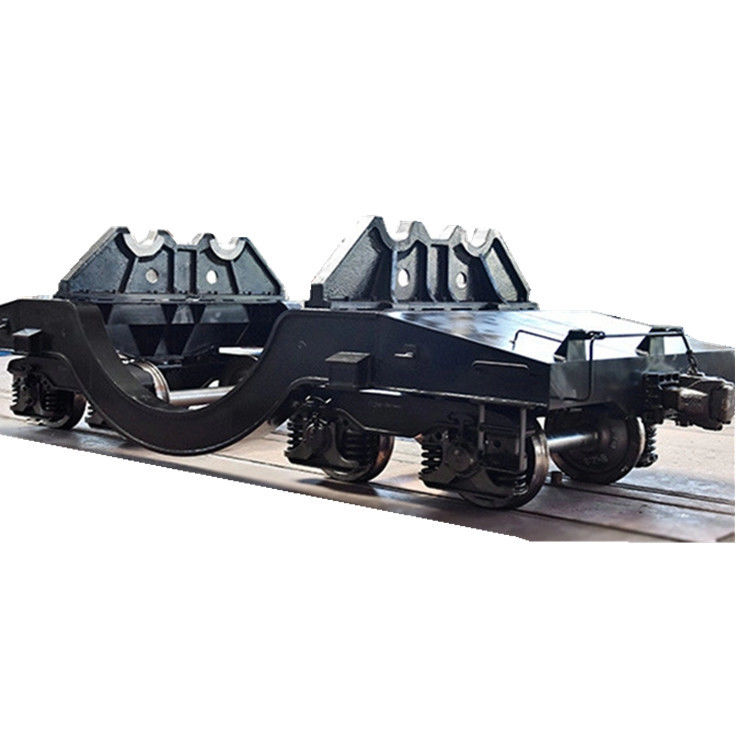

100T Railway Hot Metal Ladle Transfer Car for Steel Mill

Brand Name: Kingrail
Model Number: ZT
MOQ: 1
Price: 1000-100000
Delivery Time: 10-80 WORKING DAYS
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Track Gauge:
1435mm,1067mm,1000mm、762mm、600mm,1524mm、1520mm
Load:
50 Ton,60 Ton,70 Ton
Speed:
Less Than 120 Km/h
Bogie Type:
Welded Bogie
Packaging Details:
standard export PACKAGE
Supply Ability:
50PCS/MONTH
Highlight:

Railway Hot Metal Ladle Transfer Car

,

Hot Metal Ladle Transfer Car

,

50 Ton Load Ladle Transfer Car

Product Description

The 100t Railway Hot Metal Ladle Transfer Car we produce is specially designed for railway transportation of 100t ladles. This transport car is a low-speed hot metal transfer car with the characteristics of simple structure, small size, low cost, small radius, easy operation, etc. It is widely used in the steelmaking industry.



We can also customize the hot metal ladle transfer car according to your specifications and requirements.



Specifications:

Application Transfer 100 tons hot metal ladle for steel making factory
Load 100t
Tare weight 25.0t
Axle load 45t
Min radius 75m
Commercial running speed 20km/h
Wagon length 8336mm
Wagon’s max. width 3600mm
Wagon’s max. height 4200mm
Coupler center’s height 880mm
The clearance between the supporting shaft and the ladle seat 10-15mm
The lowest part of the curved beam when full loaded 90mm



Get more help

Please contact us for more information and quotation.

100T Railway Hot Metal Ladle Transfer Car for Steel Mill 0

100T Railway Hot Metal Ladle Transfer Car for Steel Mill 1

100T Railway Hot Metal Ladle Transfer Car for Steel Mill 2

100T Railway Hot Metal Ladle Transfer Car for Steel Mill 3

Tags:

Railway Hot Metal Ladle Transfer Car

38T Railway Freight Wagon

Hot Metal Ladle Transfer Car

Related Products
8T 10T 12T Railway Freight Wagon with Hydraulic Car Crane Video

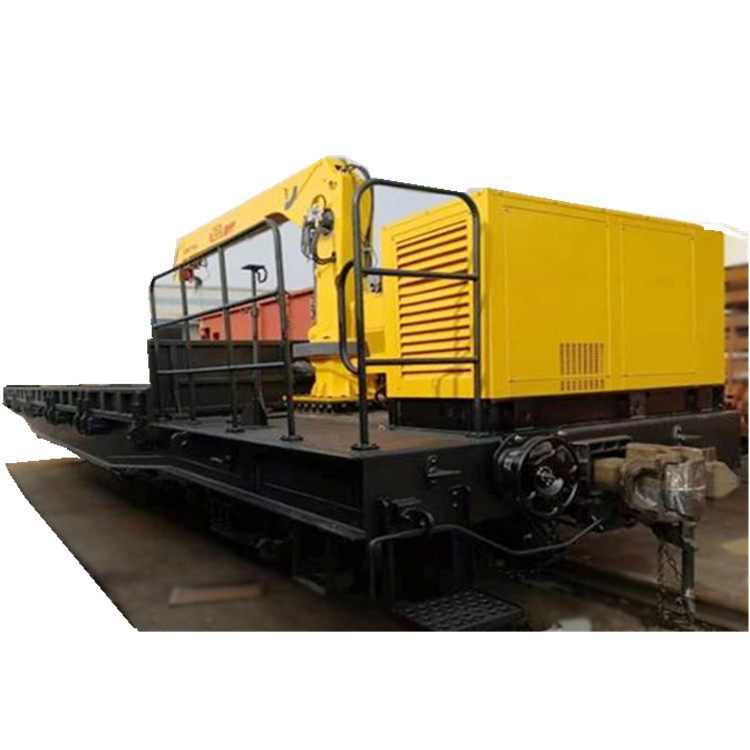

8T 10T 12T Railway Freight Wagon with Hydraulic Car Crane

Get Best Price
38T Railway Freight Wagon Rail Car for Concrete Mixer Video

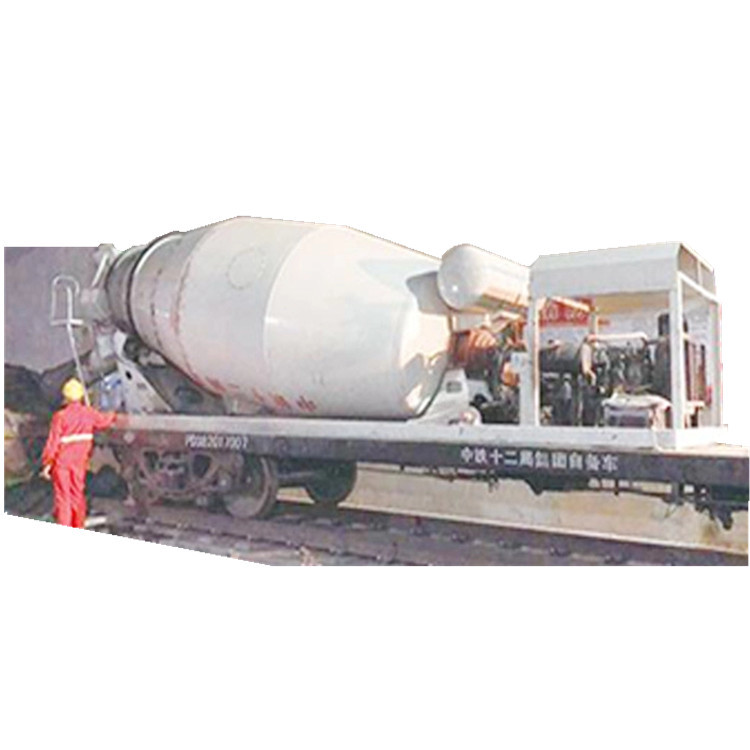

38T Railway Freight Wagon Rail Car for Concrete Mixer
