xProduct Details
| Track Gauge | 1435mm,1067mm,1000mm、762mm、600mm,1524mm、1520mm | Load | 50 Ton,60 Ton,70 Ton |
|---|---|---|---|
| Speed | Less Than 120 Km/h | Bogie Type | Welded Bogie |
| Highlight | 12T Railway Freight Wagon,8T Railway Freight Wagon,10T Railway Freight Wagon |
||
Product Description

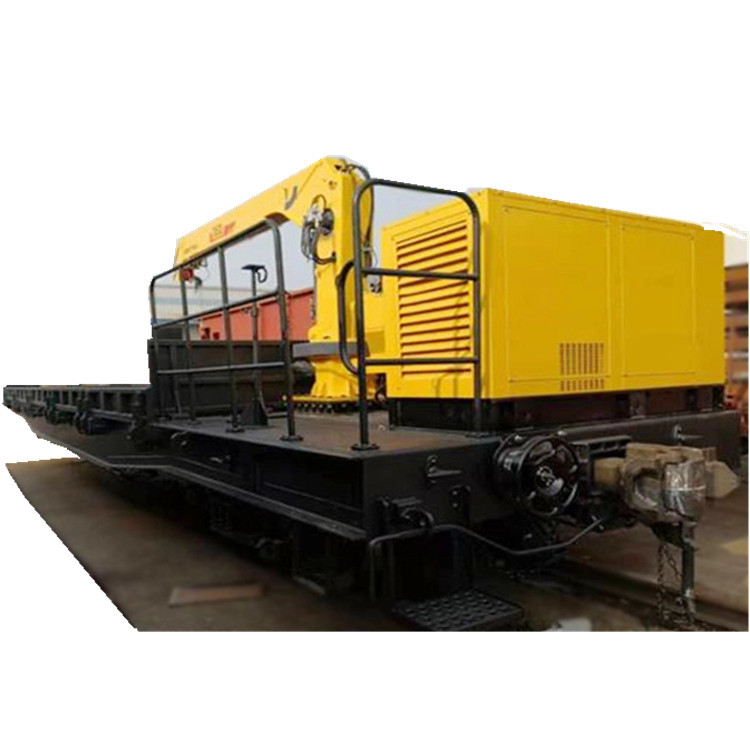

Our KR40 hydraulic crane flatbed truck is designed for customers to lift and transfer construction materials (such as rails, sleepers or equipment) during railway construction. It has a load capacity of 40 tons and can be equipped with an 8-ton, 10-ton or 12-ton onboard hydraulic crane.
We can also develop other track construction and maintenance vehicles according to customer's special needs.
Specifications:
| Application | Lift and transfer railway building materials or equipment for railway construction |
| Load of flat car | 40T |
| Tare weight | 19T |
| Cranes options | 8t,10t,12t |
| Rail gauge | 1435mm |
| Flat car dimension | 13000mm×2750mm(Length, width) |
| Steel floor height | 1150mm |
| Side plate height | Side plate:420mm ; end plate:270mm |
| Coupler center height | 880±10mm |
| Min radius | 100m |
| Structural speed | 120km/h |
| Brake method | Air brake and hand brake |
| Coupler type | No.2 Coupler |
| Bogie type | Welding bogie |
| Wheel diameter | 840mm |
Contact Us
Please contact us for more information and quotation.
