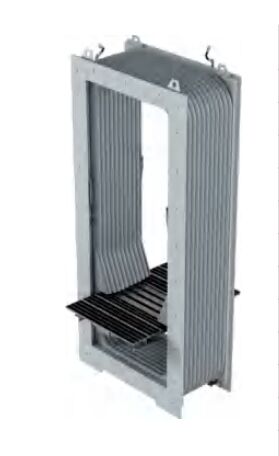

Gangway for High-Speed Train (Standard 250 / 350)

Gangway for High-Speed Train (Standard 250 / 350)

Detail Information

Product Description

Detail Information

Width:

Approximately 2.8-3.5 Meters

Weight:

Varies, Typically 30-200 Tons

Height:

Approximately 3.5-4.5 Meters

Safety Features:

Crashworthiness, Fire Resistance, Emergency Brakes

Control System:

Manual, Semi-automatic, Fully Automatic

Bogie:

K2,K6,K5,K1,K3,K4,ETC

Coupler Type:

No.2 Coupler

Compliance Standards:

UIC, AAR, EN, ISO

Capacity:

Varies By Model, Typically 50-1000 Passengers Or Tons Of Freight

Braking System:

Air Brakes, Dynamic Brakes, Electromagnetic Brakes

Coupling System:

Automatic, Semi-automatic, Manual

Wagon Length:

8336mm

Tare Weight:

25.0t

Bogie Type:

Welded Bogie

Speed:

Less Than 120 Km/h

Highlight:

high-speed train gangway

standard 250 gangway for trains

350 series railway vehicle gangway

Product Description

Product Overview

The High-Speed Train Gangway is specifically designed for standard high-speed rail vehicles operating at 250 km/h and 350 km/h. It features an integrated olive-shaped folding bellow structure combined with inlaid treading and transition plates, ensuring excellent airtightness, ride comfort, and operational safety under high-speed conditions.

Technical Specifications

Item	Description
Train Type	Standard high-speed train (250 km/h, 350 km/h)
Structure	Integrated olive-shaped folding bellow + inlaid treading and transition plate

Performance Data

Parameter	Specification
Curve Passing Capacity	R180 m and S curve
Pass Size	850 mm
Vehicle End Distance	650 mm
Fire Resistance	EN45545 / BS6853 / DIN5510 (optional)
Sound Insulation Value	≥ 38 dB
Thermal Insulation Value	K ≤ 3.0 W/(m²·K)
Waterproof Performance	No leakage, according to IEC 61133
Airtight Performance	Pressure difference from 4000 Pa to 1000 Pa, lasting 100 seconds
Support Mode	Self-support
Maximum Operating Speed	350 km/h

Application Projects

This high-speed train gangway has been successfully applied in:

CR300 High-Speed Train
CR400 High-Speed Train
CRH350 High-Speed Train
